Inspection Procedure J-6

Headlight, taillight: Headlight dimmer switch automatic resetting function does not work normally.

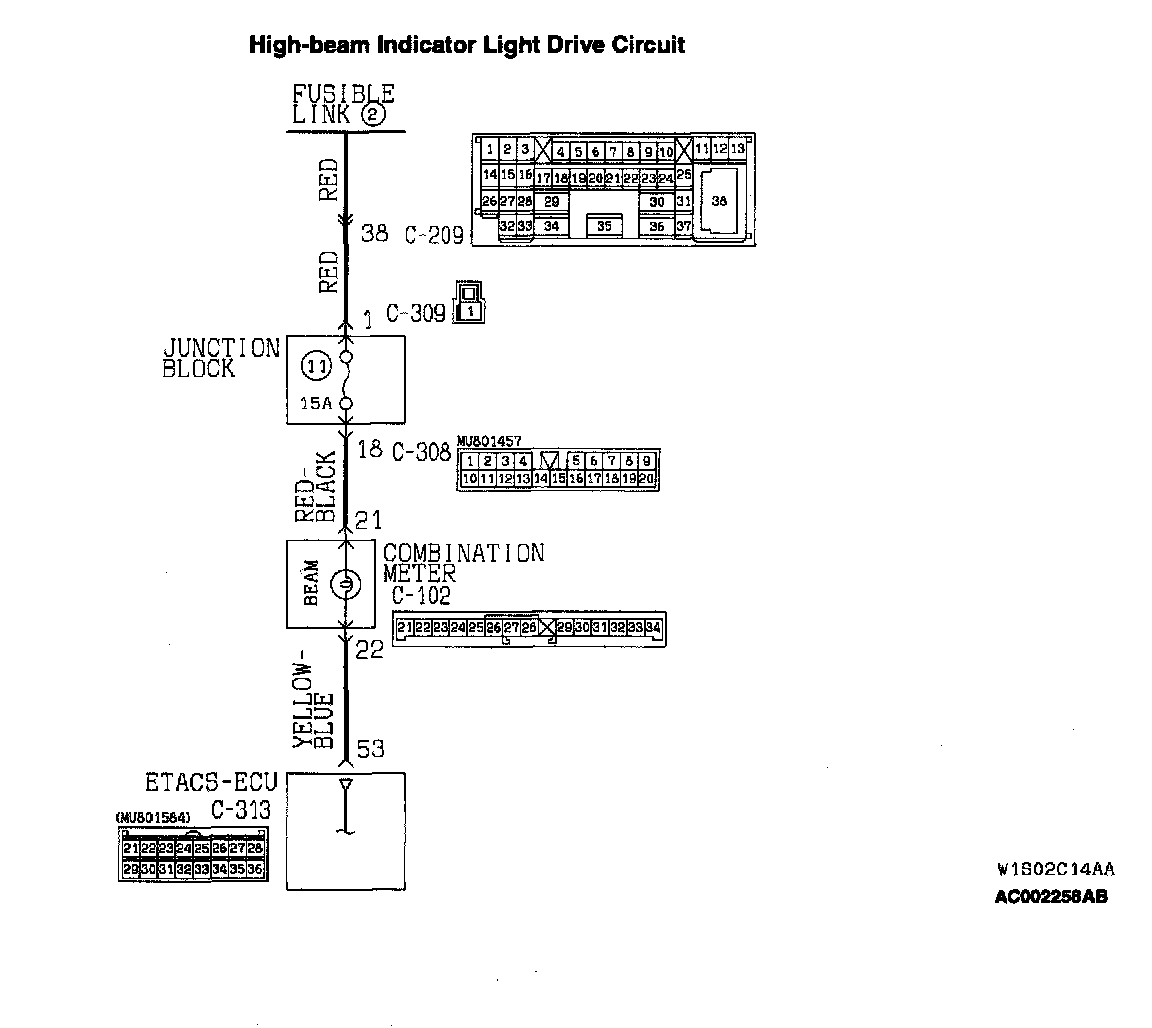

High-Beam Indicator Light Drive Circuit:

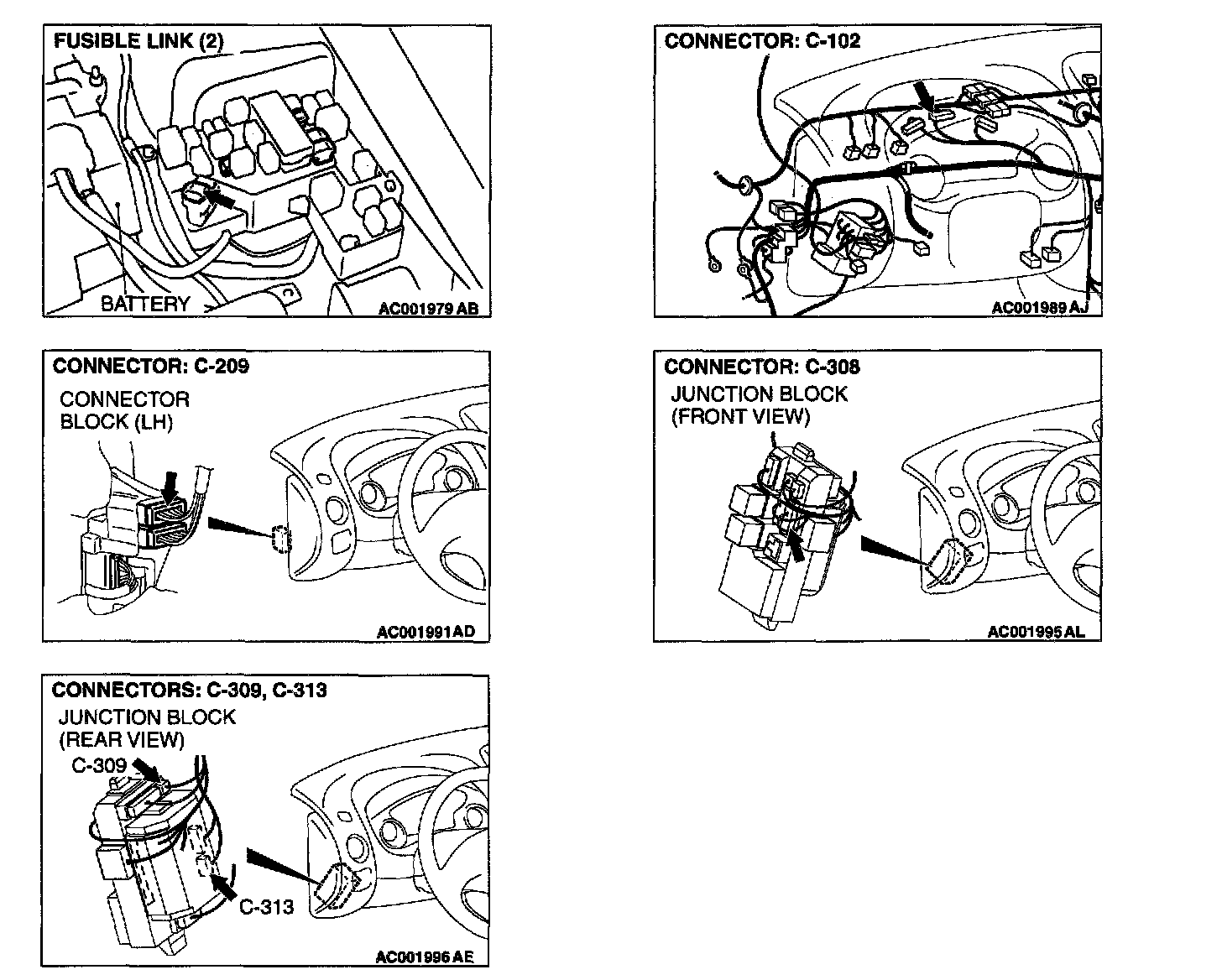

Connectors:

TECHNICAL DESCRIPTION (COMMENT)
The headlight dimmer switch automatic resetting function is controlled by the front-ECU. If a defect appears, the front-ECU may be defective.

TROUBLESHOOTING HINT
Malfunction of the front-ECU

DIAGNOSIS
Replace the front-ECU.

The headlight dimmer switch automatic resetting function should work normally.
