Sunroof Motor Assembly

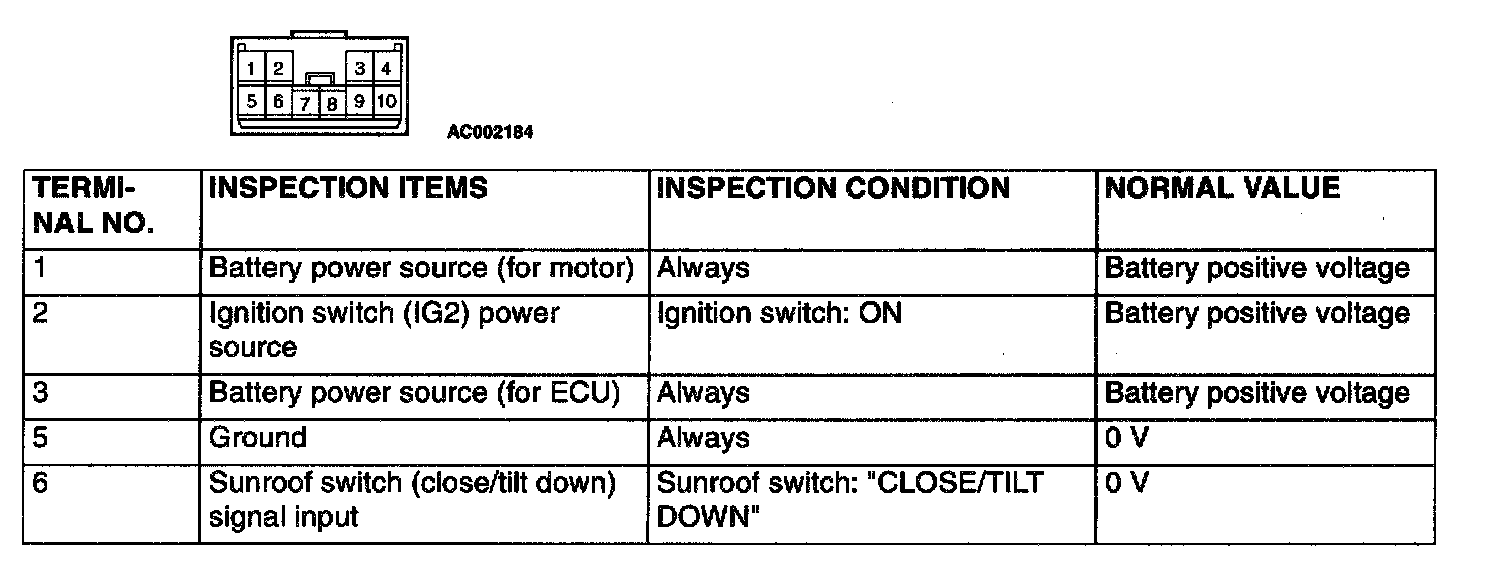

Sunroof Motor Assembly Terminal No: 1 - 6:

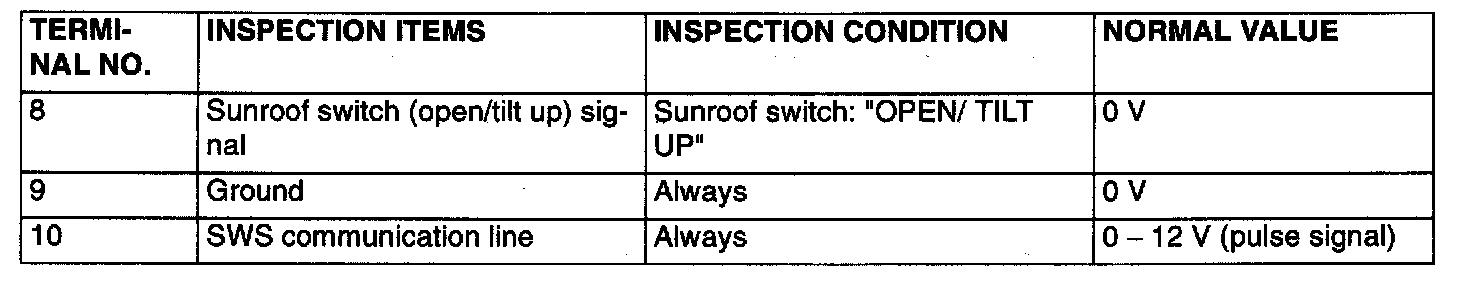

Sunroof Motor Assembly Terminal No: 8 - 10:
