Check at ECU Terminal
>>
ETACS-ECU
ETACS-ECU

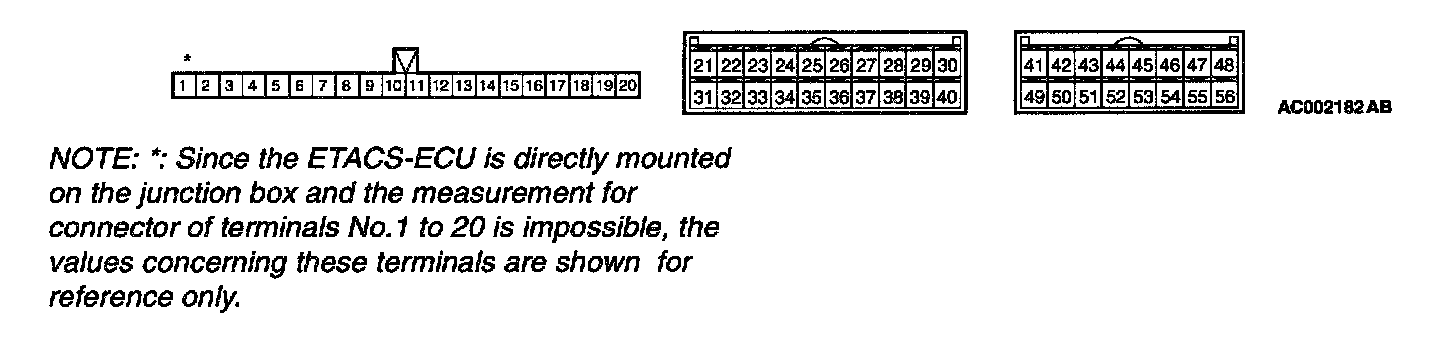

ETACS-ECU Terminal Arrangement:
ETACS-ECU Terminal No: 1 - 28:

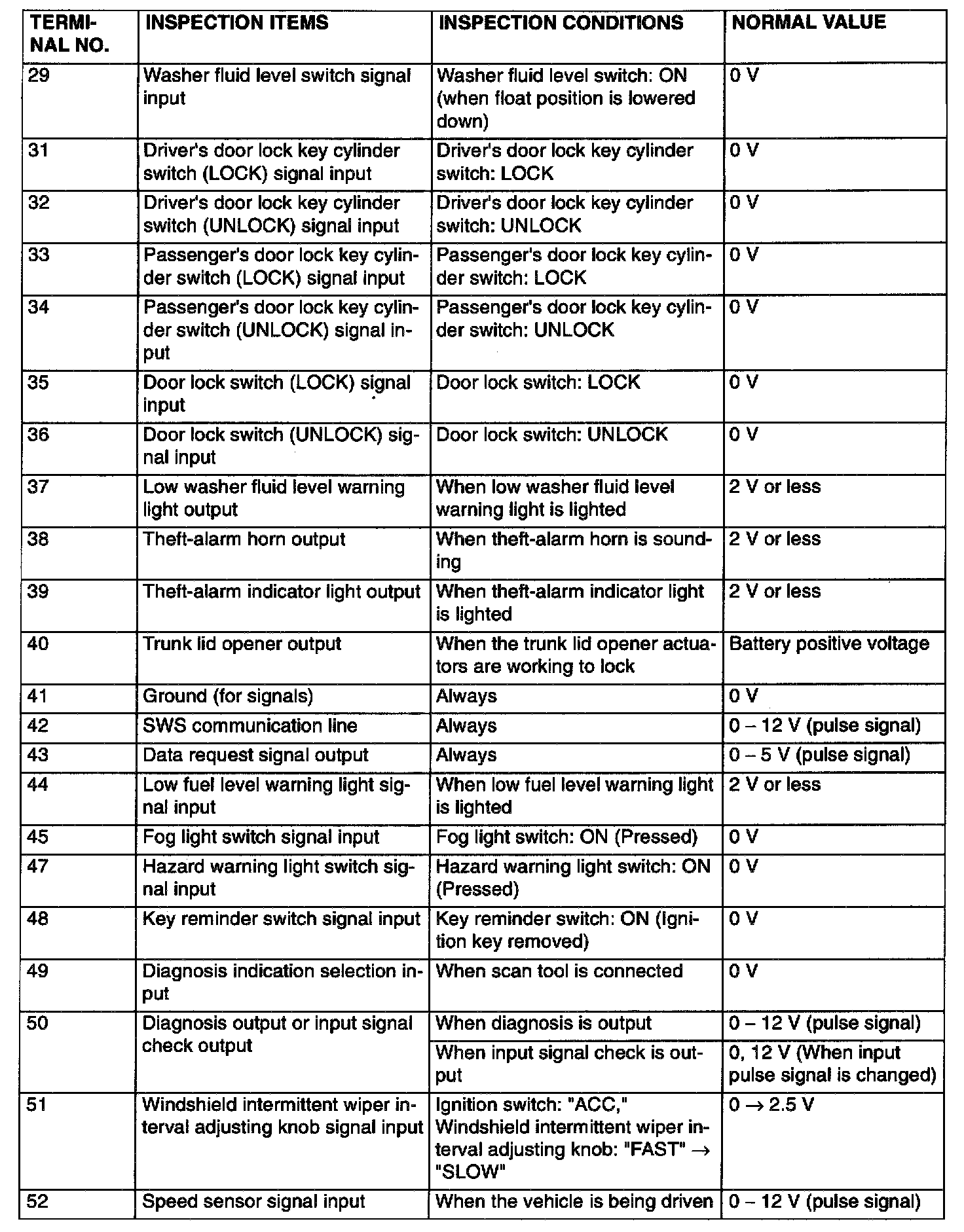

ETACS-ECU Terminal No 29 - 52:

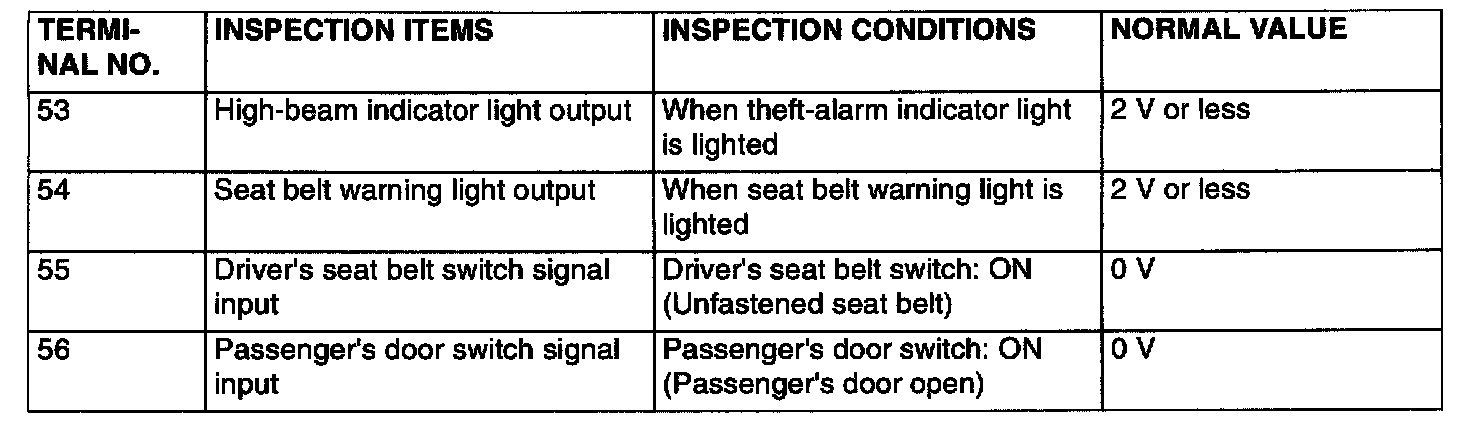

ETACS-ECU Terminal No: 53 - 56:
