Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Locations >> Fuse and Fusible Link Locations >> Centralized Junction >> Multi-Purpose Fuse

Multi-Purpose Fuse

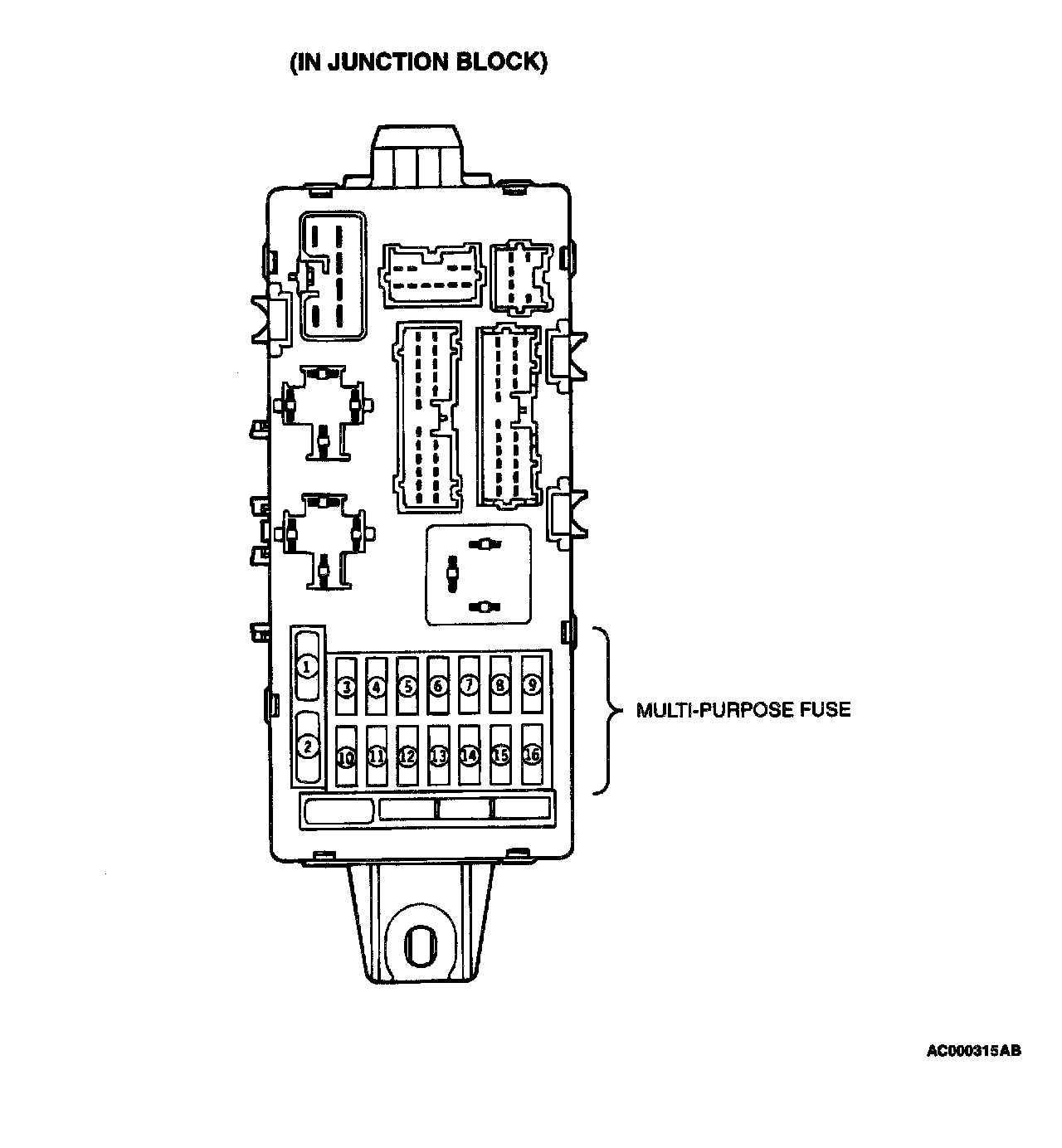

Multi-Purpose Fuse Location Index:

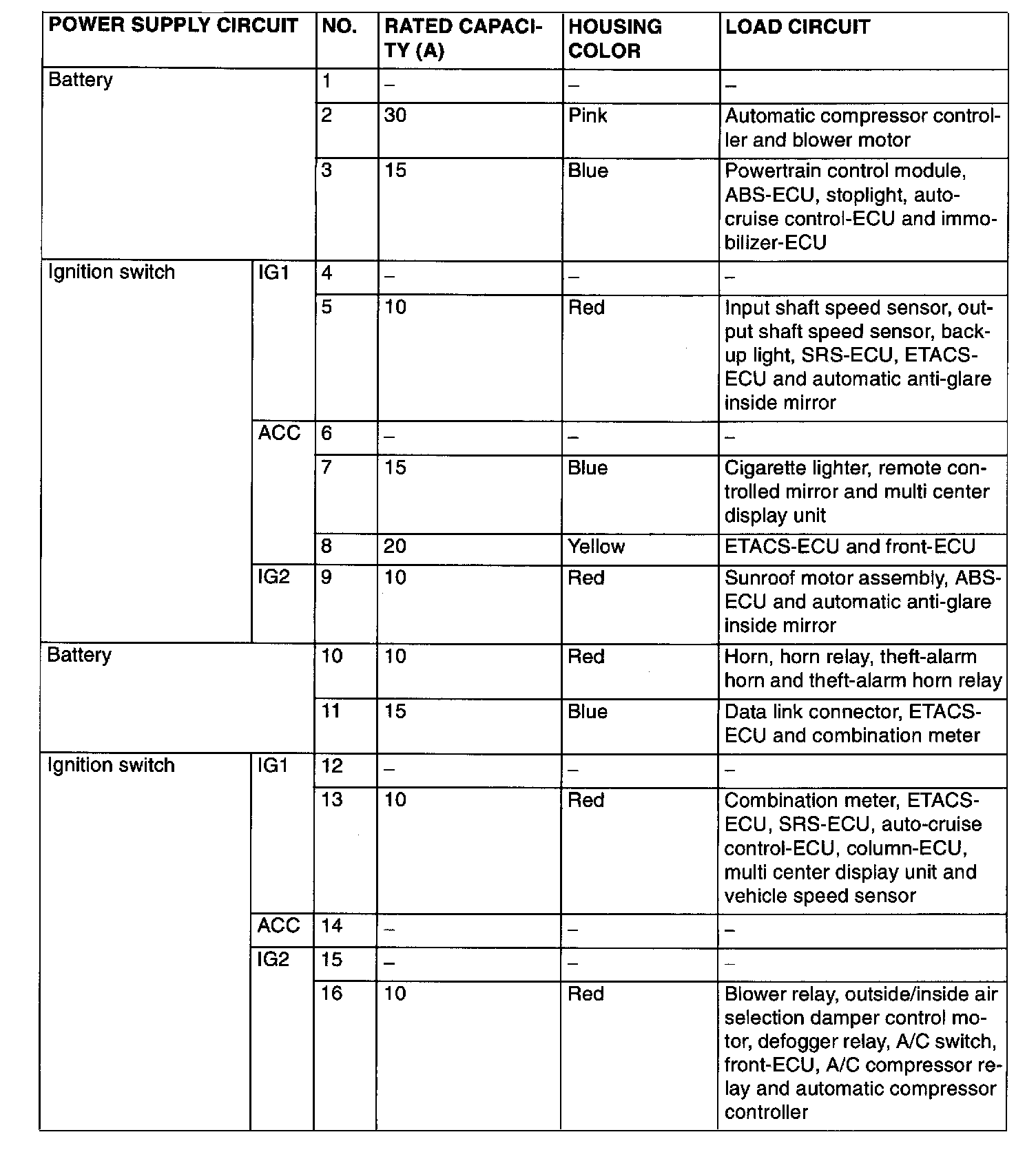

Multi-Purpose Fuses 1 - 16 (In Junction Block):
