Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Service and Repair

Headlamp: Service and Repair

Removal And Installation:






REMOVAL SERVICE POINT

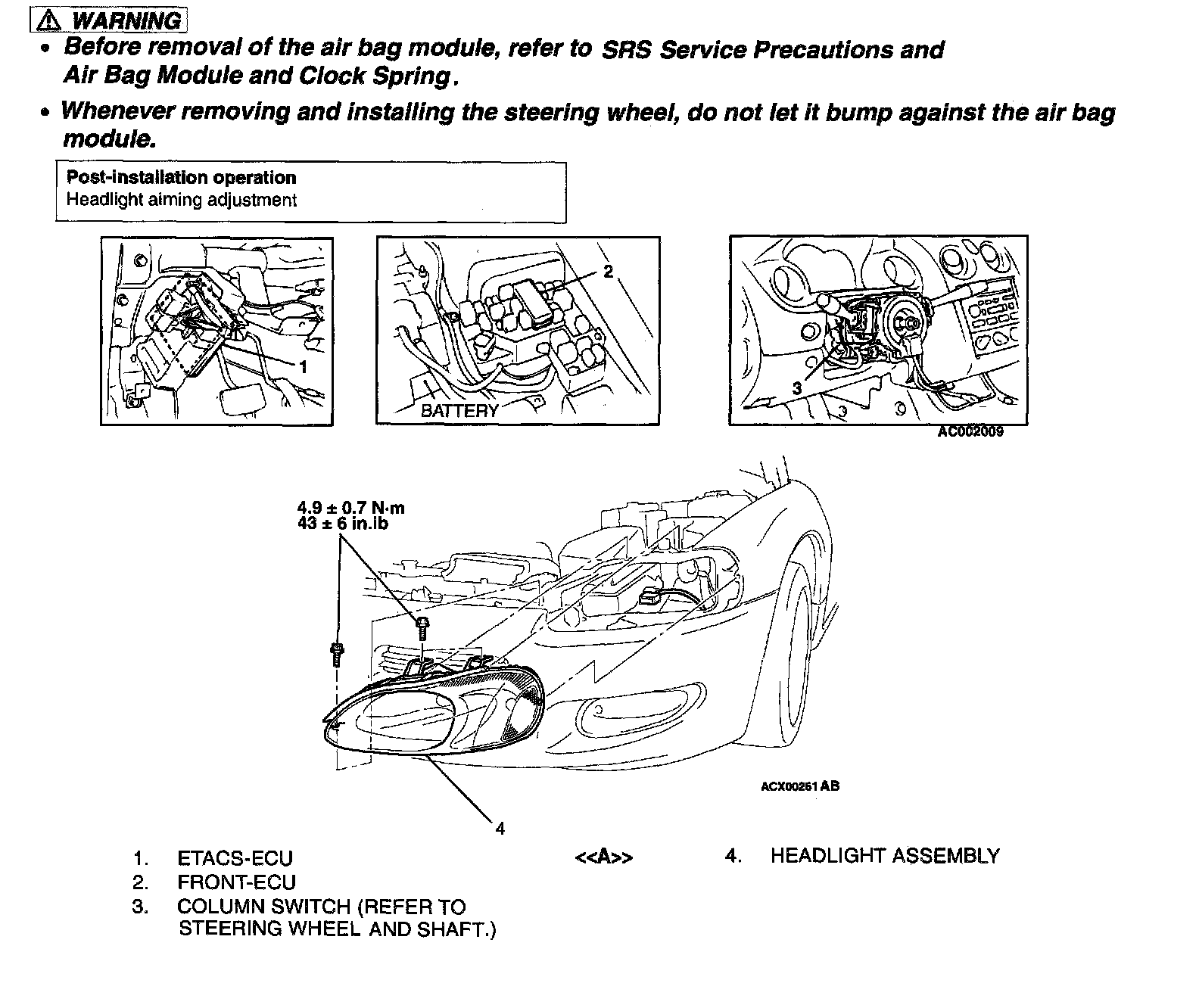

<>HEADLIGHT ASSEMBLY REMOVAL

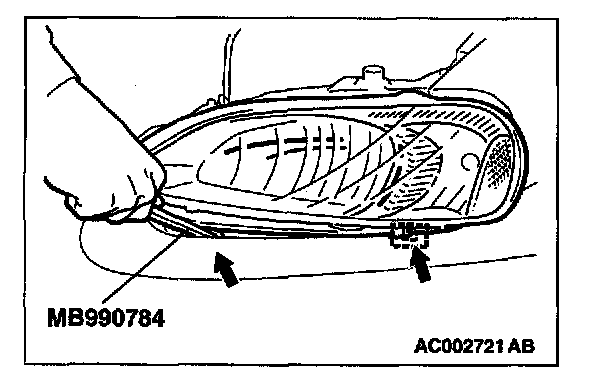

Insert special tool MB990784 to the place shown in the illustration. While lifting headlight, remove it.
