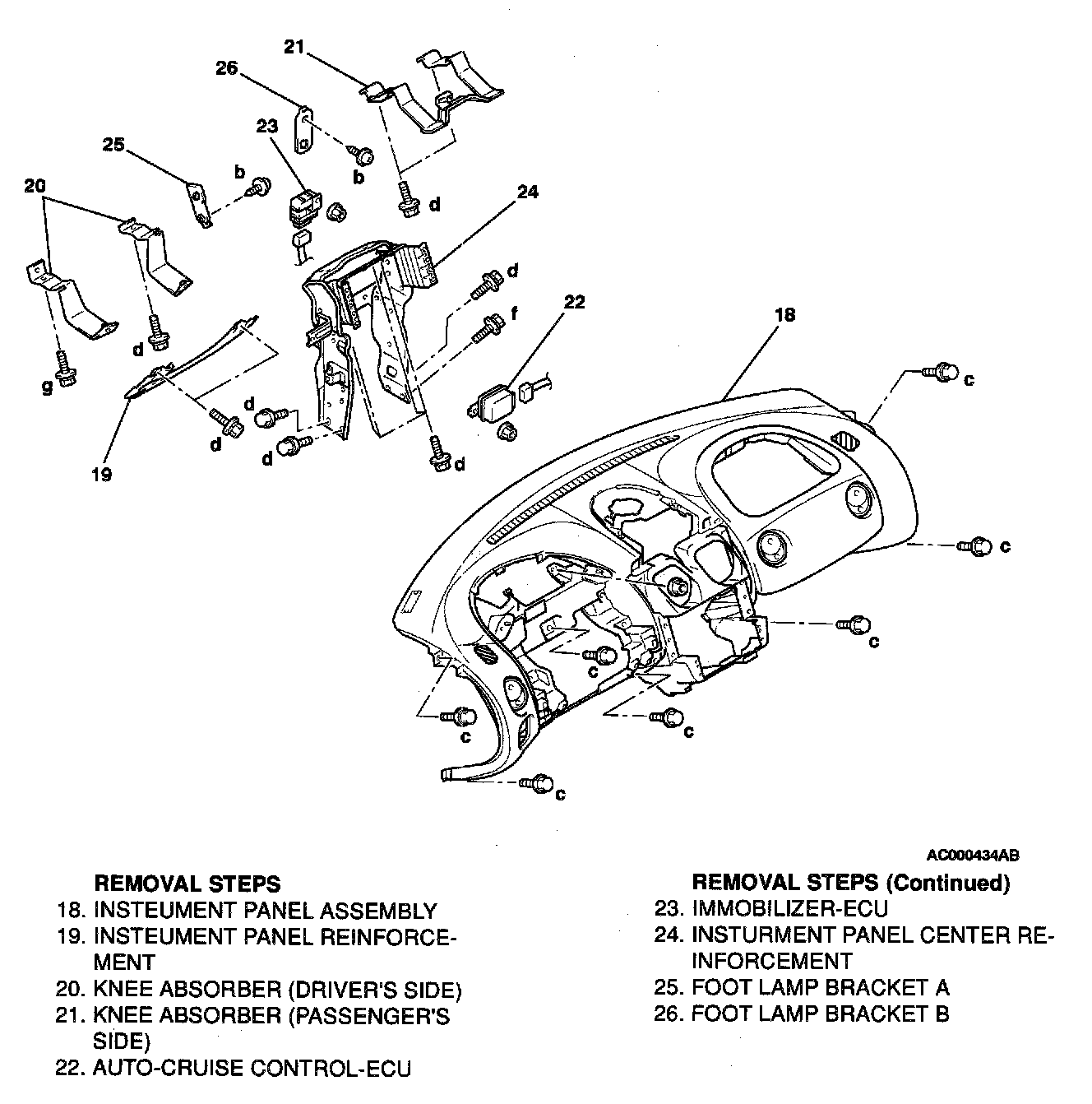

Instrument Panel Assembly

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in Air Bag Module and Clock Spring

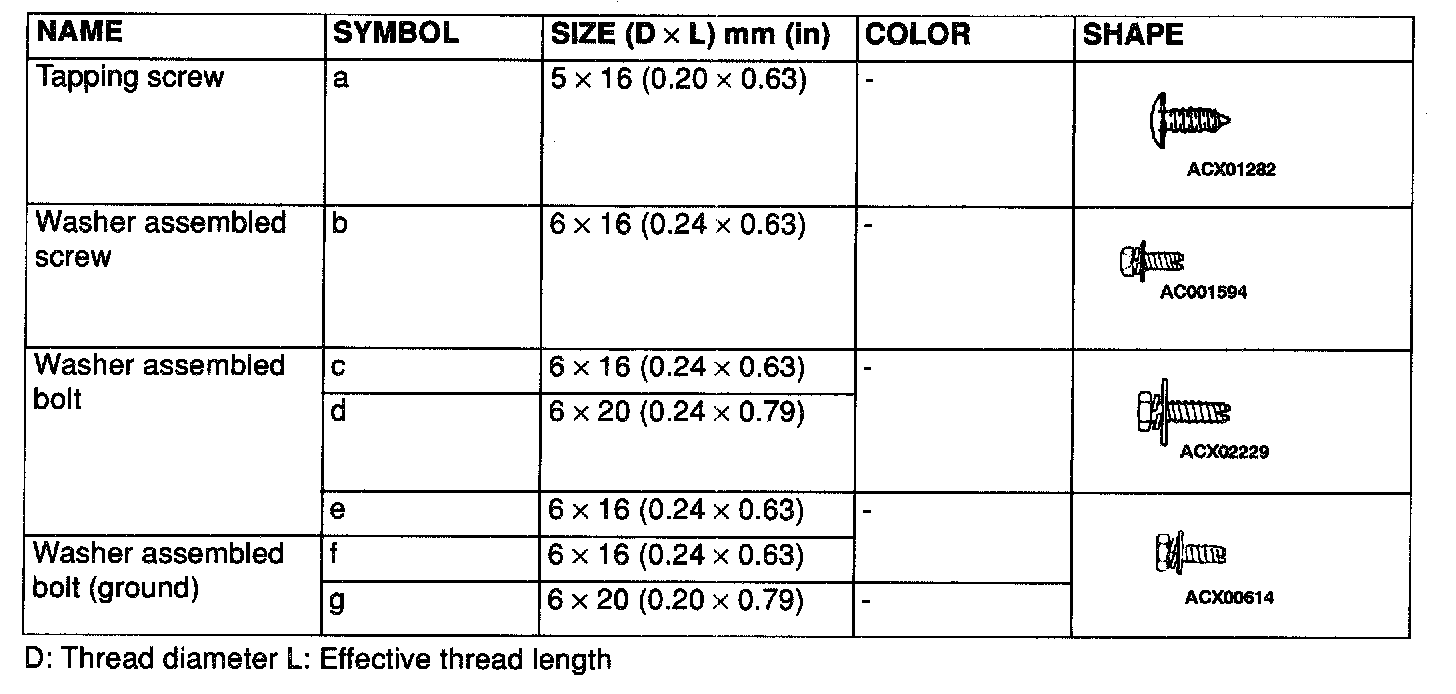

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols.
