Exhaust Pipe: Service and Repair

BN=#:




�k=#:

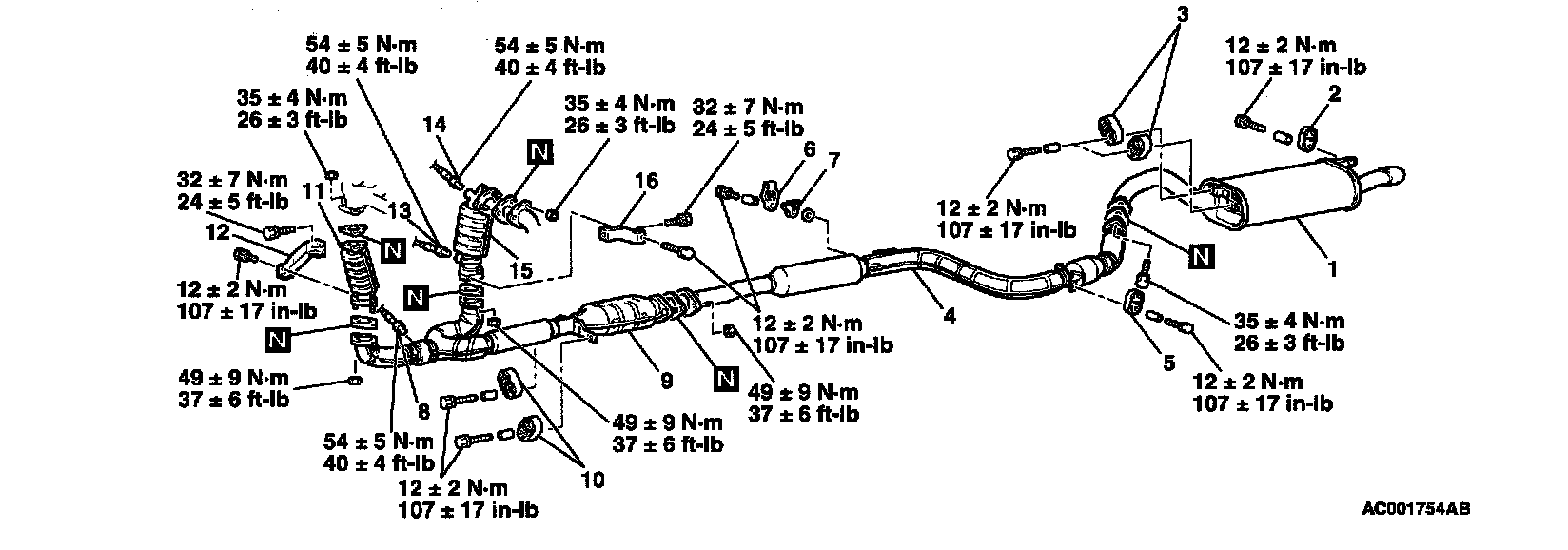

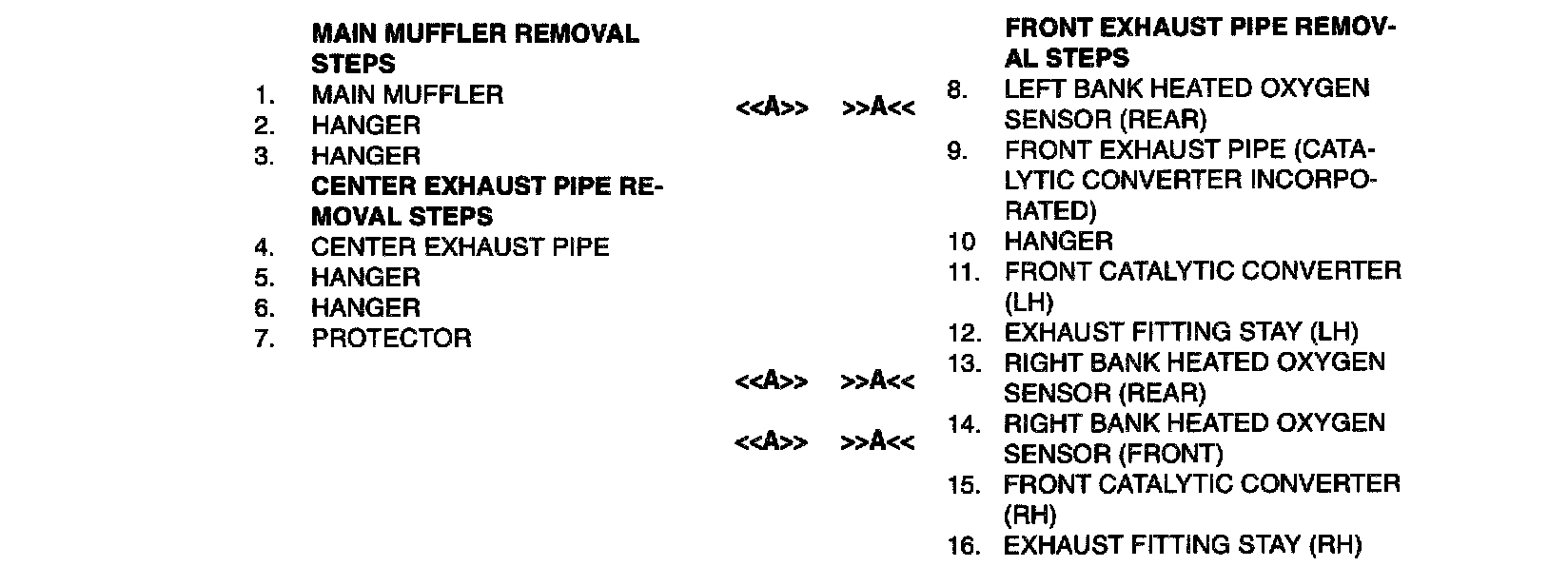

REMOVAL AND INSTALLATION

Removal Service Point
<> Left Bank Heated Oxygen Sensor (Rear)/ Right Bank Heated Oxygen Sensor (Rear)/Right Bank Heated Oxygen Sensor (Front) Removal

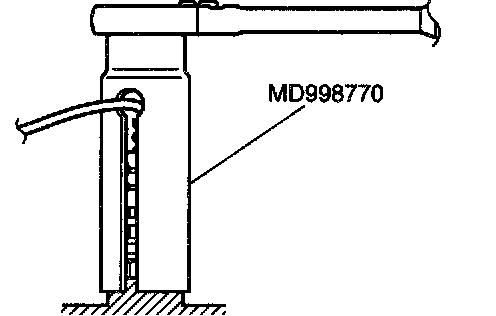

Use special tool MD998770 to remove the oxygen sensor.

Installation Service Point
>>A<< Right Bank Heated Oxygen Sensor (Front)/ Right Bank Heated Oxygen Sensor (Rear)/Left Bank Heated Oxygen Sensor (Rear) Installation

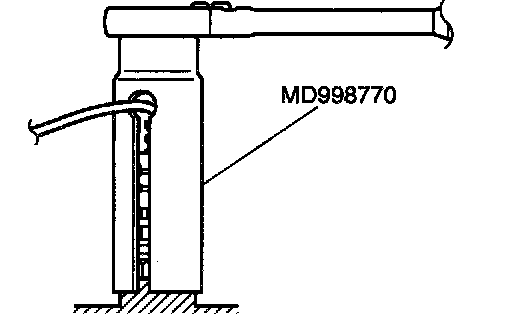

Use special tool MD998770 to installation the oxygen sensor.
