Power Plant Mount Specifications

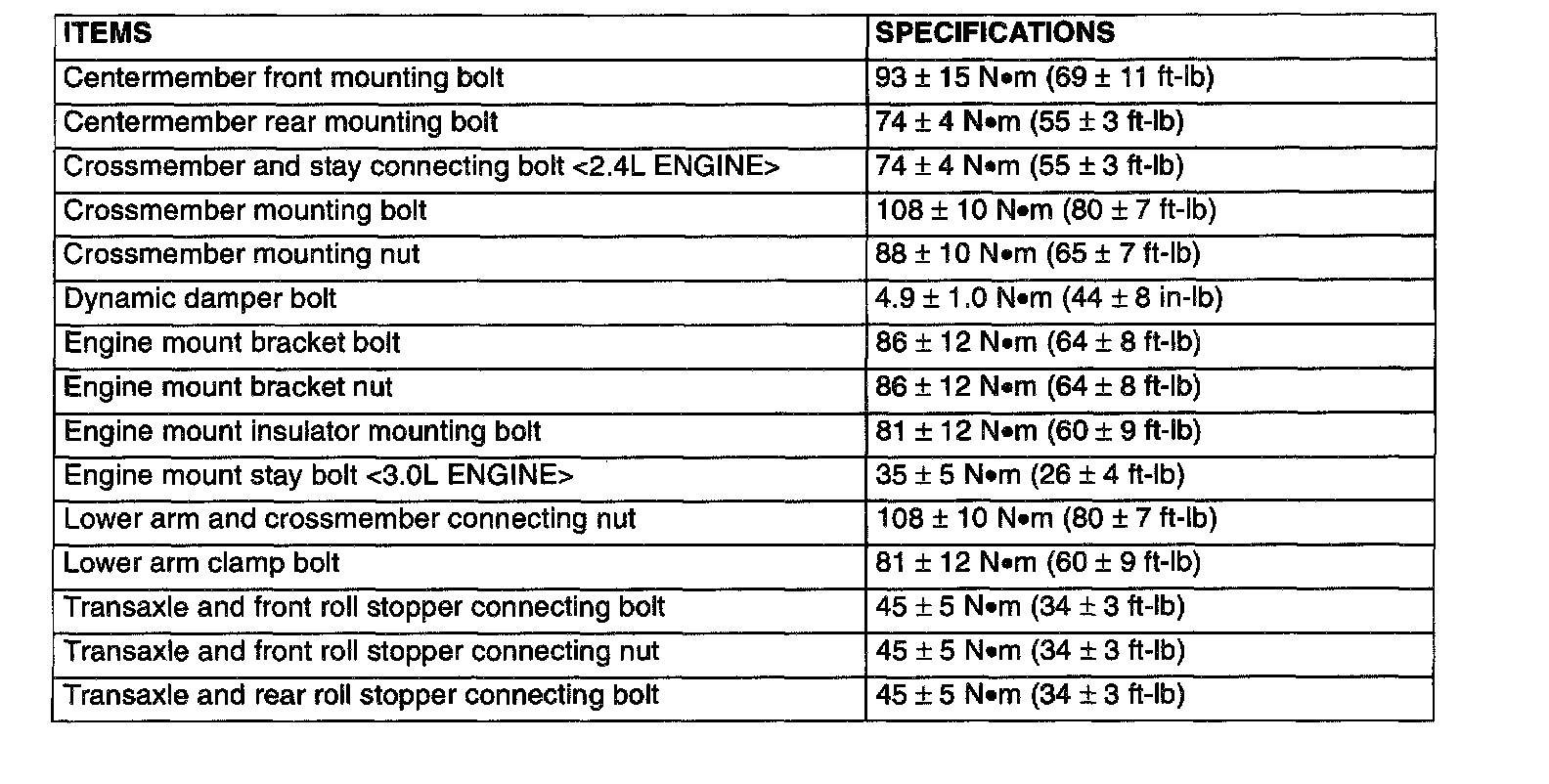

Power Plant Mount Fastener Tightening Specifications Part 1 of 2

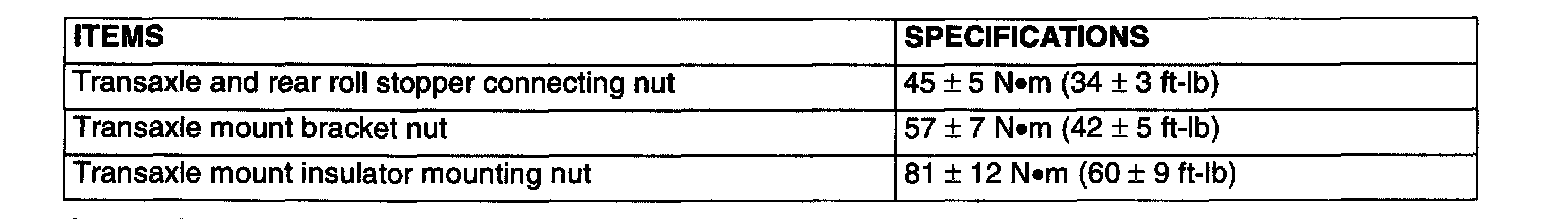

Power Plant Mount Fastener Tightening Specifications Part 2 of 2

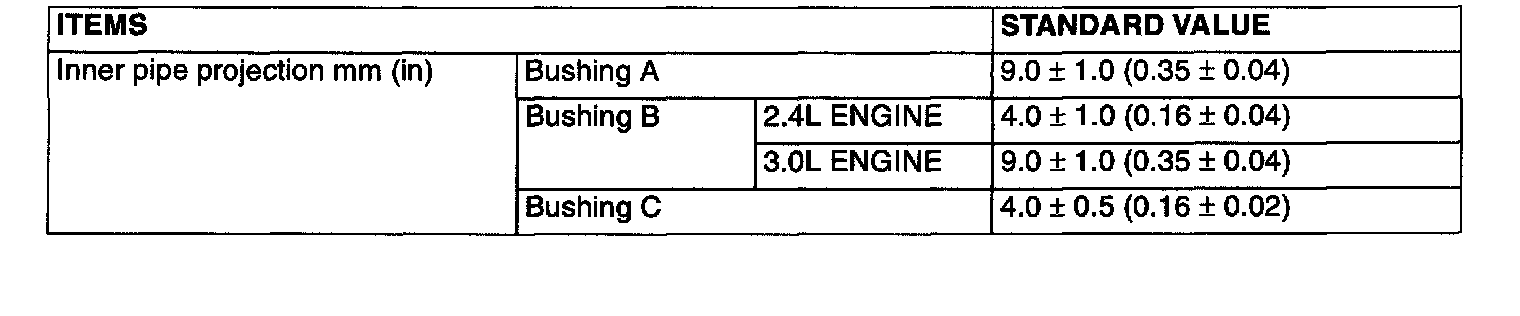

Power Plant Mount Service Specifications
