Oil Pan and Oil Pump Inspection
INSPECTIONOIL PUMP

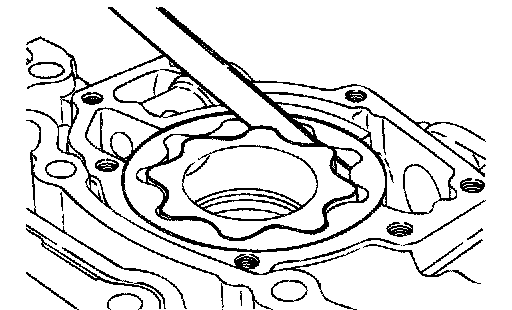

1. Check the tip clearance.
Standard value: 0.06 - 0.18 mm (0.003 - 0.007 inch)

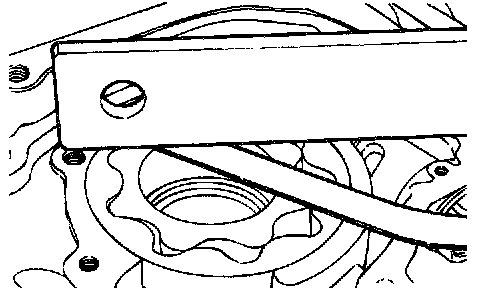

2. Check the side clearance.
Standard value: 0.04 - 0.10 mm (0.002 - 0.003 inch)

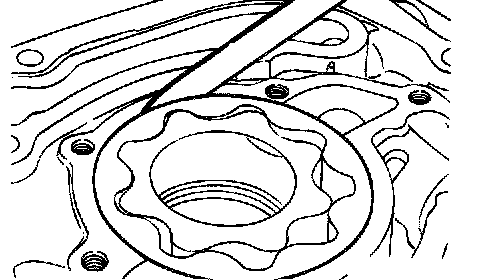

3. Check the body clearance.
Standard value: 0.10 - 0.18 mm (0.004 - 0.007 inch)
Limit: 0.35 mm (0.013 inch)
