Engine Torque Strut: Service and Repair

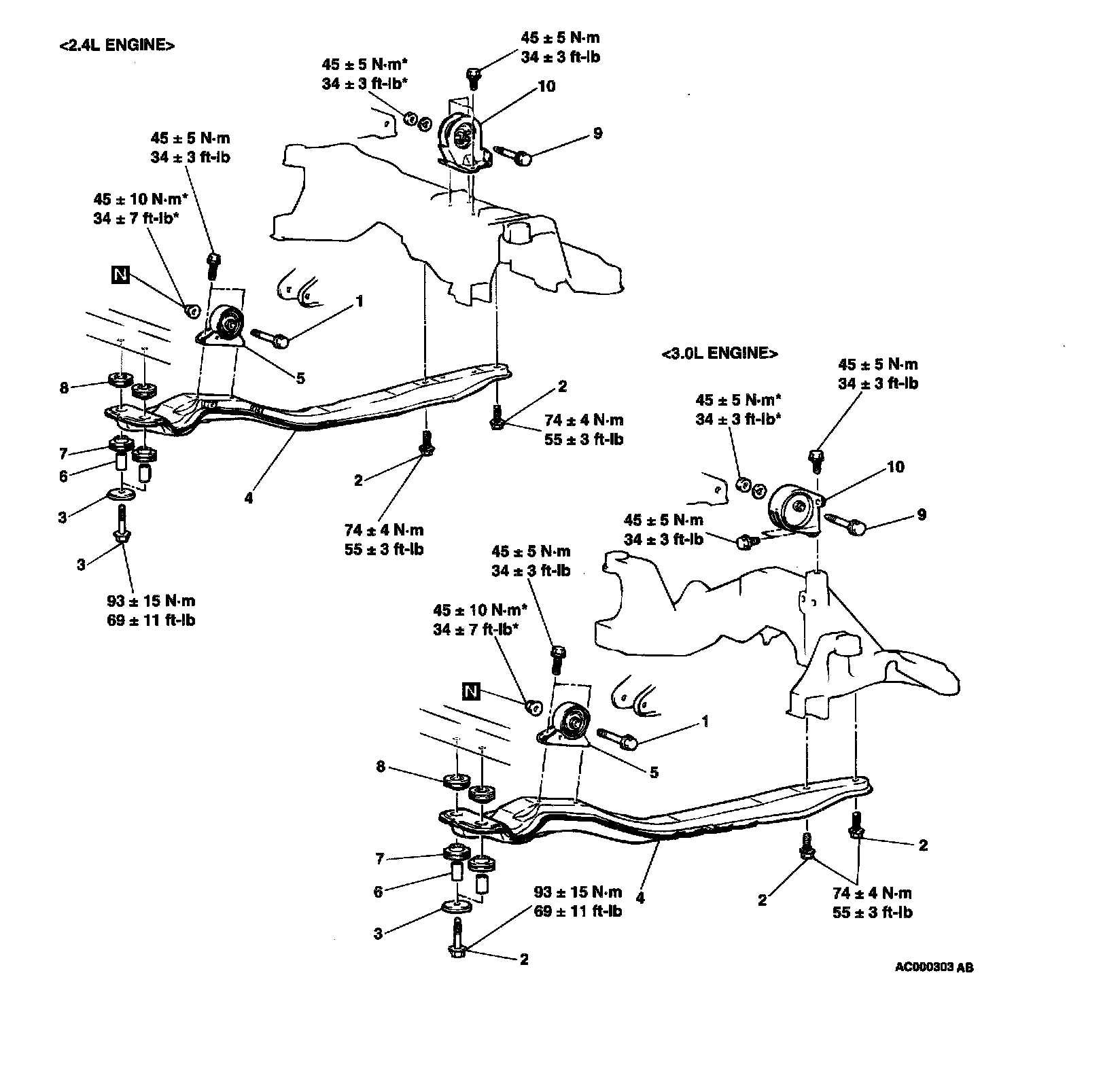

ENGINE ROLL STOPPER AND CENTER MEMBER

X��:

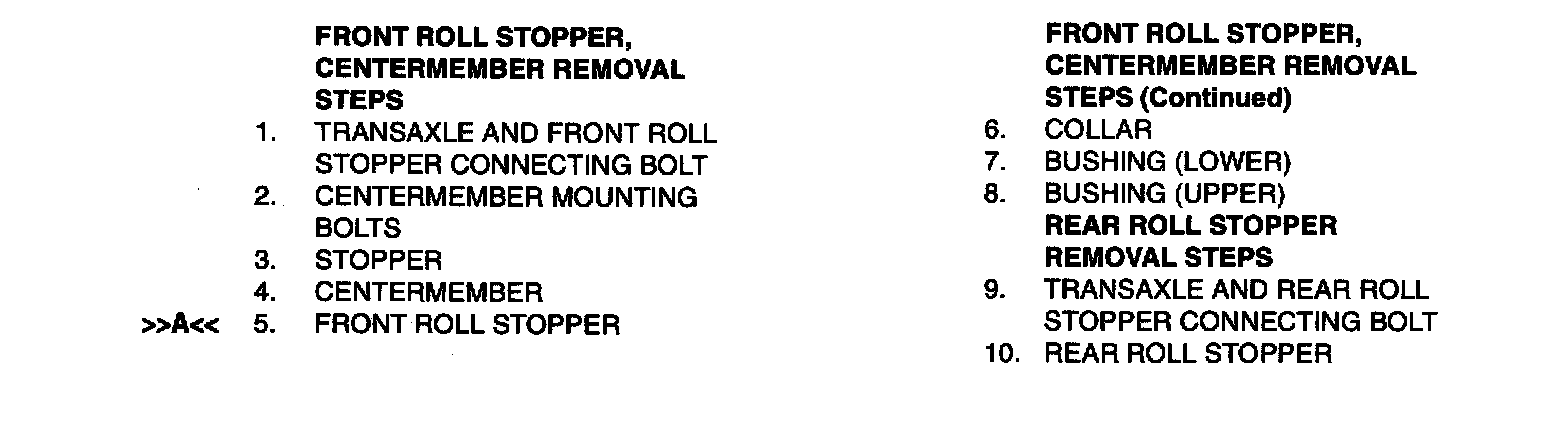

REMOVAL AND INSTALLATION

CAUTION: Mounting locations marked by should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

Installation Service Point

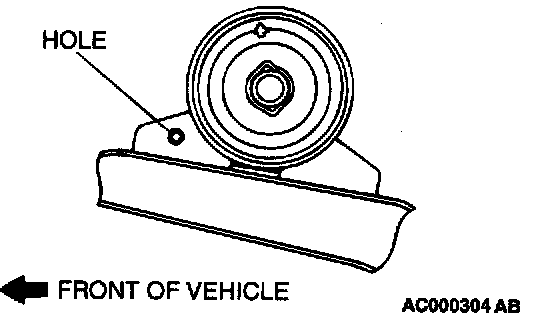

>>A<< Front Roll Stopper Installation





Install so that the hole in the front roll stopper is facing towards the front of the vehicle.
