Water Pump: Service and Repair

<3.0L ENGINE>

Installation Service Points

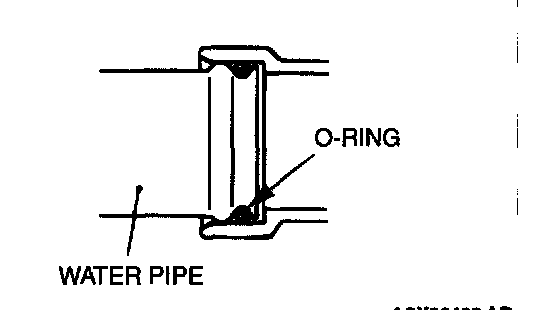

>>A<< O-Ring Installation

CAUTION:
- Care must be taken not to permit engine oil or other grease to adhere to the O-ring.
- When inserting the pipe, check to be sure that there is no sand, dirt, etc. on its inner surface.





Rinse the mounting location of O-ring and water pipe with water, and install the O-ring and water pipe.

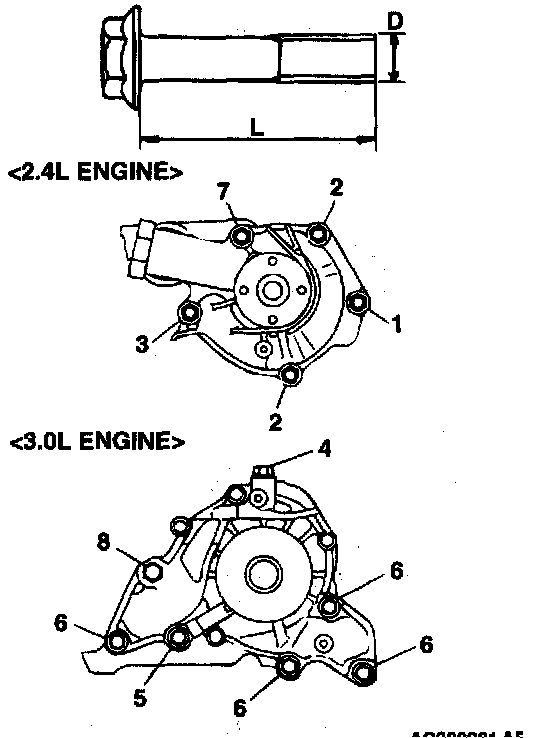

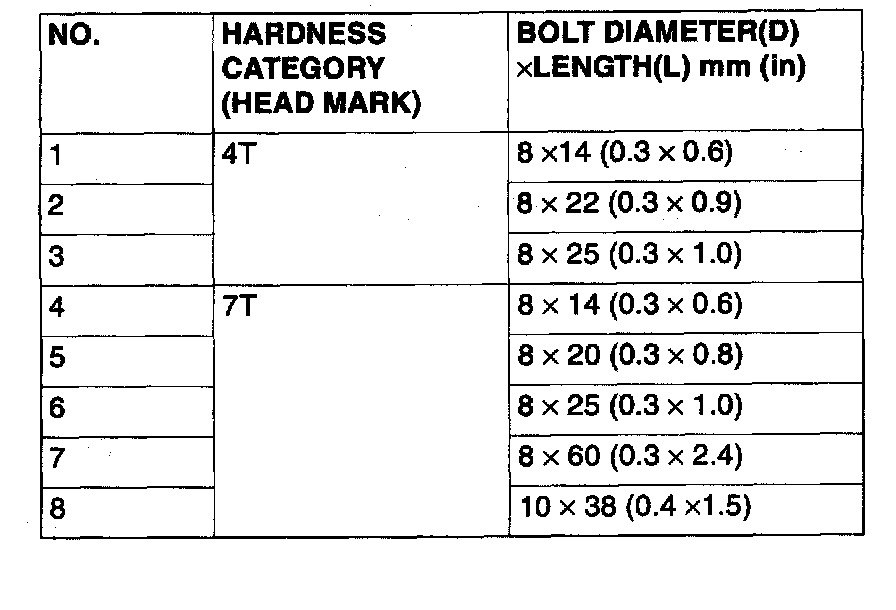

>>B<< Water Pump Assembly Installation
