Thermostat: Testing and Inspection

THERMOSTAT CHECK

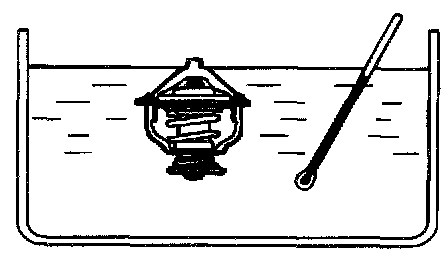

1. Immerse the thermostat in water, and heat the water while stirring. Check the thermostat valve opening temperature.

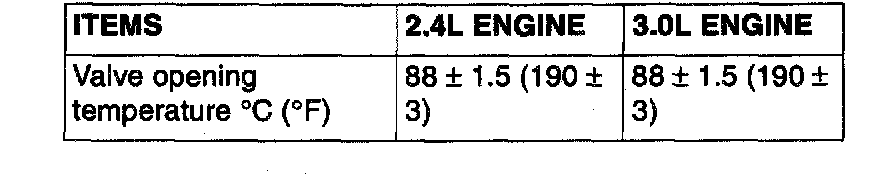

Standard value:

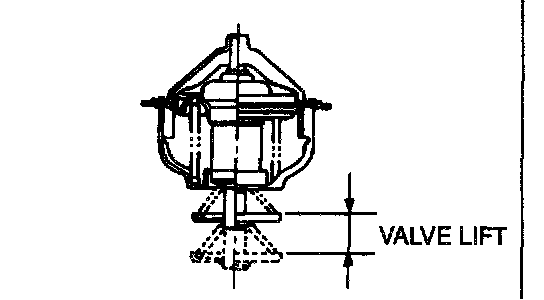

2. Check that the amount of valve lift is at the standard value when the water is at the full-opening temperature.

NOTE: Measure the valve height when the thermostat is fully closed, and use this measurement to calculate the valve height when the thermostat is fully open.

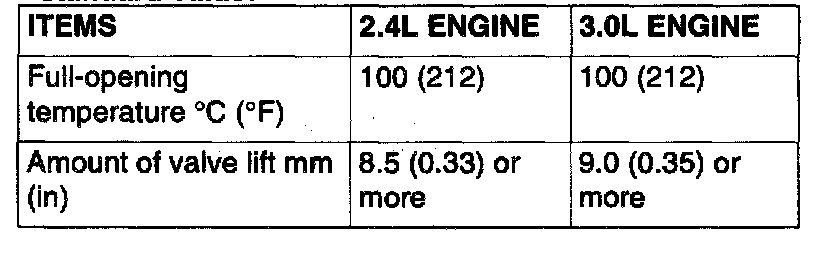

Standard value:
