Fusible Link

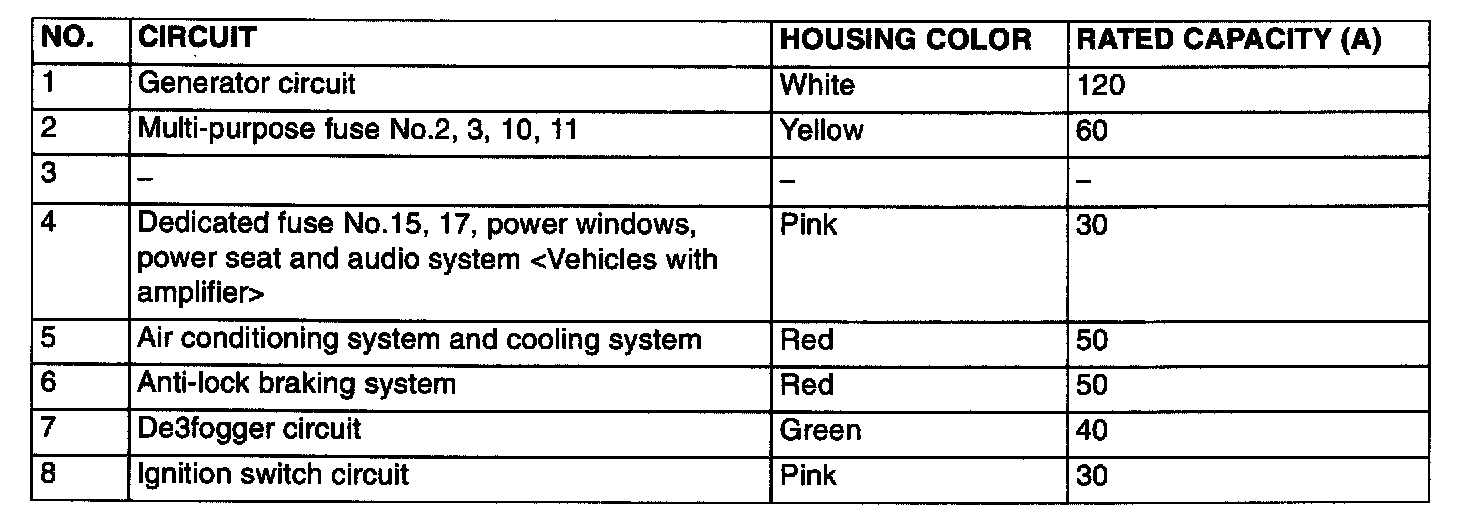

Fusible Link Location Index:

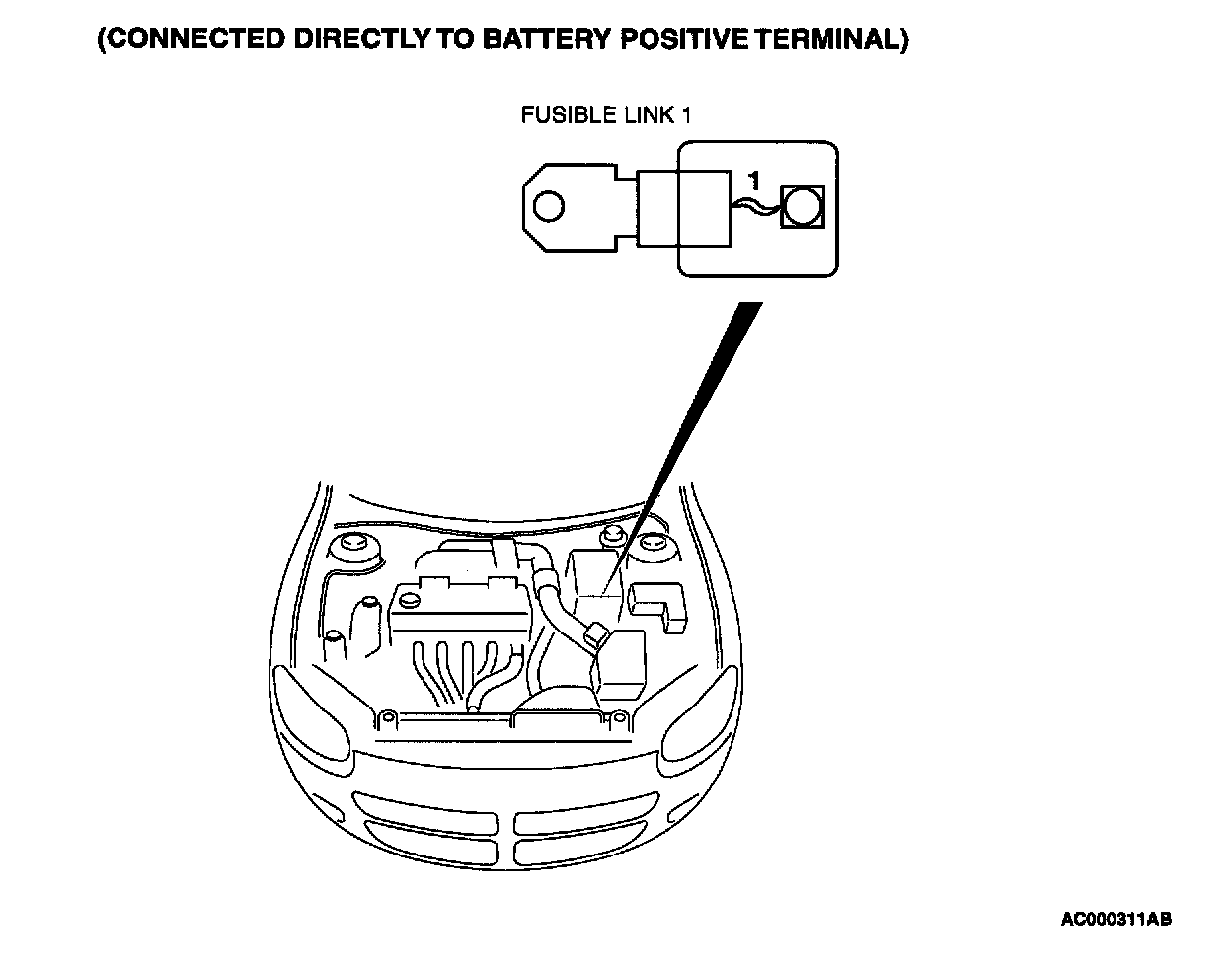

Fusible Link 1 (Connected Directly To Battery Positive Terminal):

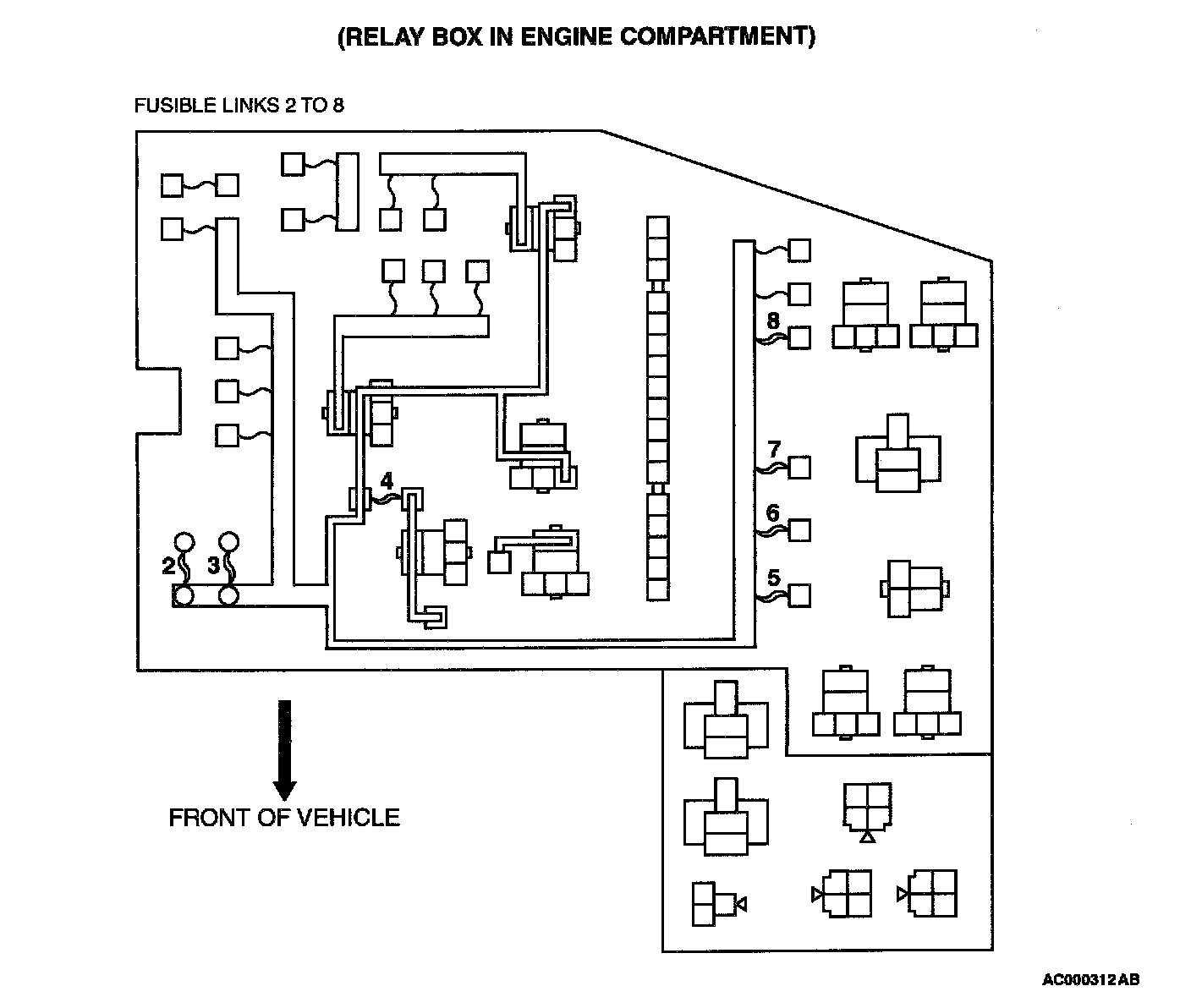

Fusible Links 2 - 8 (Relay Box In Engine Compartment):
