Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Vehicle Without Amplifier

Vehicle Without Amplifier

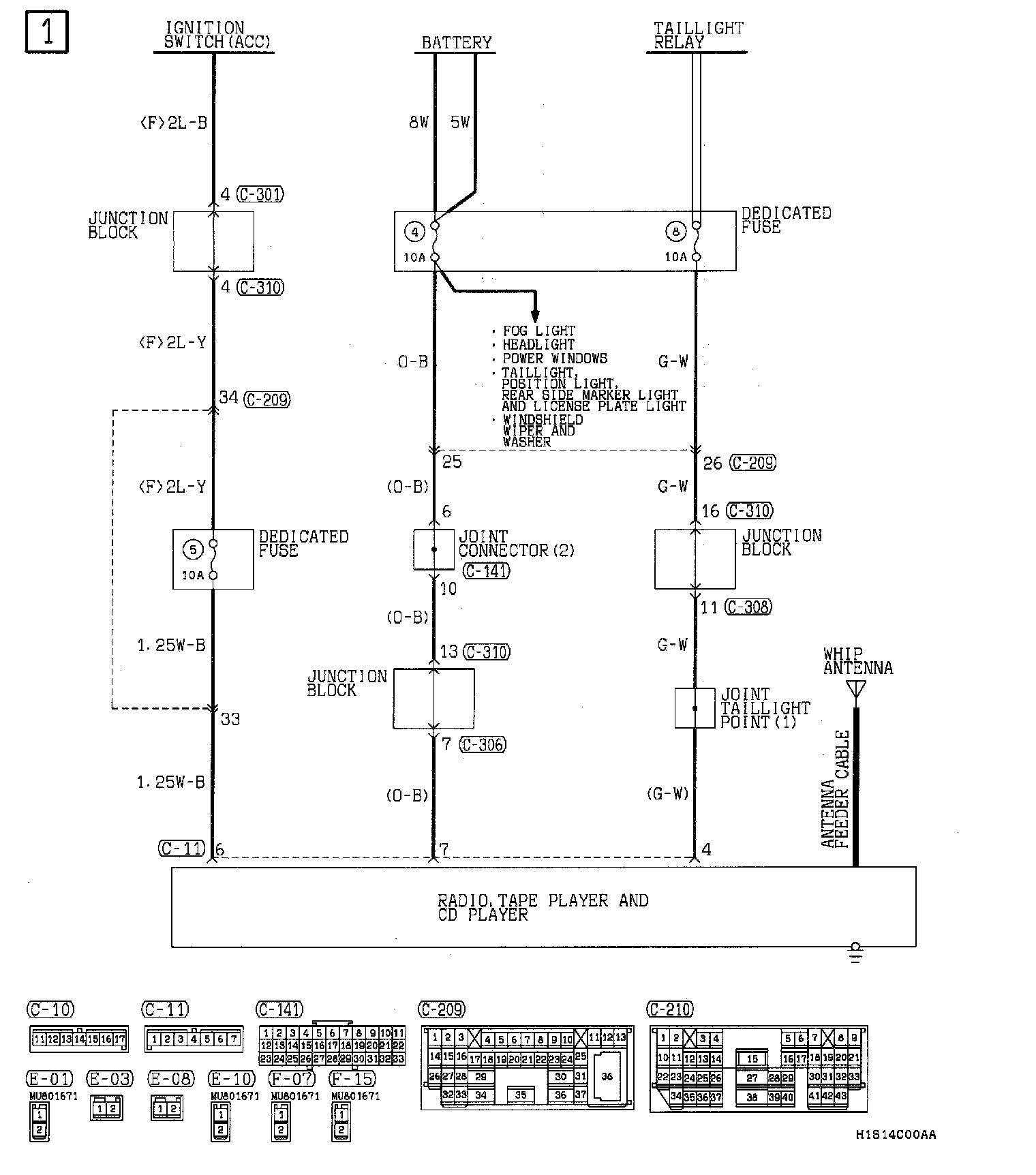

Audio System <Vehicles Without Amplifier> Part 1:

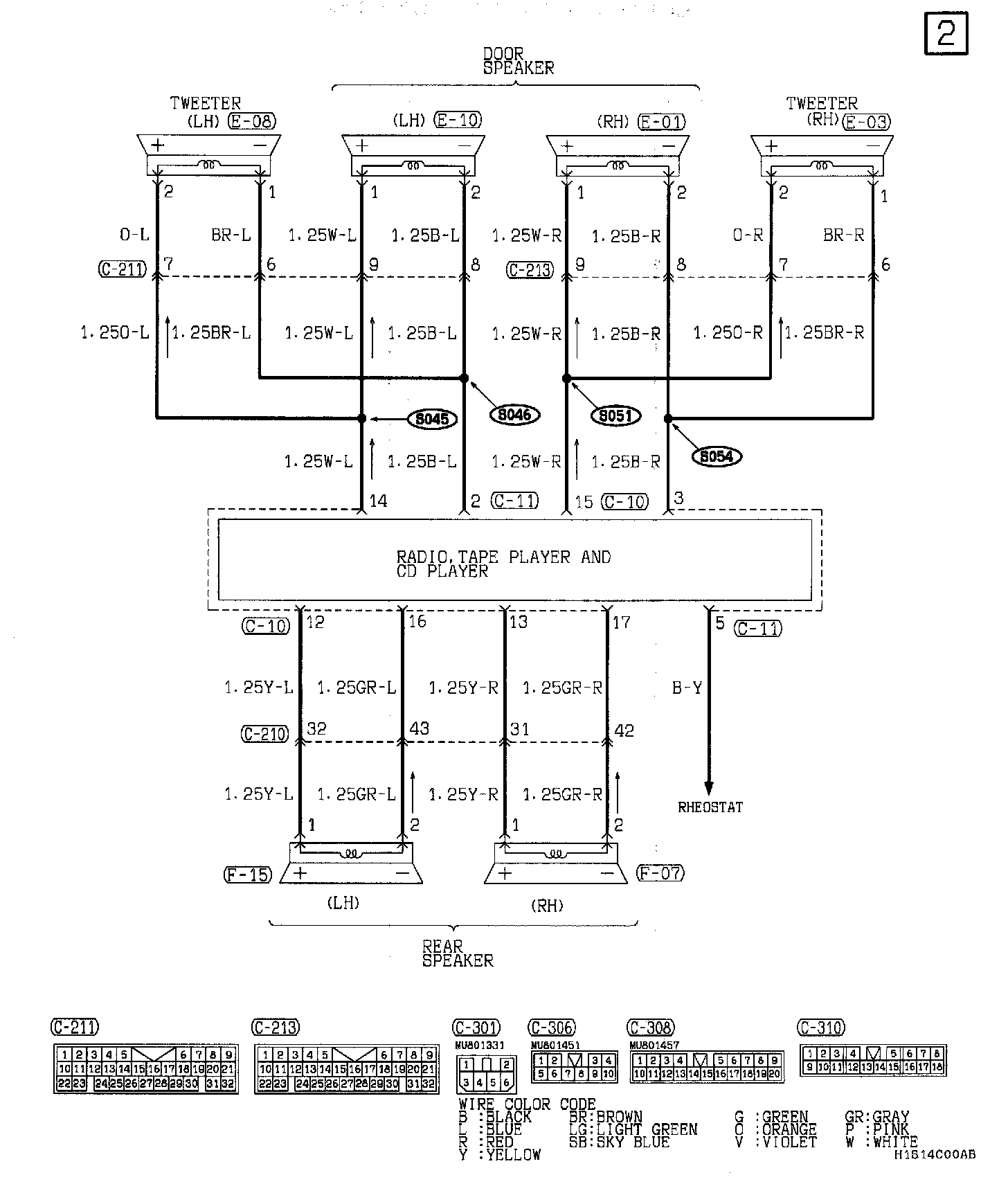

Audio System <Vehicles Without Amplifier> Part 2:
