Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Vehicle With Amplifier

Vehicle With Amplifier

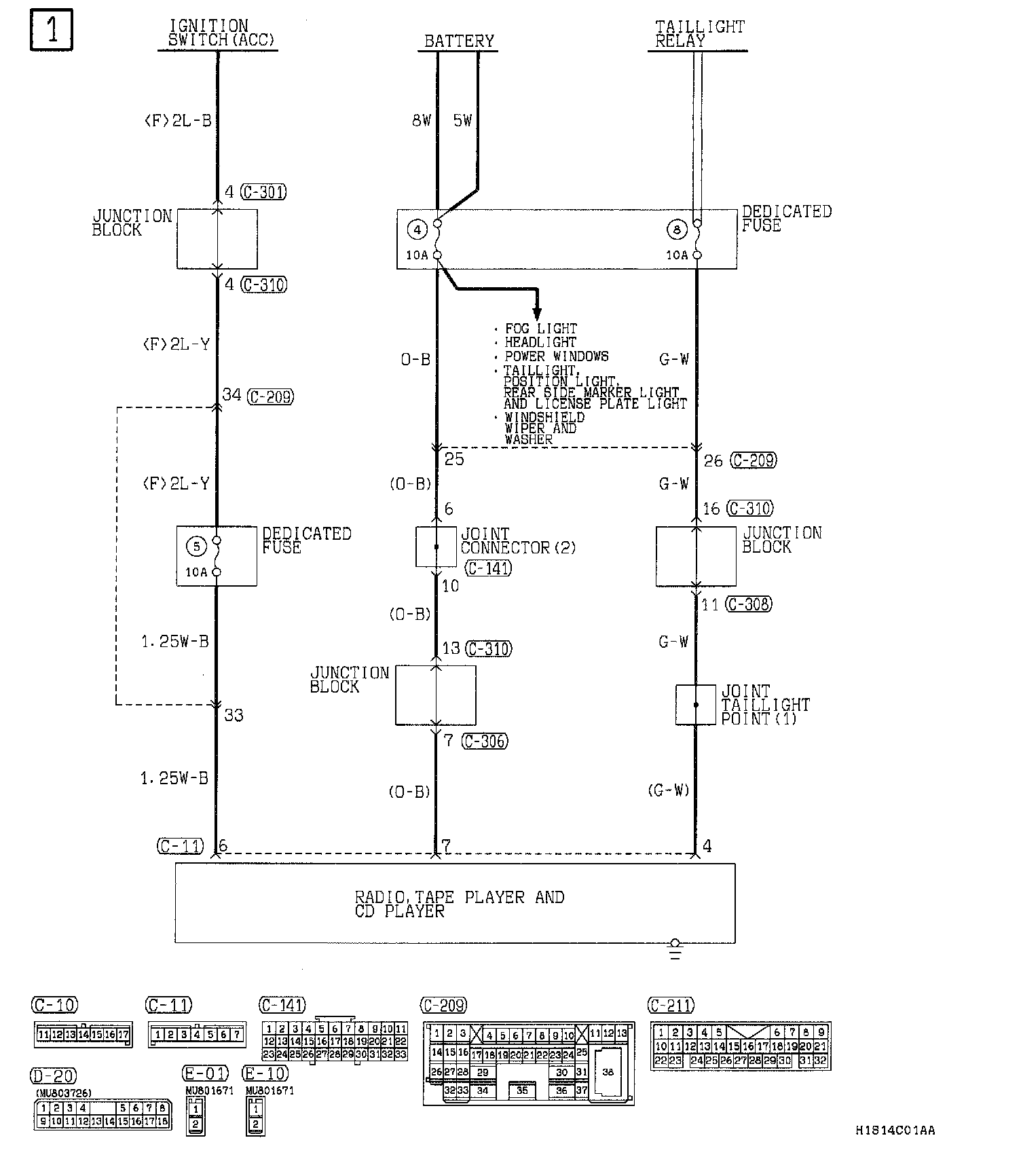

Audio System <Vehicles With Amplifier> Part 1:

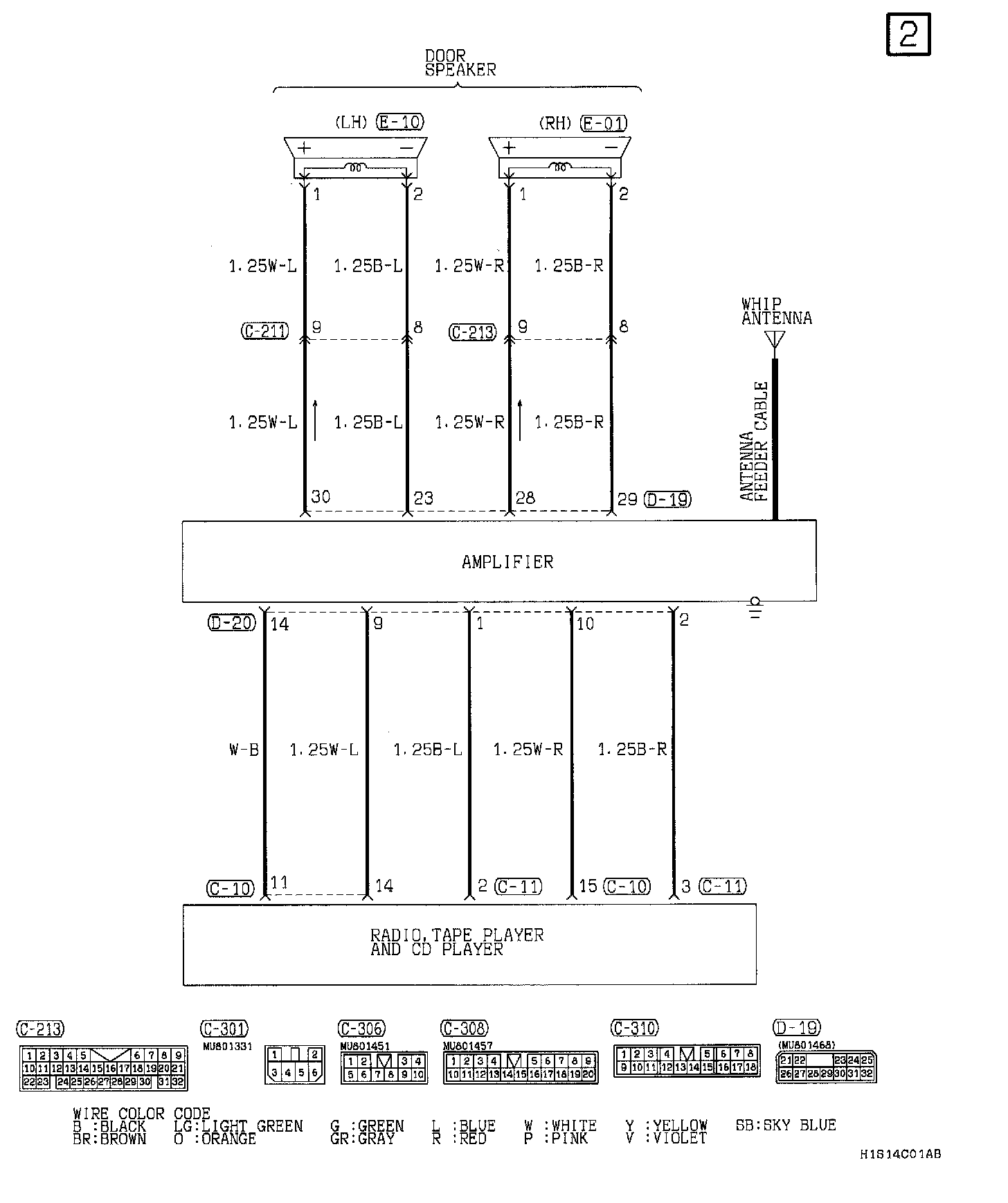

Audio System <Vehicles With Amplifier> Part 2:

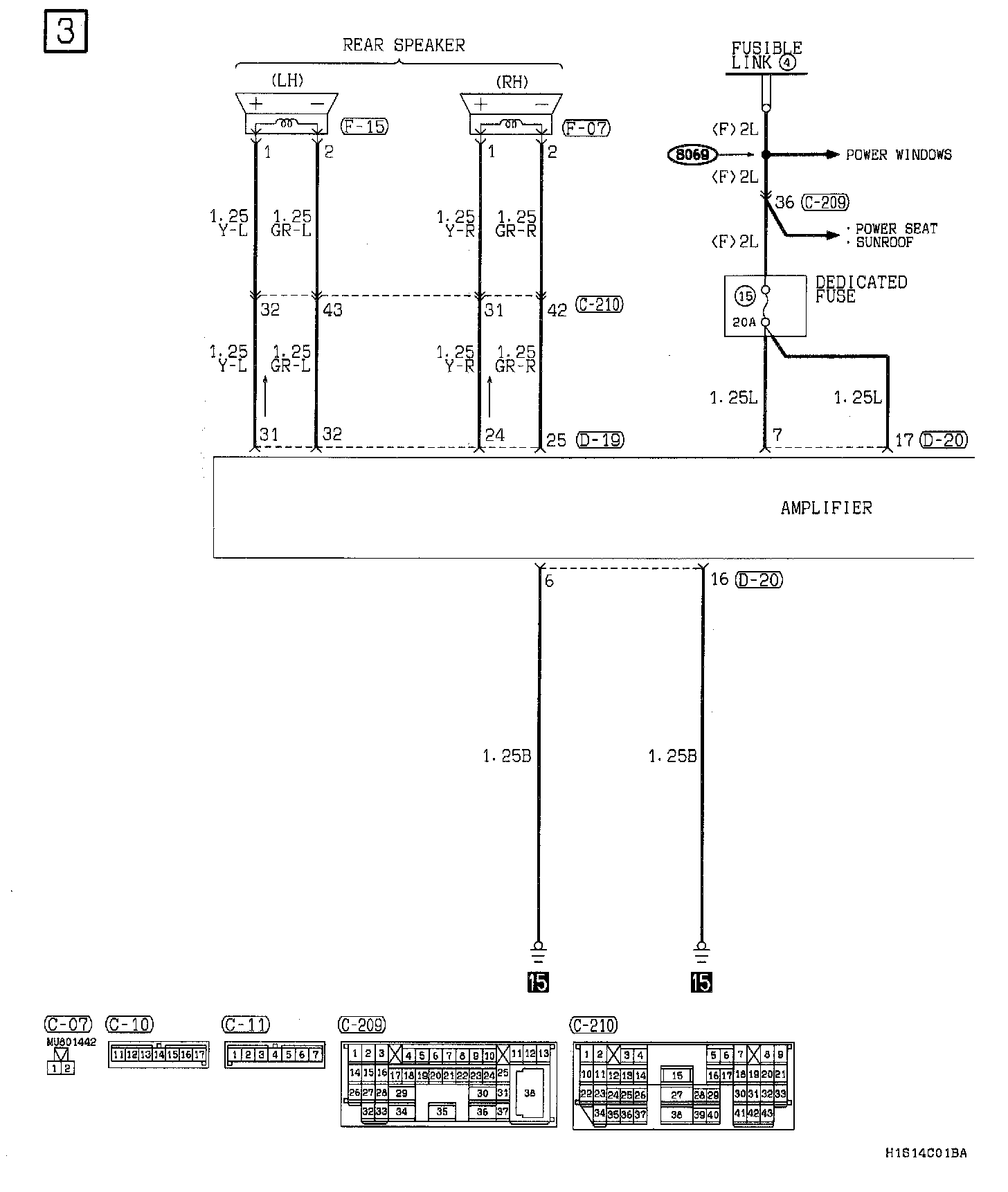

Audio System <Vehicles With Amplifier> Part 3:

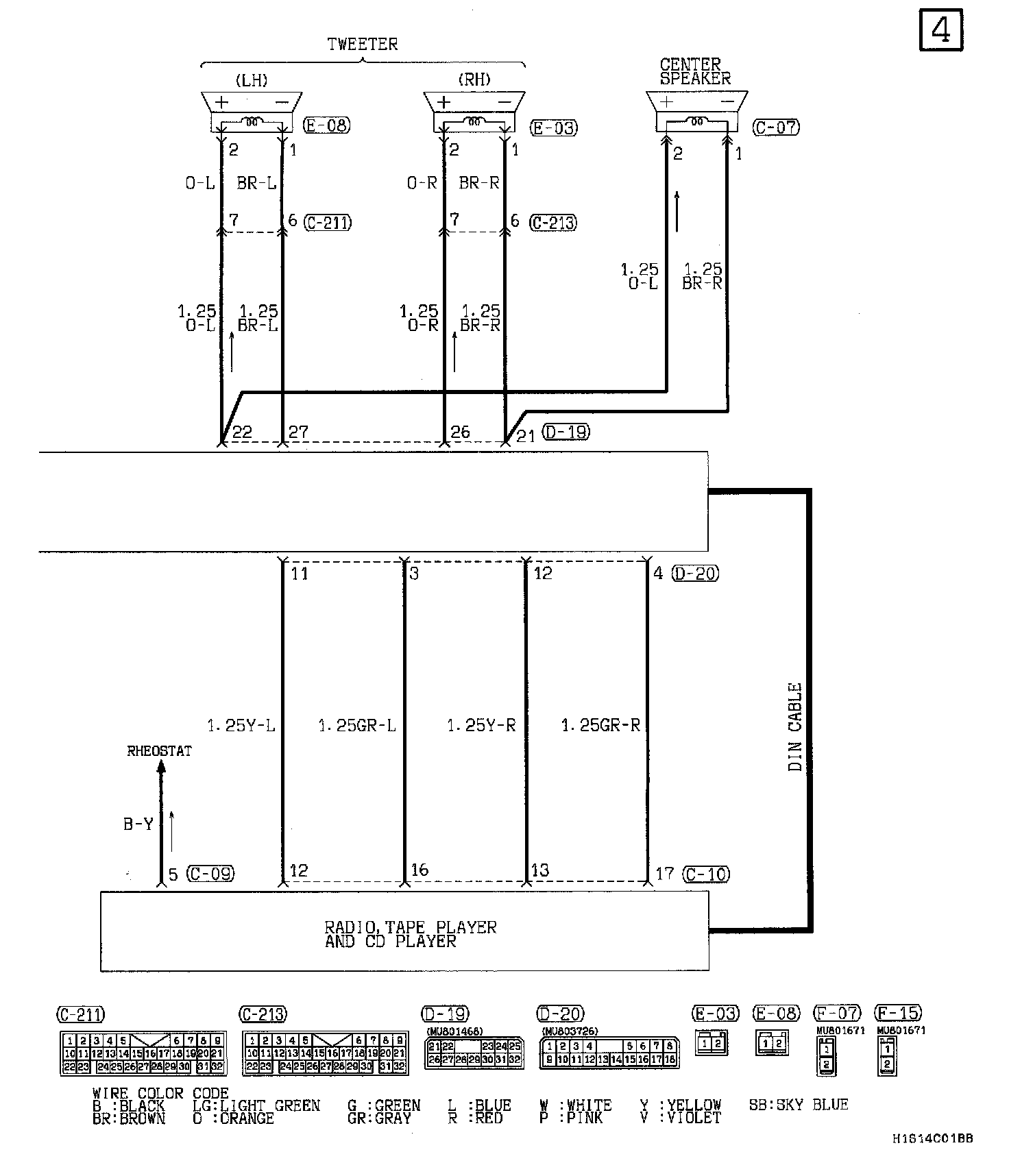

Audio System <Vehicles With Amplifier> Part 4:
