Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display

Driver/Vehicle Information Display

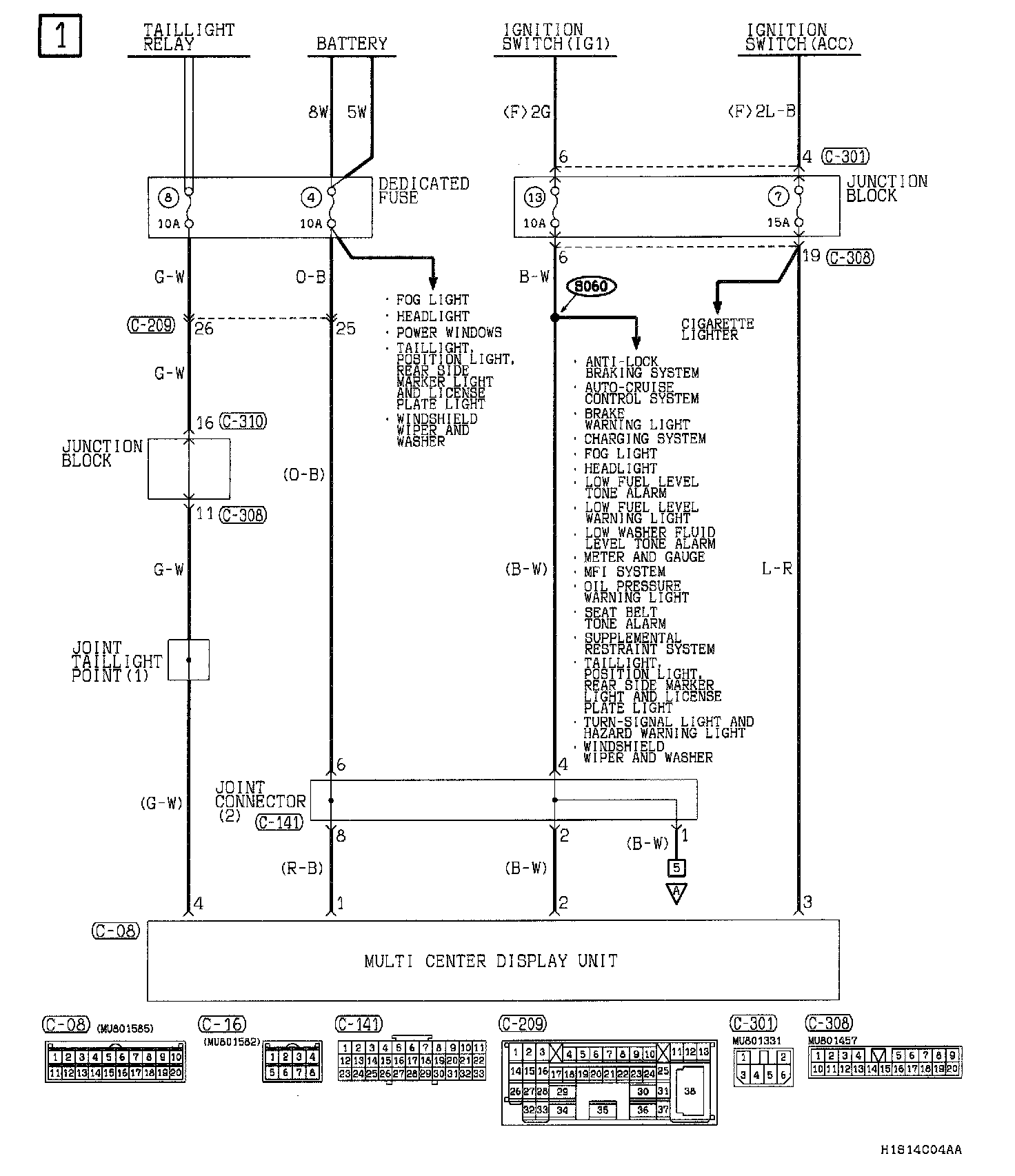

Multi Center Display Part 1:

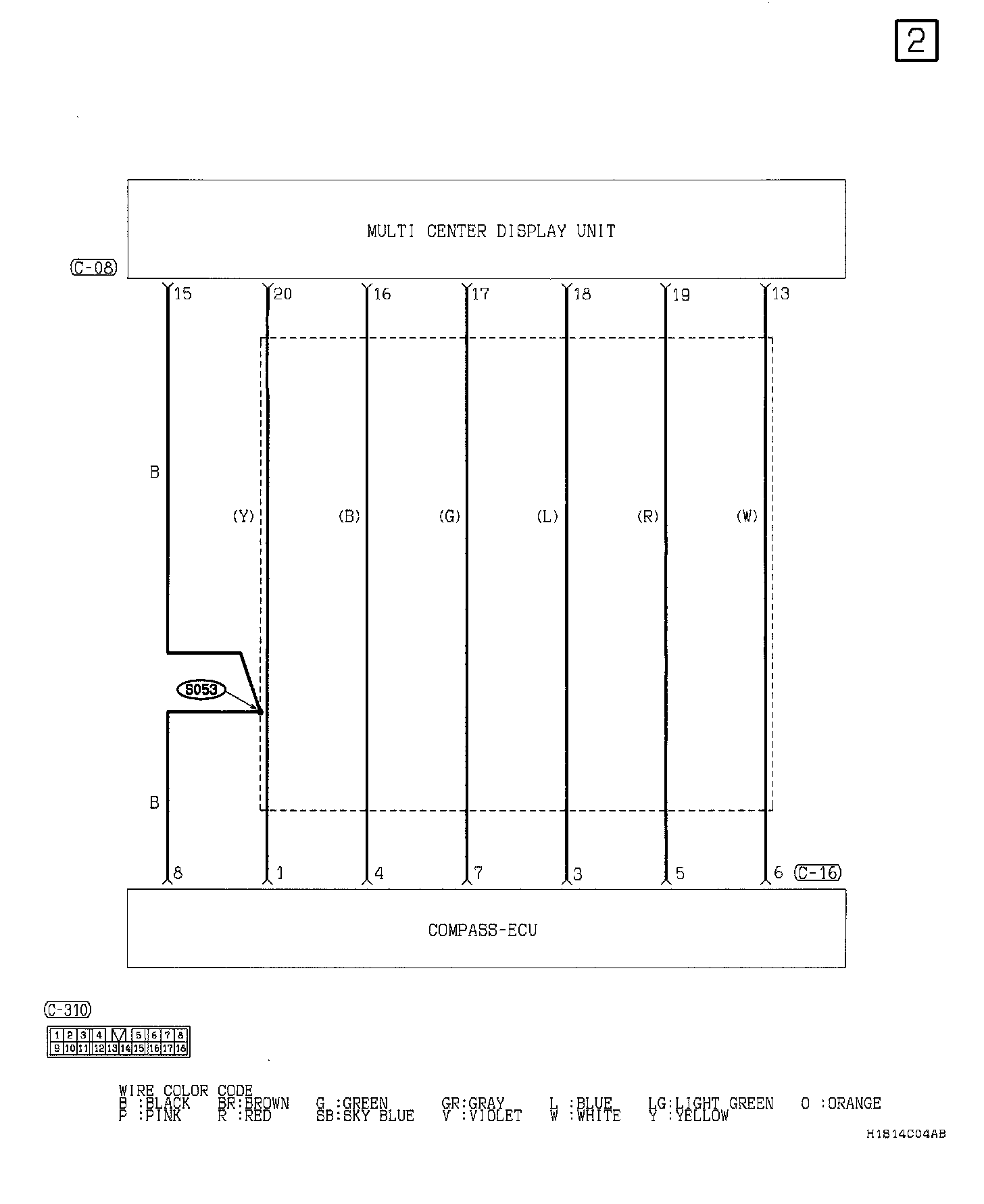

Multi Center Display Part 2:

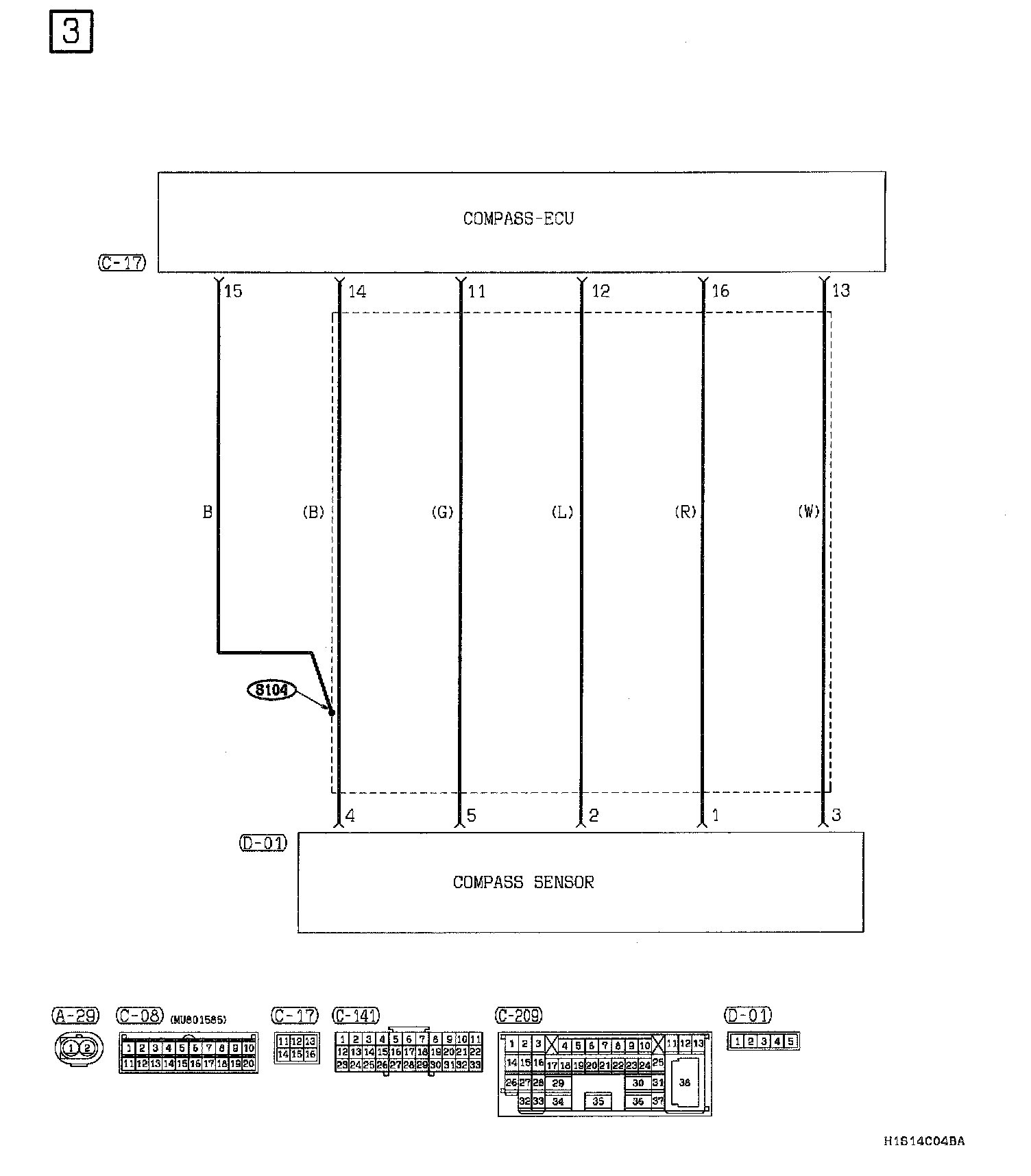

Multi Center Display Part 3:

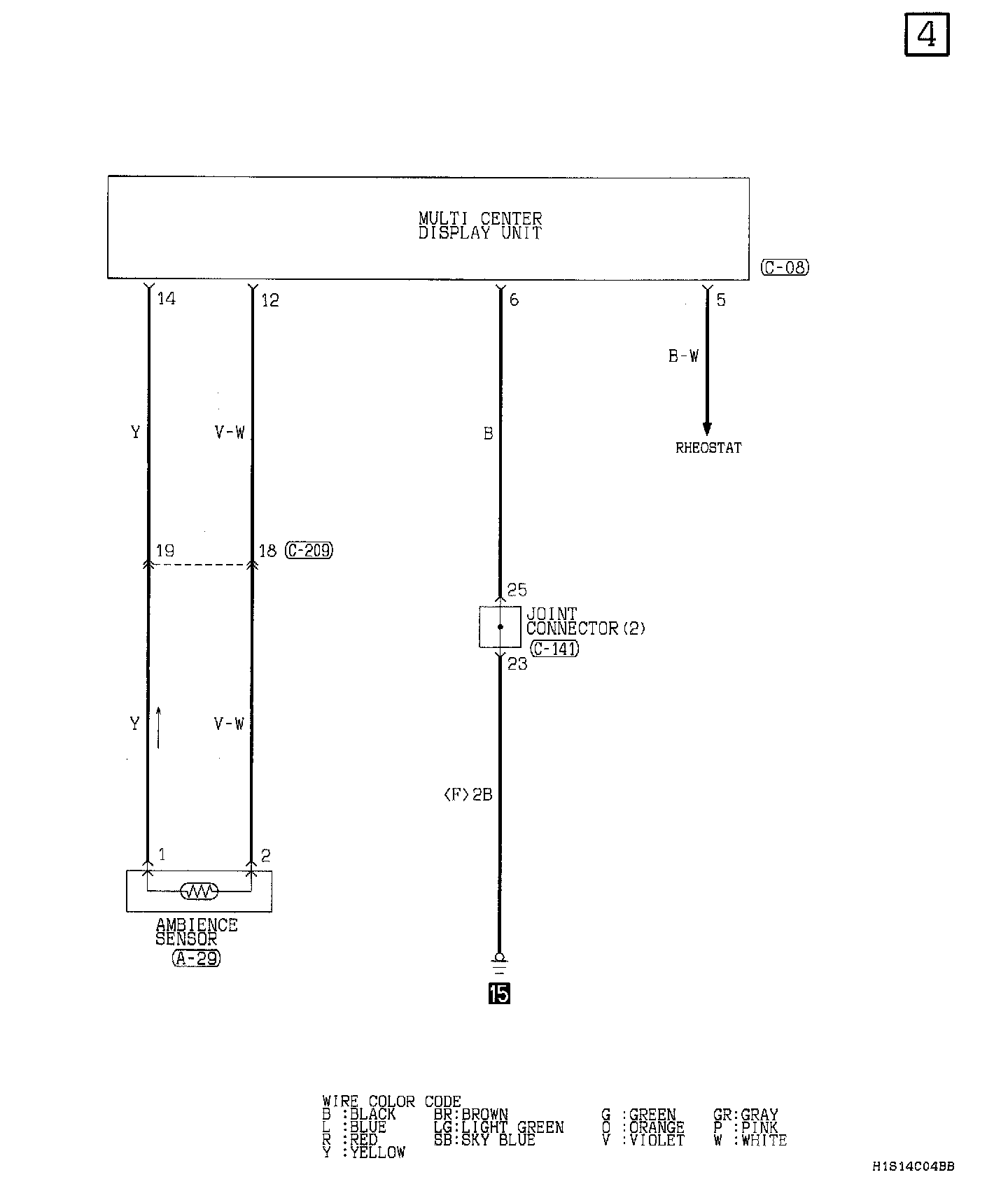

Multi Center Display Part 4:

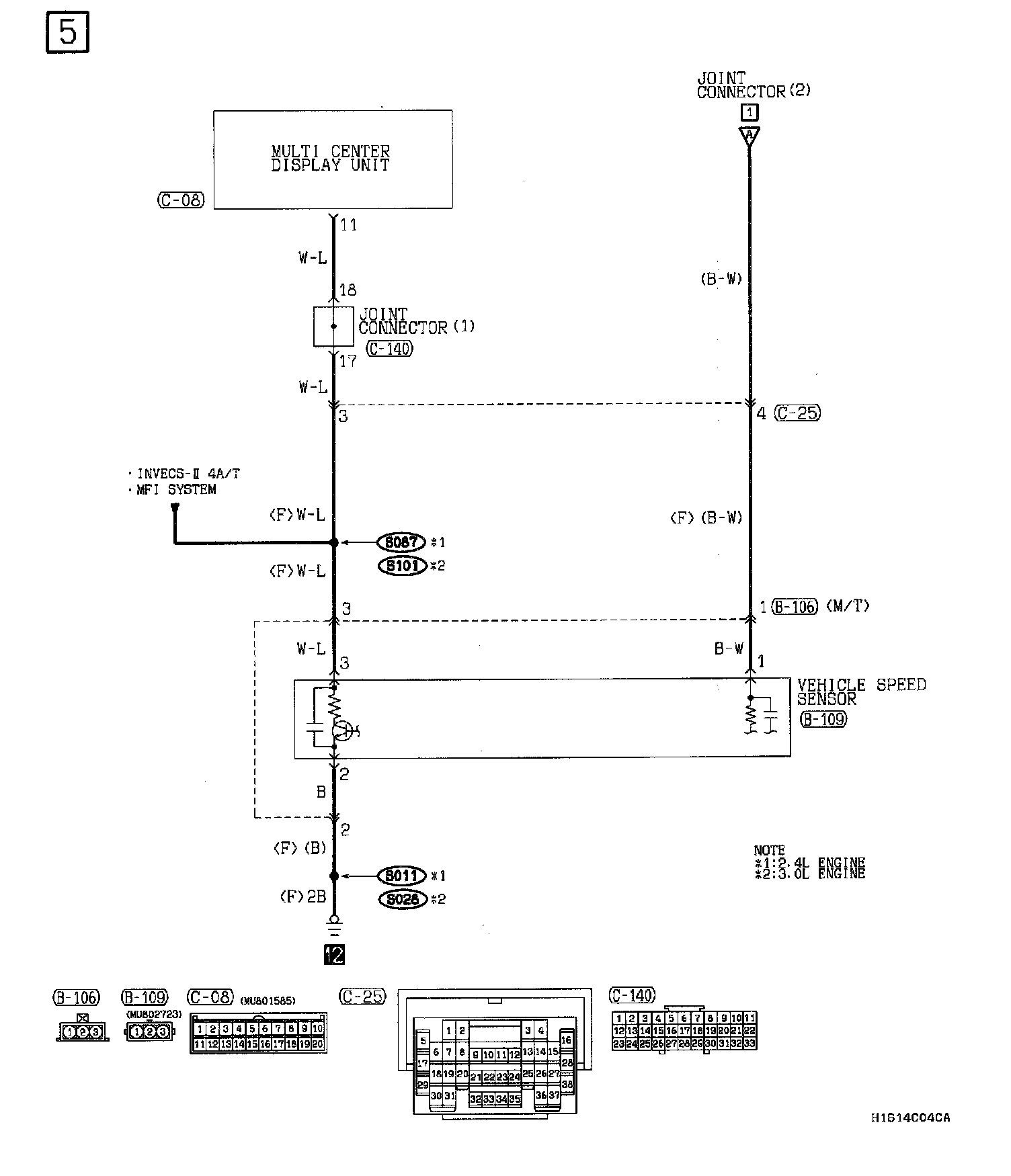

Multi Center Display Part 5:
