Sebring Coupe V6-3.0L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Low Fuel Level Tone Alarm
Low Fuel Level Tone Alarm

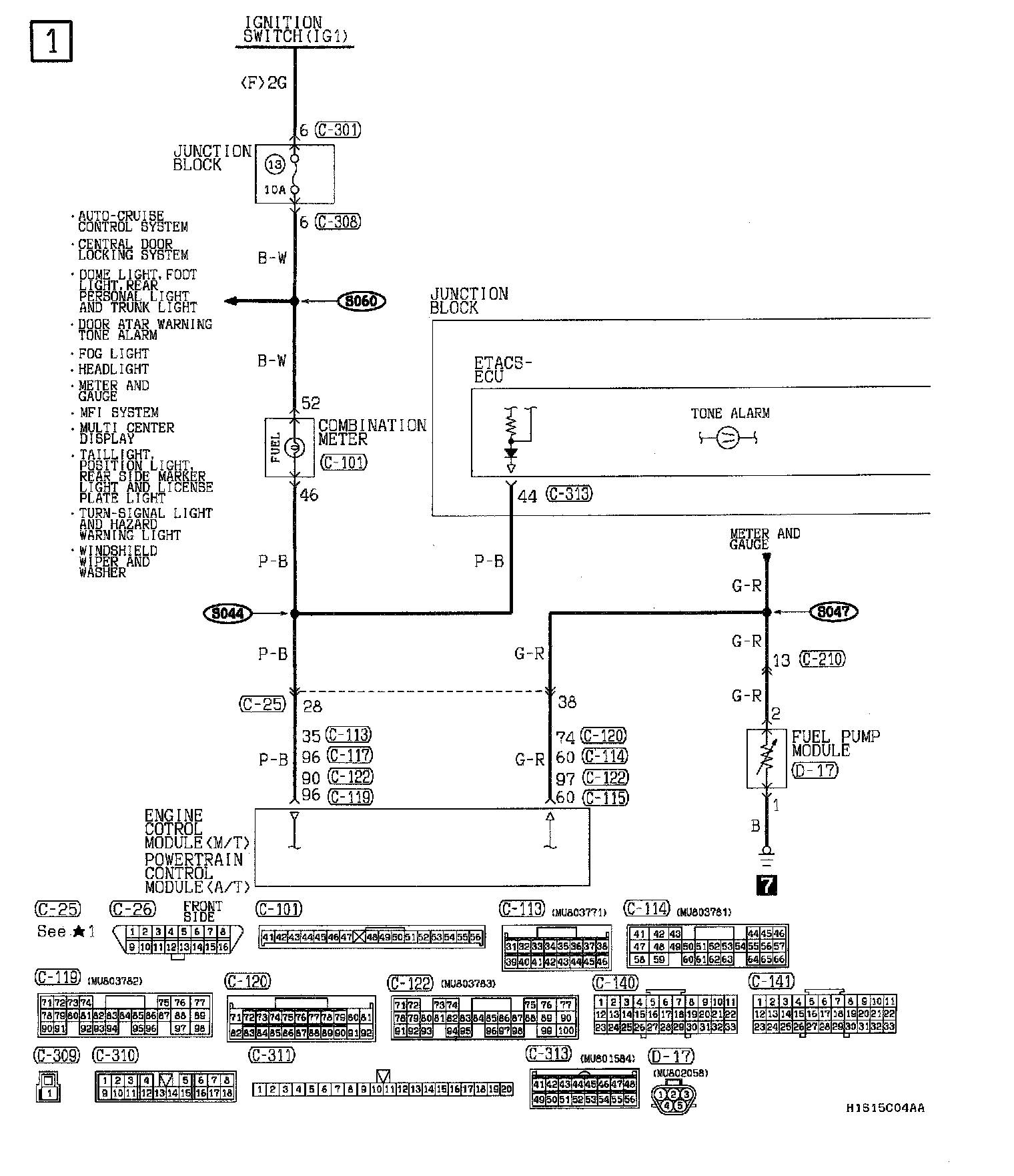

Low Fuel Level Tone Alarm Part 1:

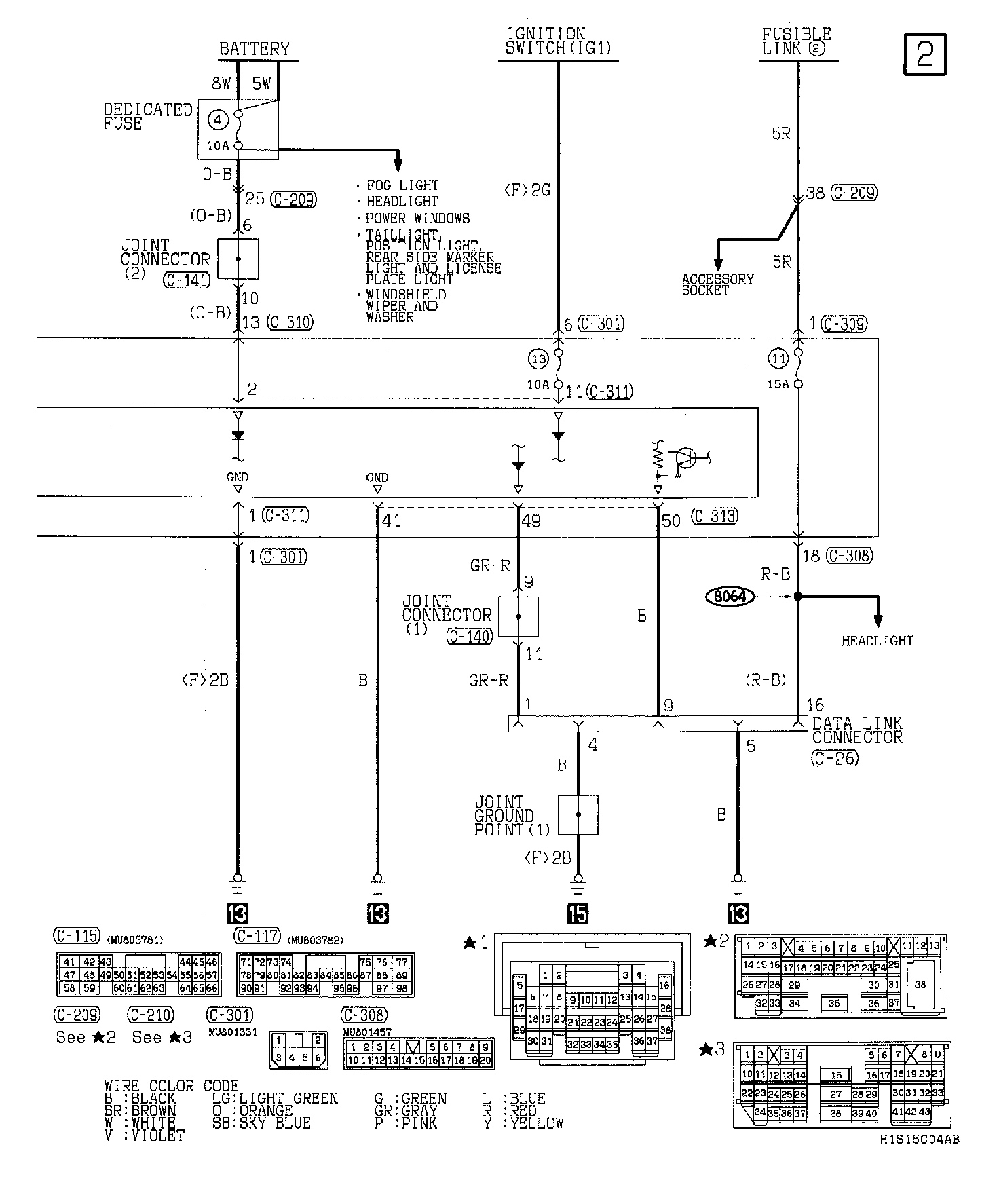

Low Fuel Level Tone Alarm Part 2:
