Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Light Monitor Tone Alarm

Light Monitor Tone Alarm

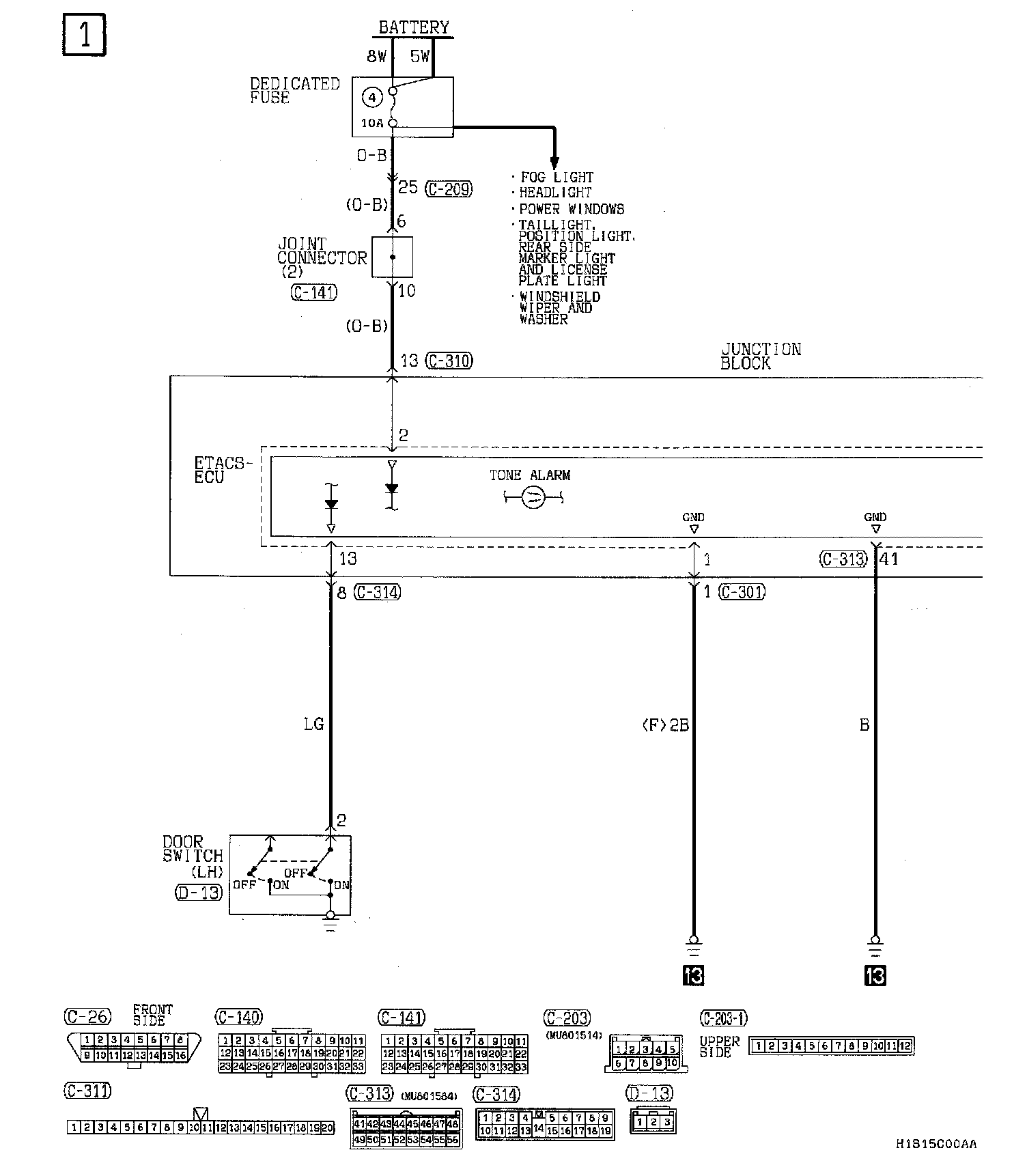

Lighting Monitor Tone Alarm Part 1:

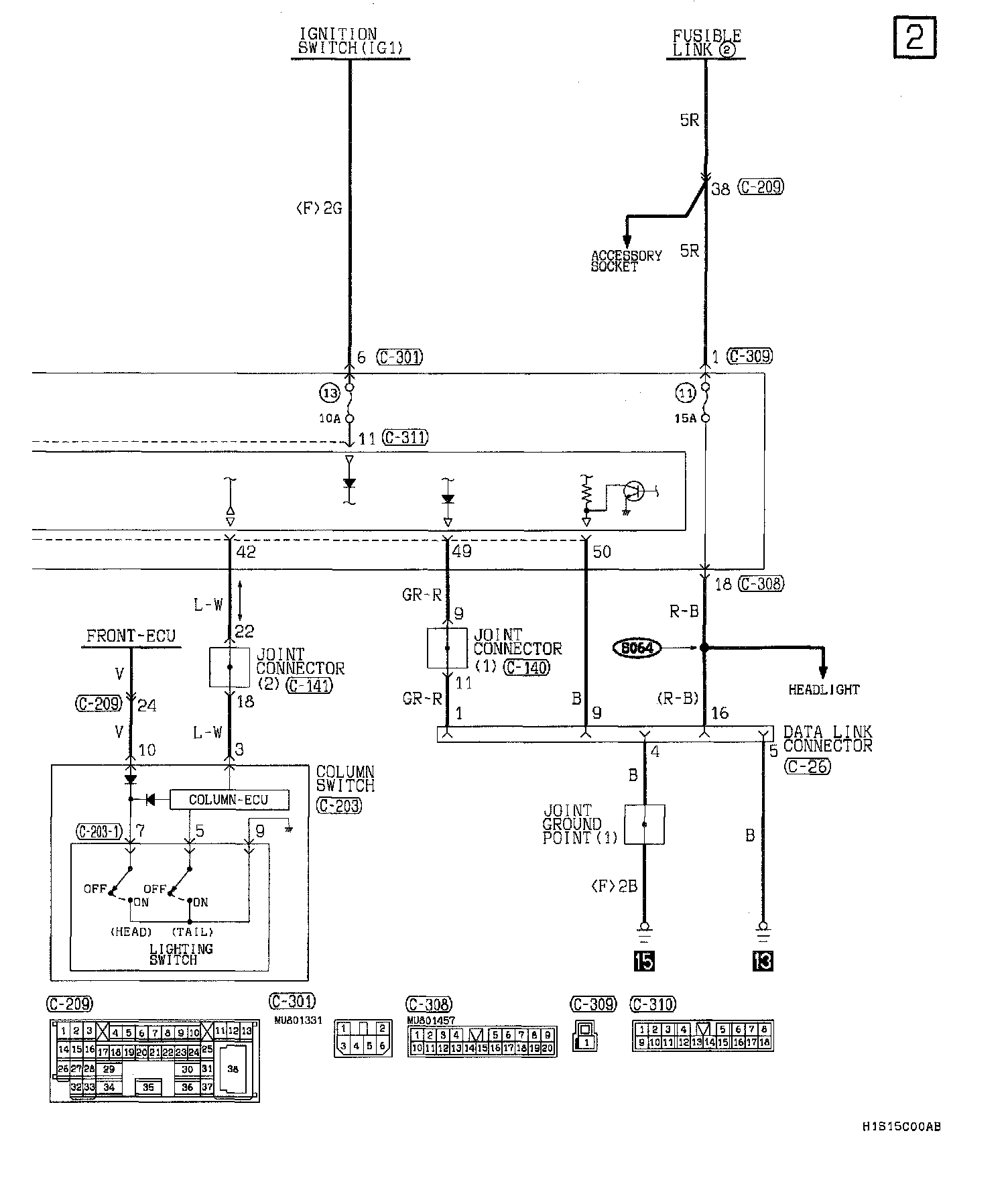

Lighting Monitor Tone Alarm Part 2:
