Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Vehicles For U.S

Vehicles For U.S

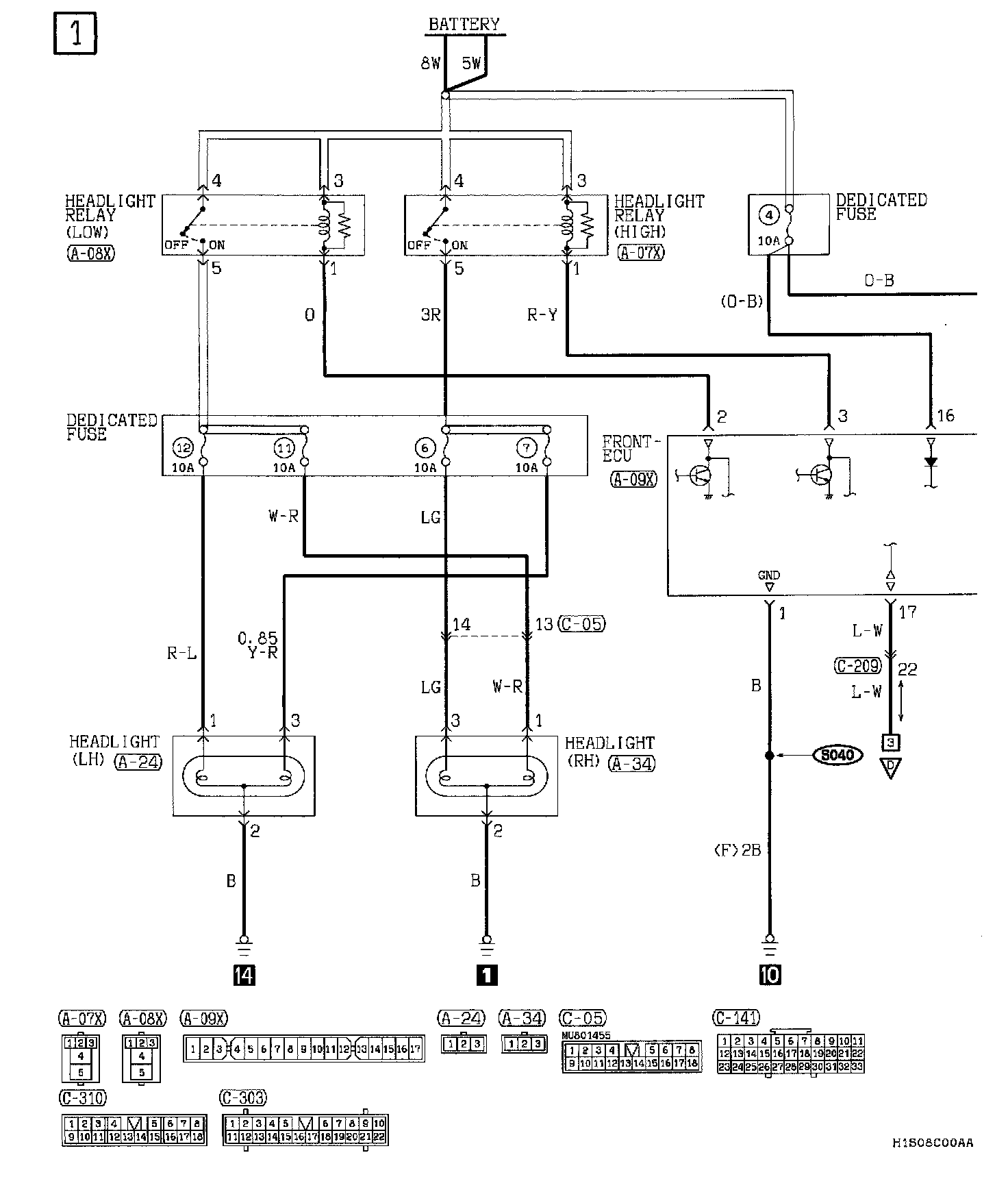

Headlight <Vehicles For U.S> Part 1:

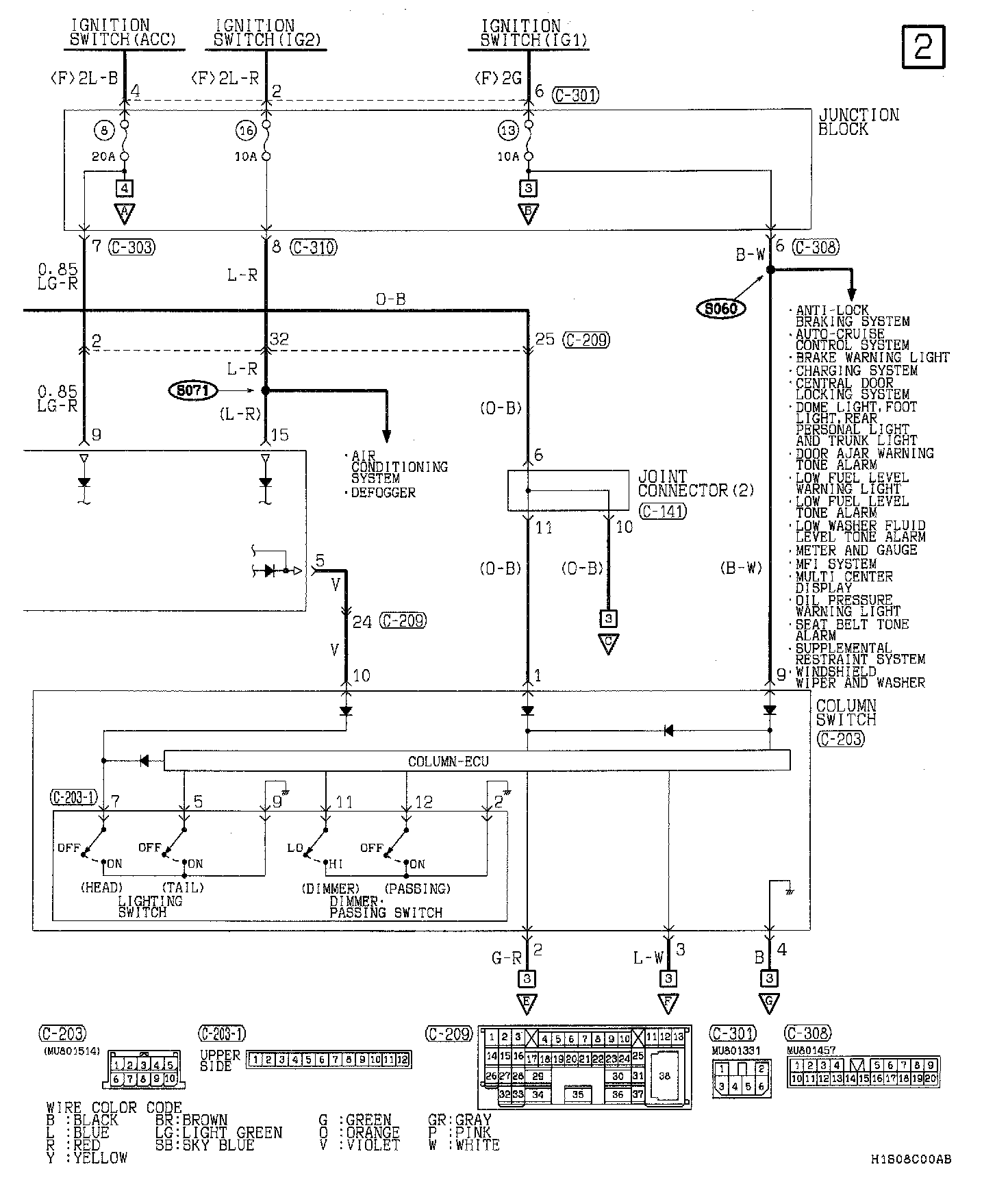

Headlight <Vehicles For U.S> Part 2:

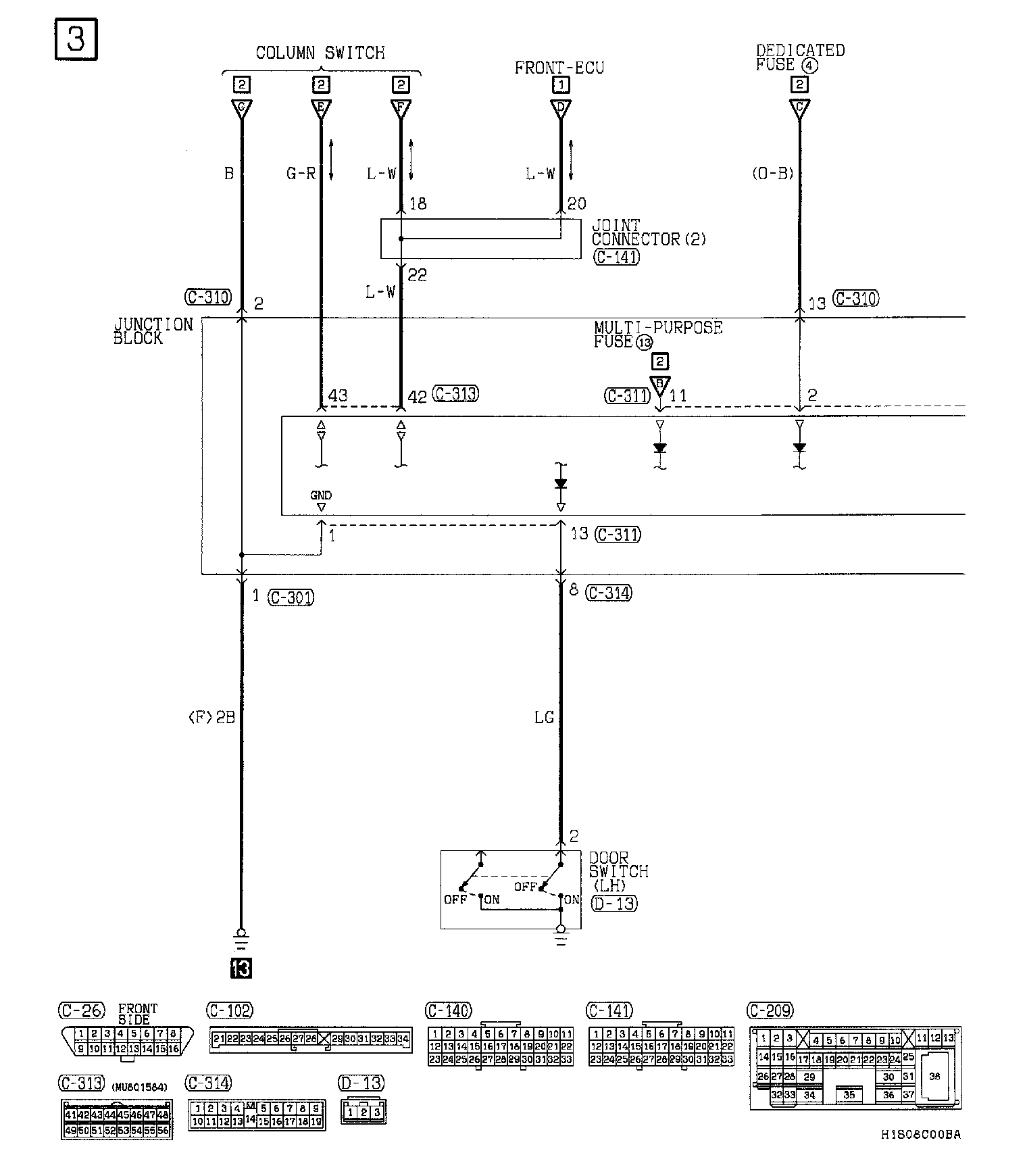

Headlight <Vehicles For U.S> Part 3:

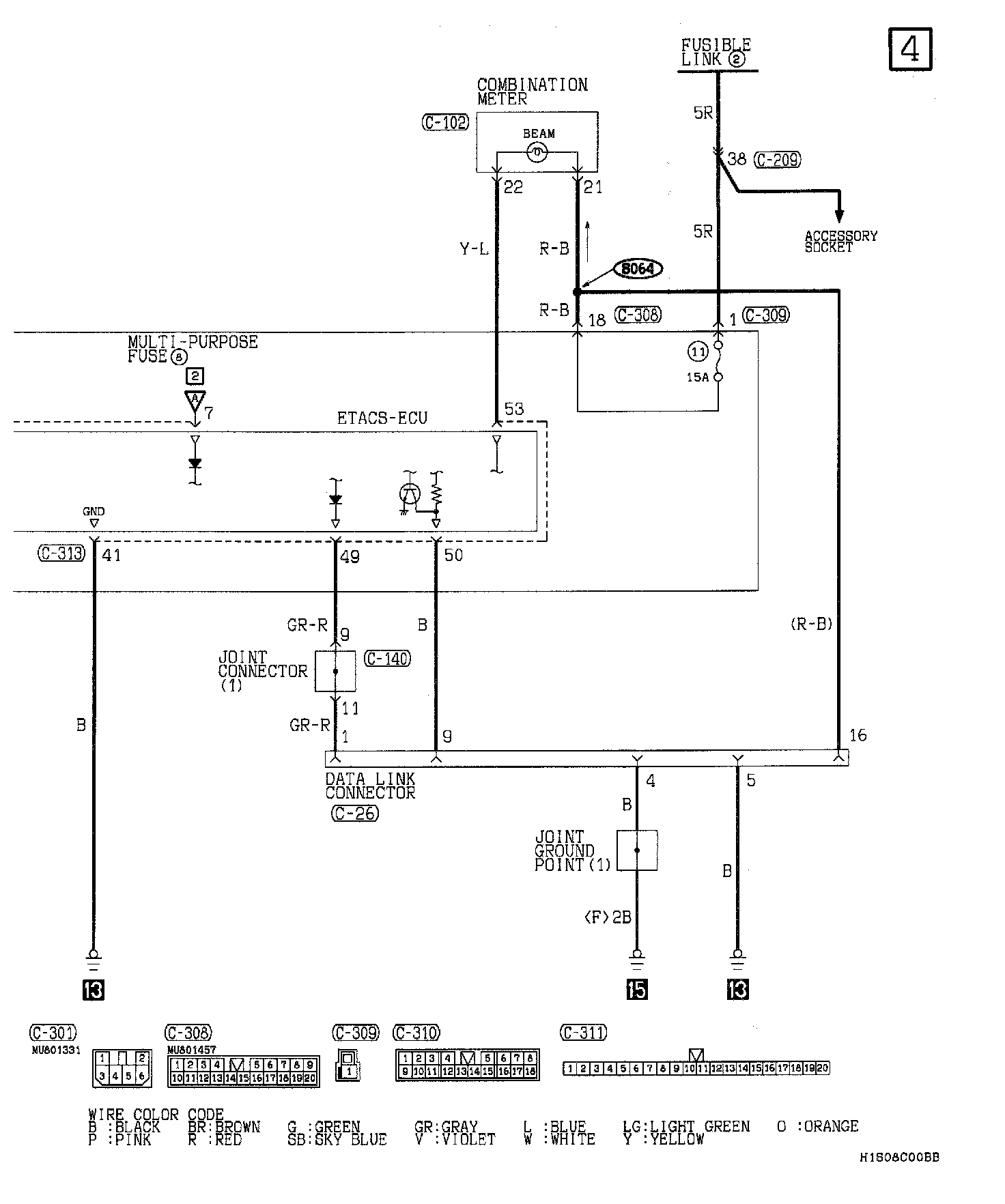

Headlight <Vehicles For U.S> Part 4:
