Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Vehicles With TCL

Vehicles With TCL

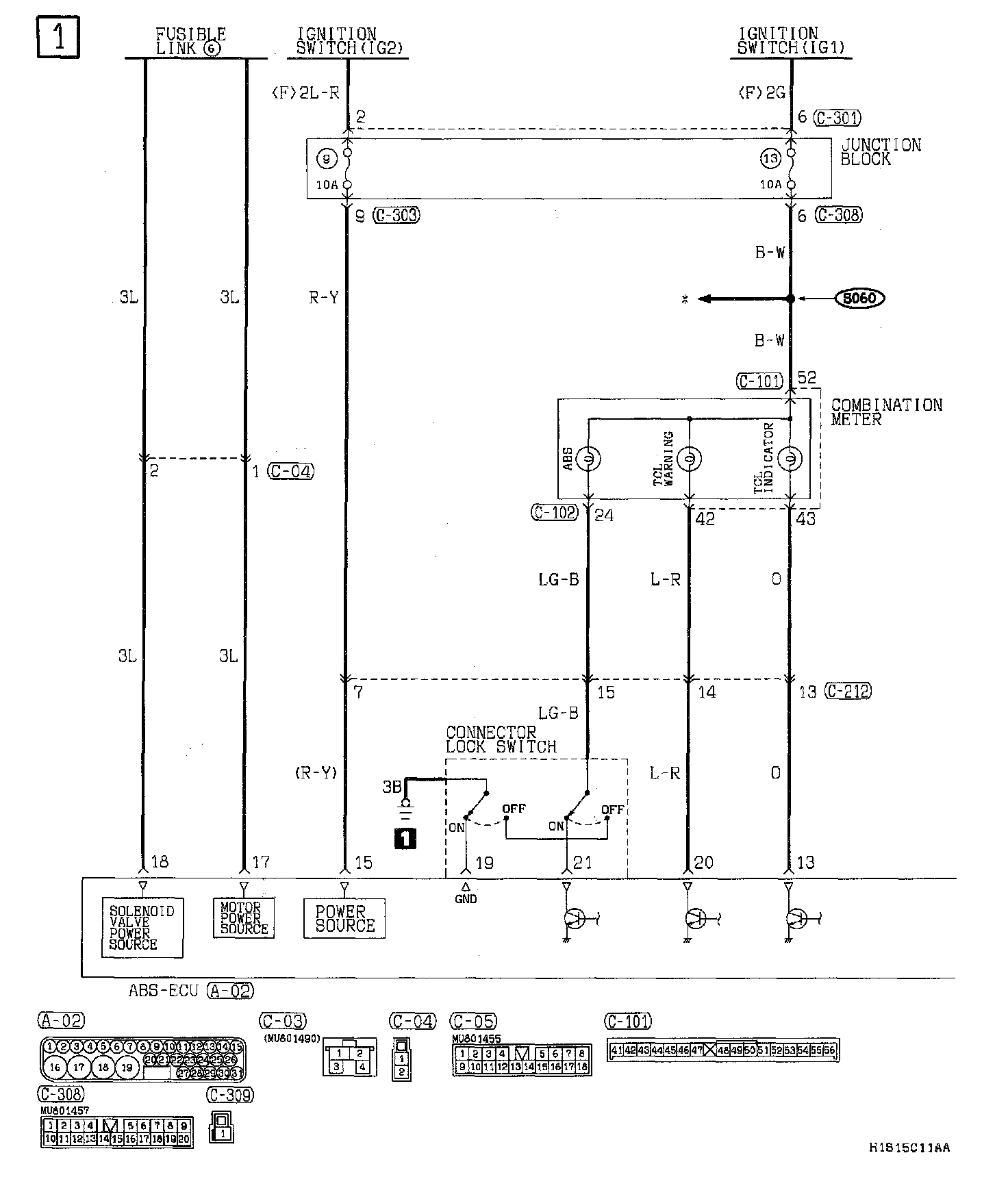

Anti-Lock Braking System(ABS) <Vehicles With TCL> Part 1:

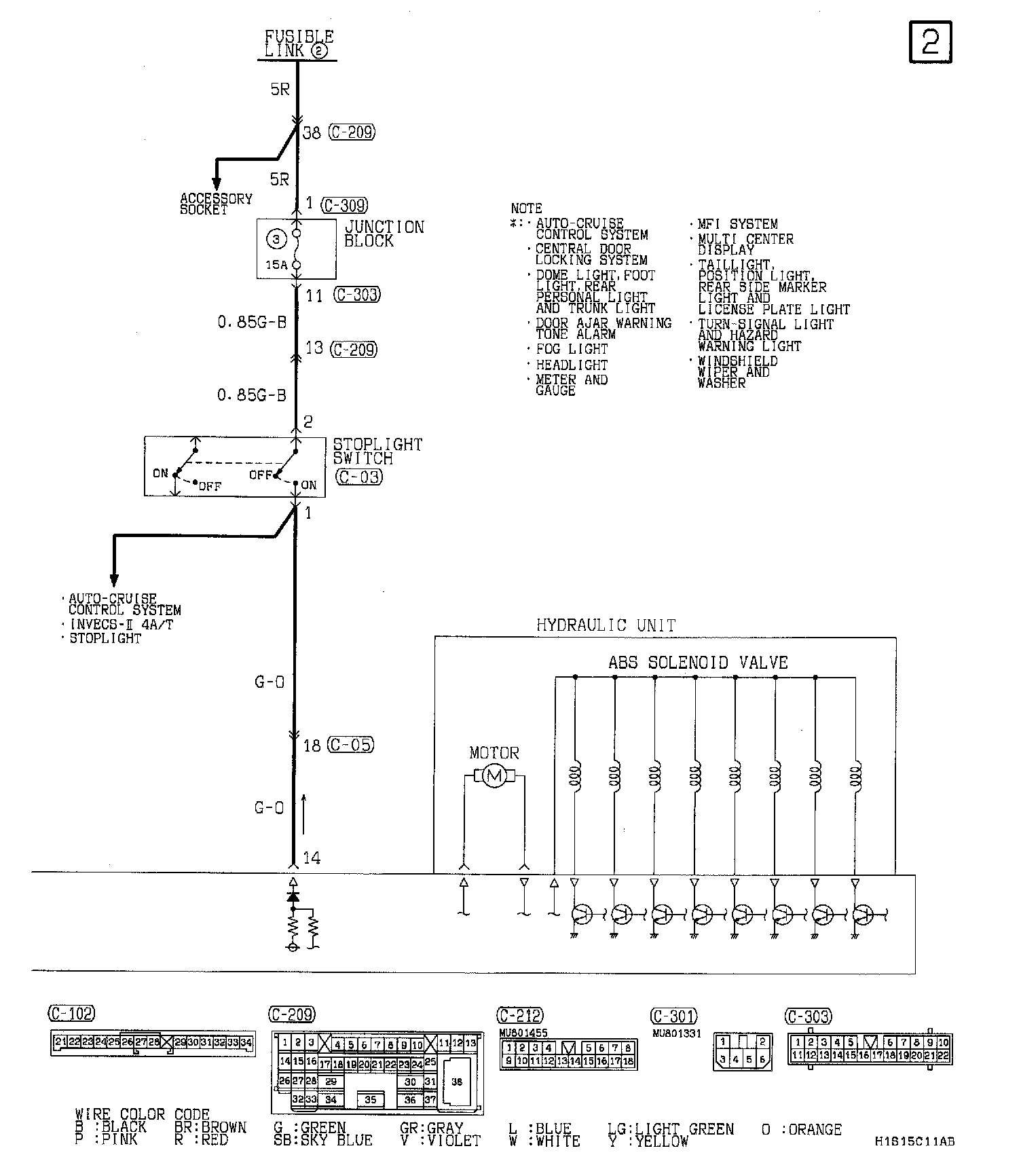

Anti-Lock Braking System(ABS) <Vehicles With TCL> Part 2:

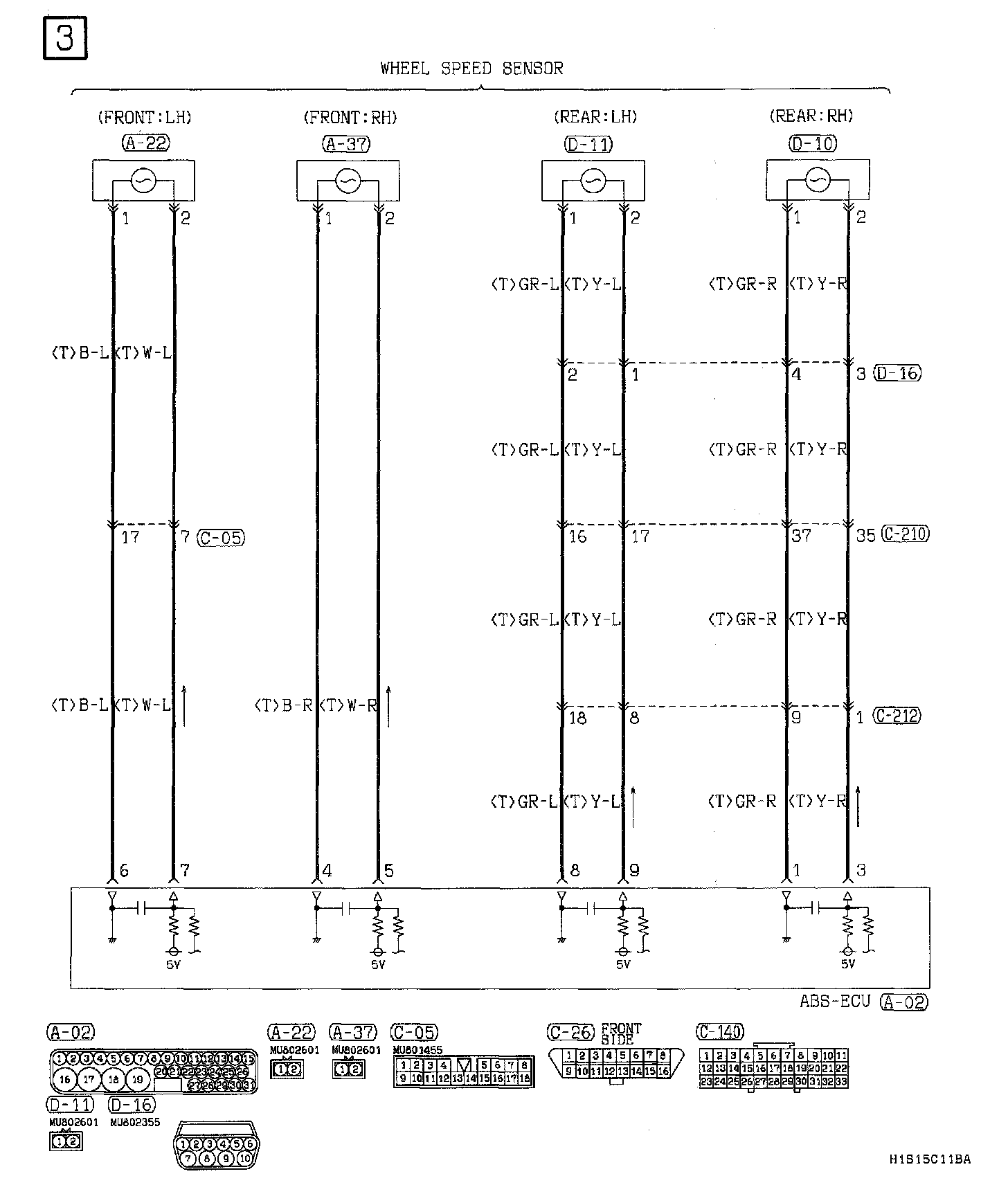

Anti-Lock Braking System(ABS) <Vehicles With TCL> Part 3:

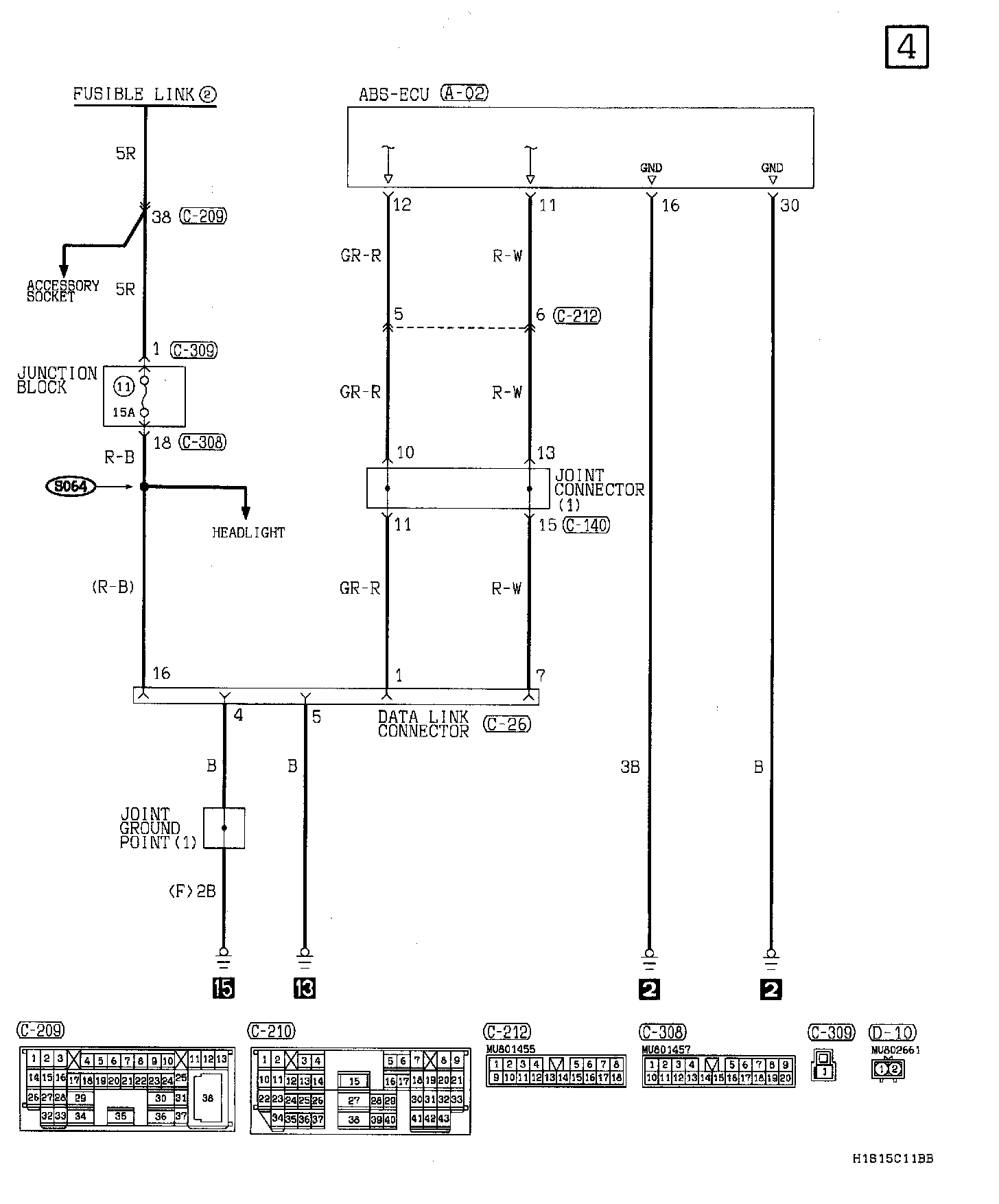

Anti-Lock Braking System(ABS) <Vehicles With TCL> Part 4:
