D Connector - Floor and Roof
D Connector - Floor and Roof

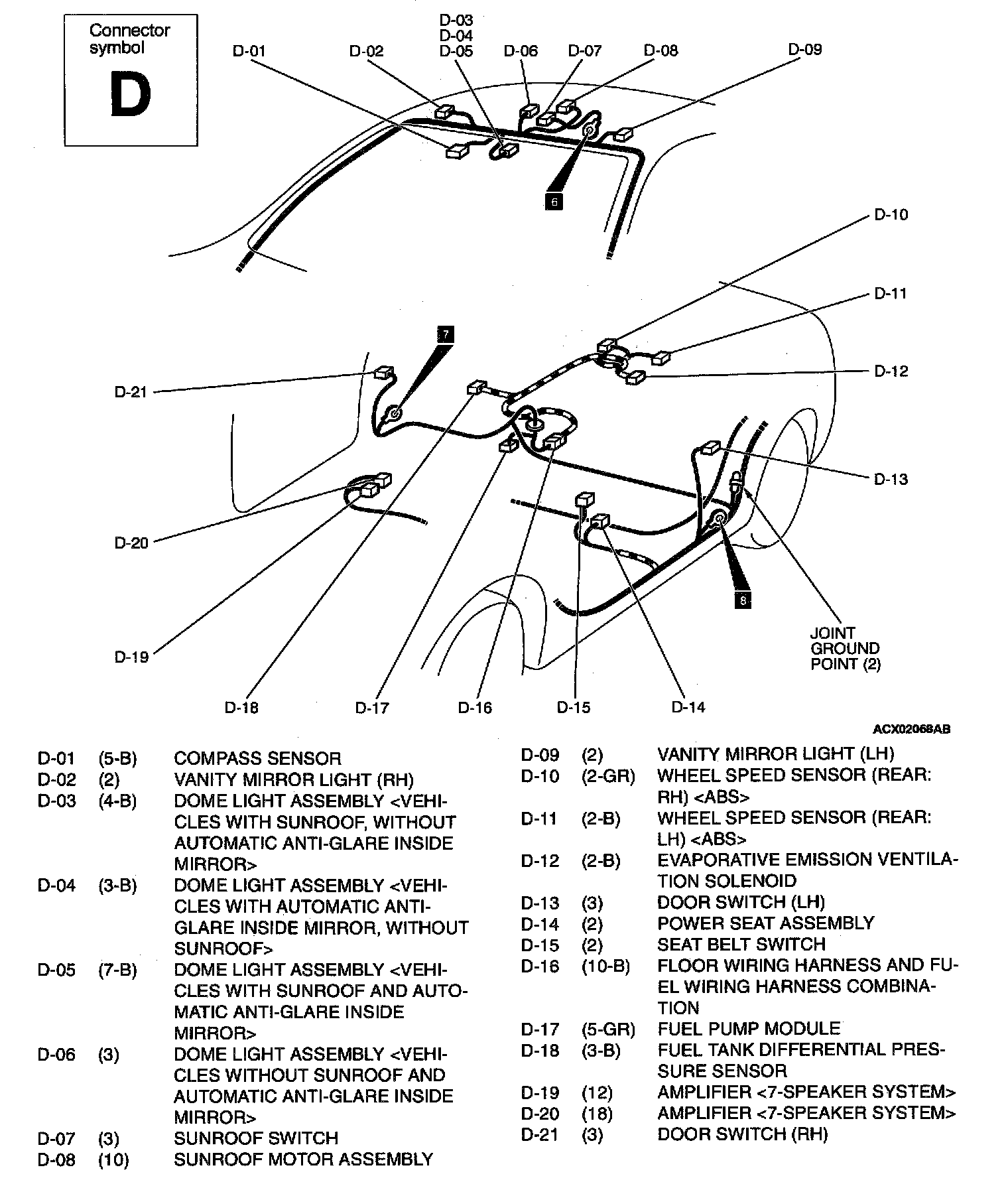

Floor And Roof - D Connector (01 (5-B) Thru 21 (3)):
