A Connector - Engine Compartment
A Connector - Engine Compartment

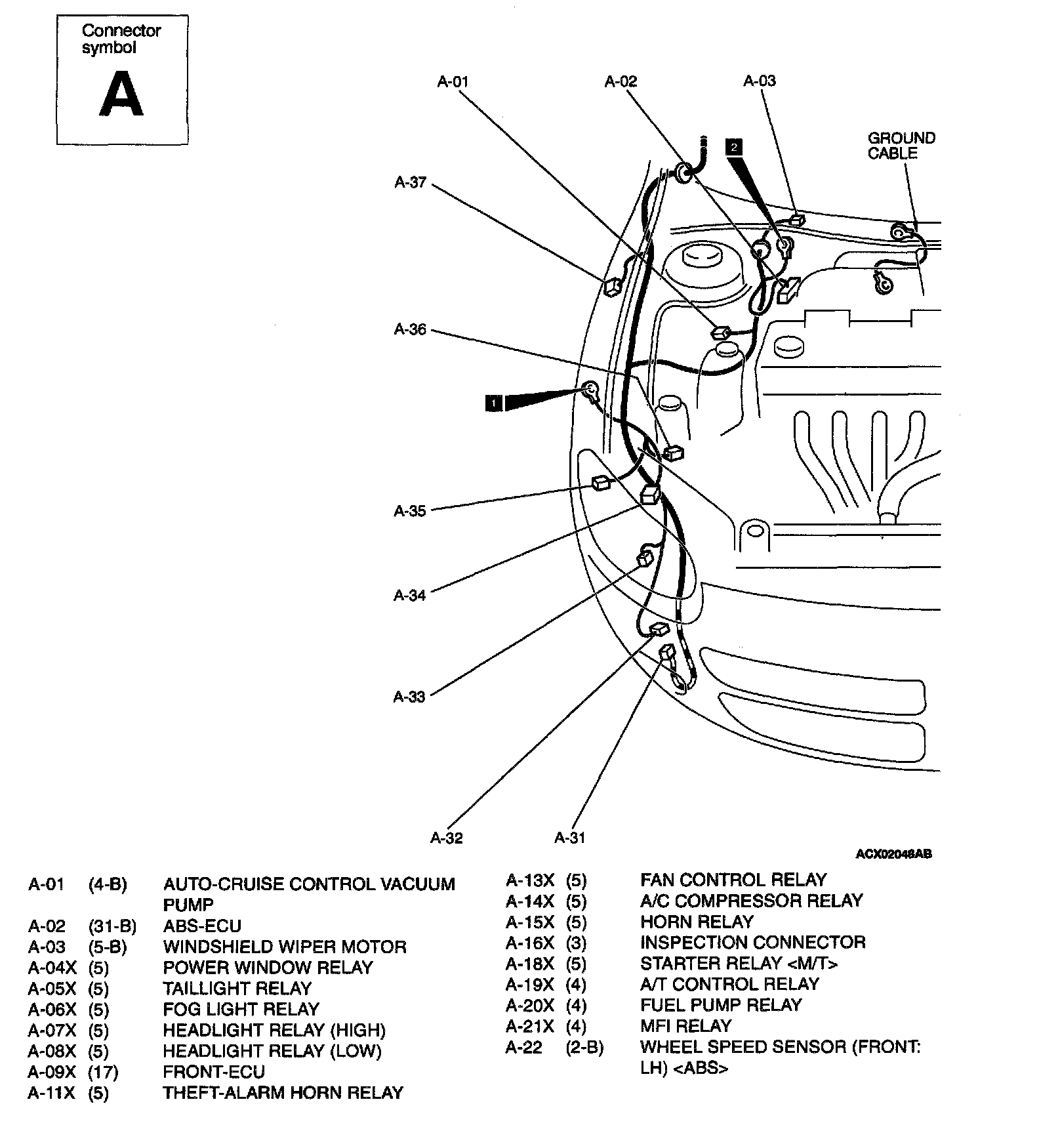

Engine Compartment - A Connector (01 (4-B) Thru 22 (2-B)):

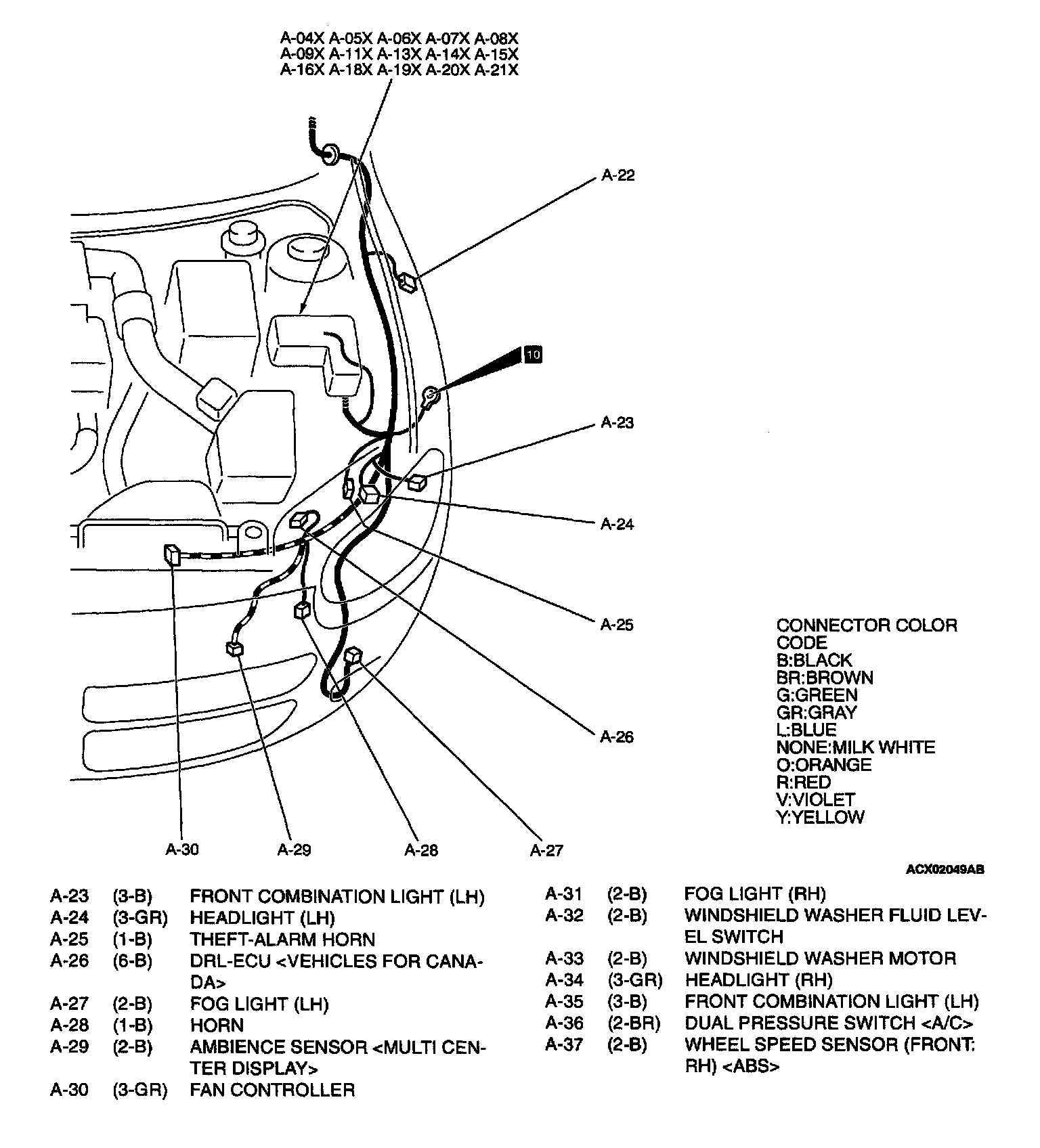

Engine Compartment - A Connector (23 (3-B) Thru 37 (2-B)):
