Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Components >> Other Devices

Other Devices

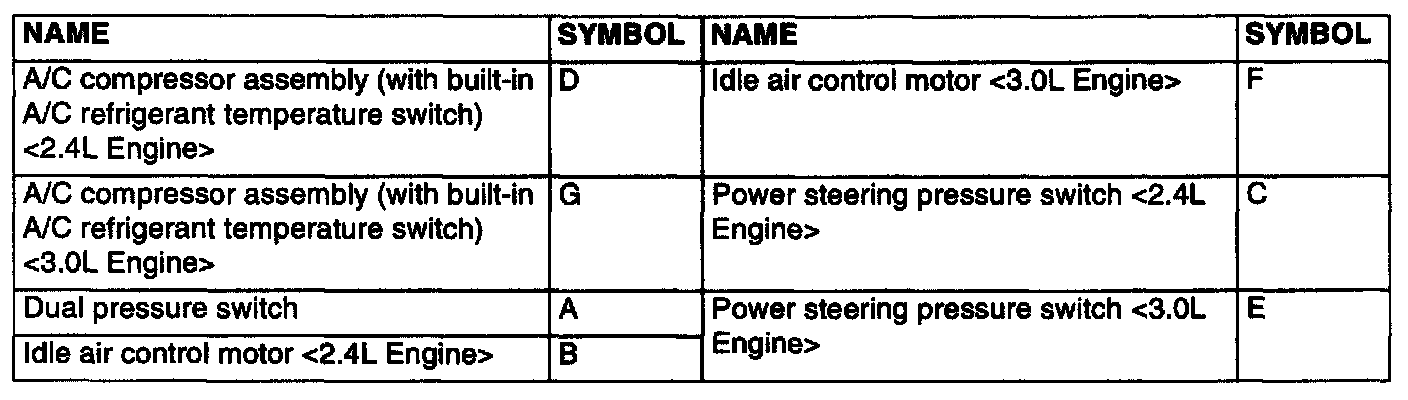

Location Chart:

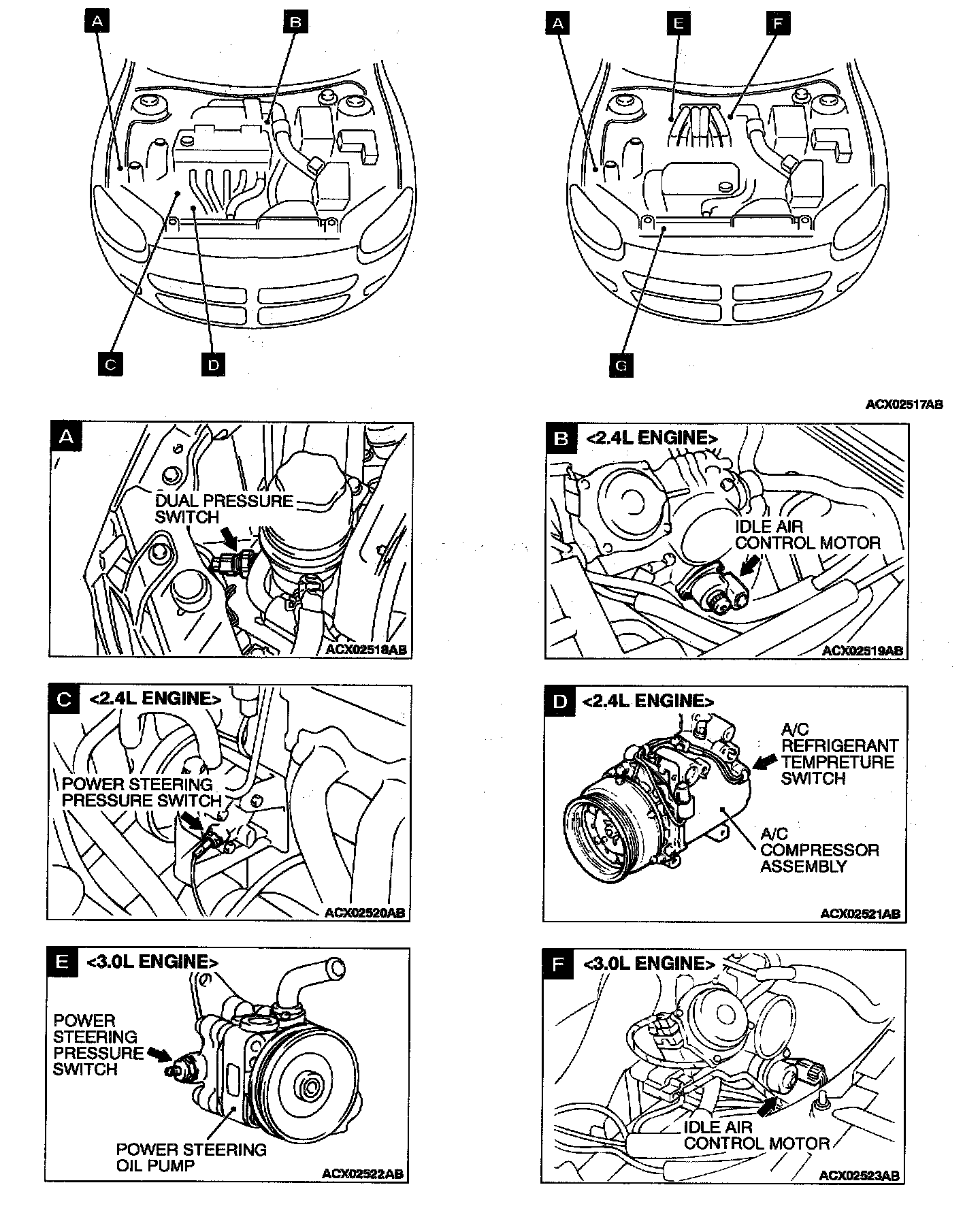

Overall View And Views A - F:

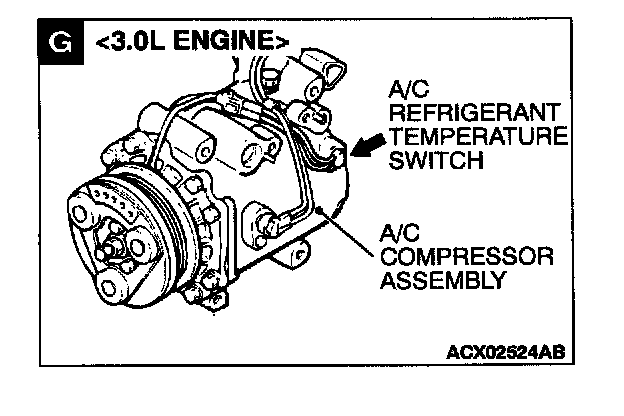

View G:
