Pinout Values and Diagnostic Parameters

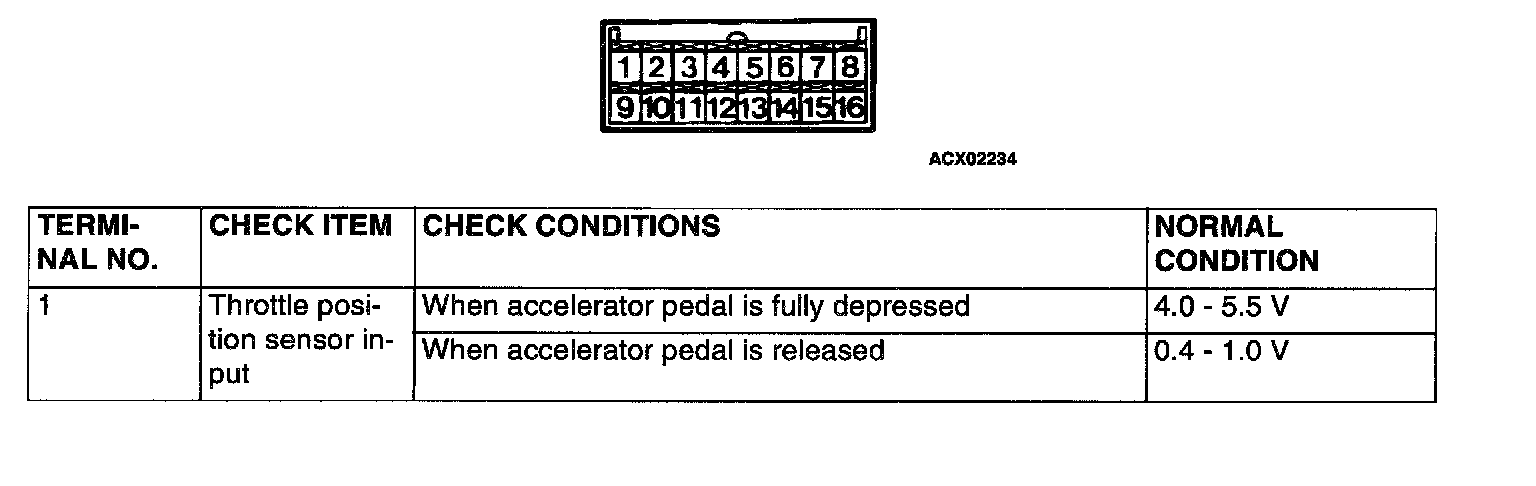

Check Auto-cruise Control-ECU Terminals Part 1:

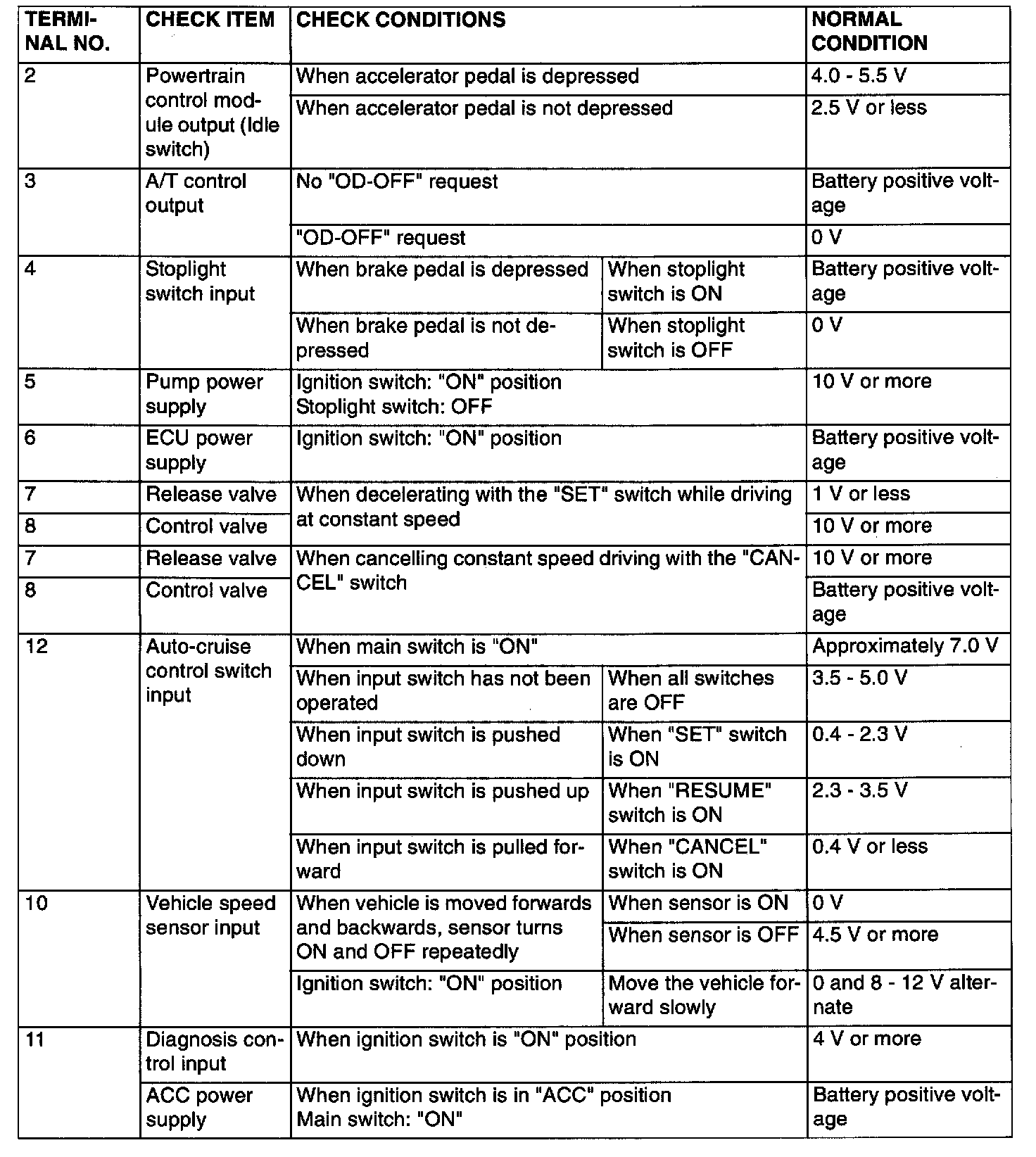

Check Auto-cruise Control-ECU Terminals Part 2:

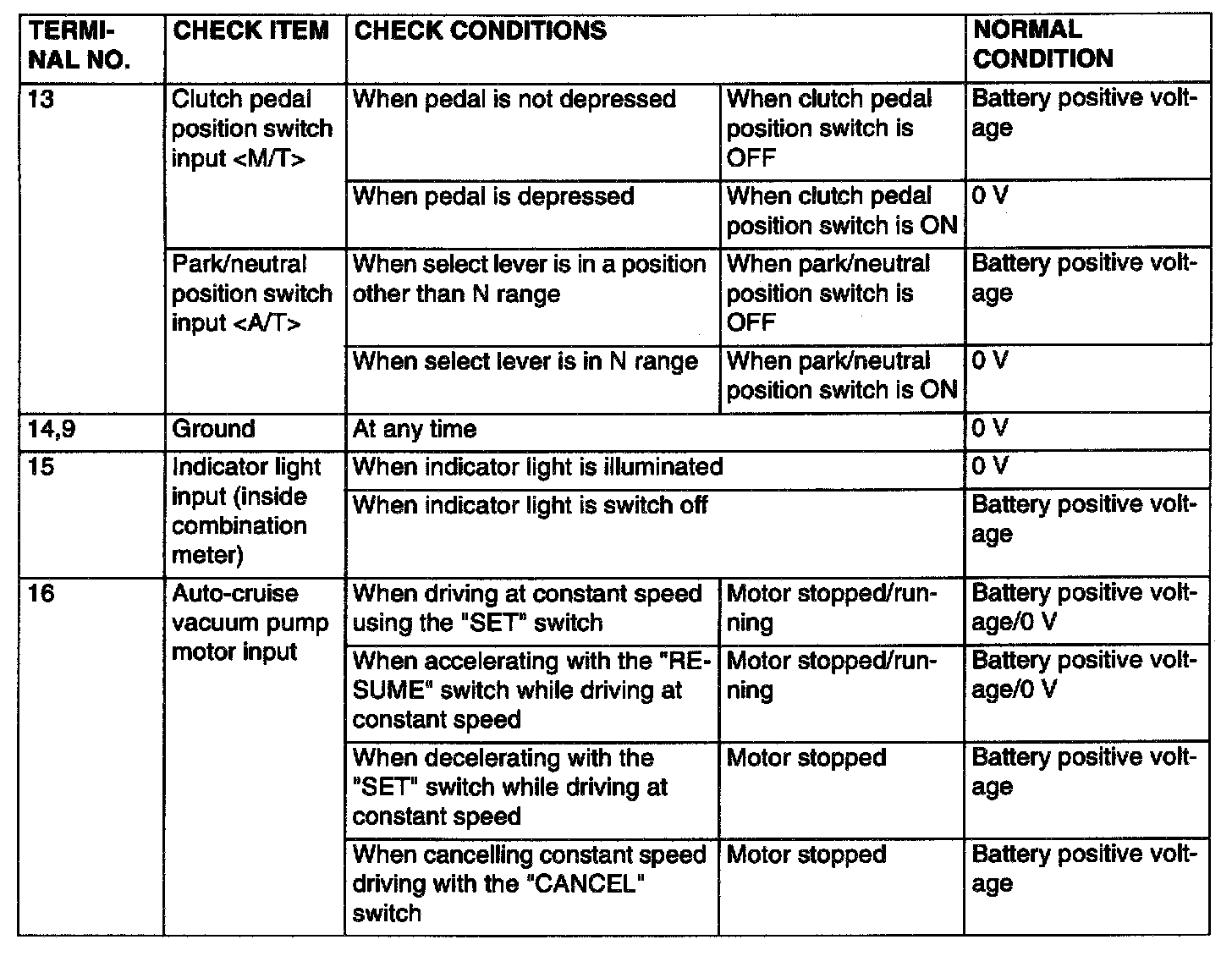

Check Auto-cruise Control-ECU Terminals Part 3:
