Vacuum Brake Booster Check Valve: Testing and Inspection

CAUTION: The check valve should not be removed from the vacuum hose.

1. Remove the vacuum hose.








CAUTION: If the check valve is defective, replace it as an assembly unit together with the vacuum hose.

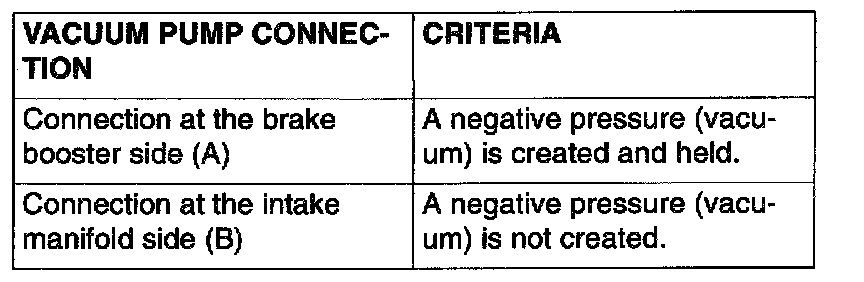

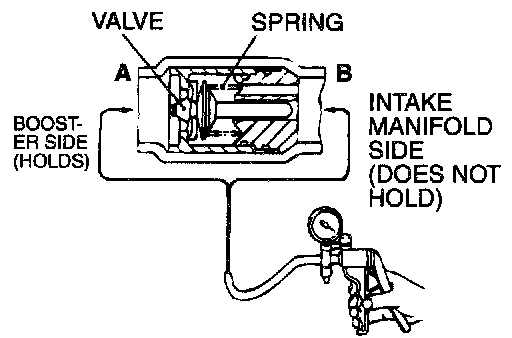

2. Check the operation of the check valve by using a vacuum pump.
