Brake Proportioning/Combination Valve: Service and Repair

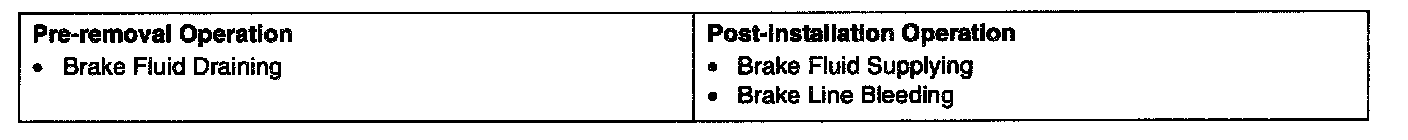

REMOVAL AND INSTALLATION








INSTALLATION SERVICE POINT
>>A<< Brake Pipe Connection





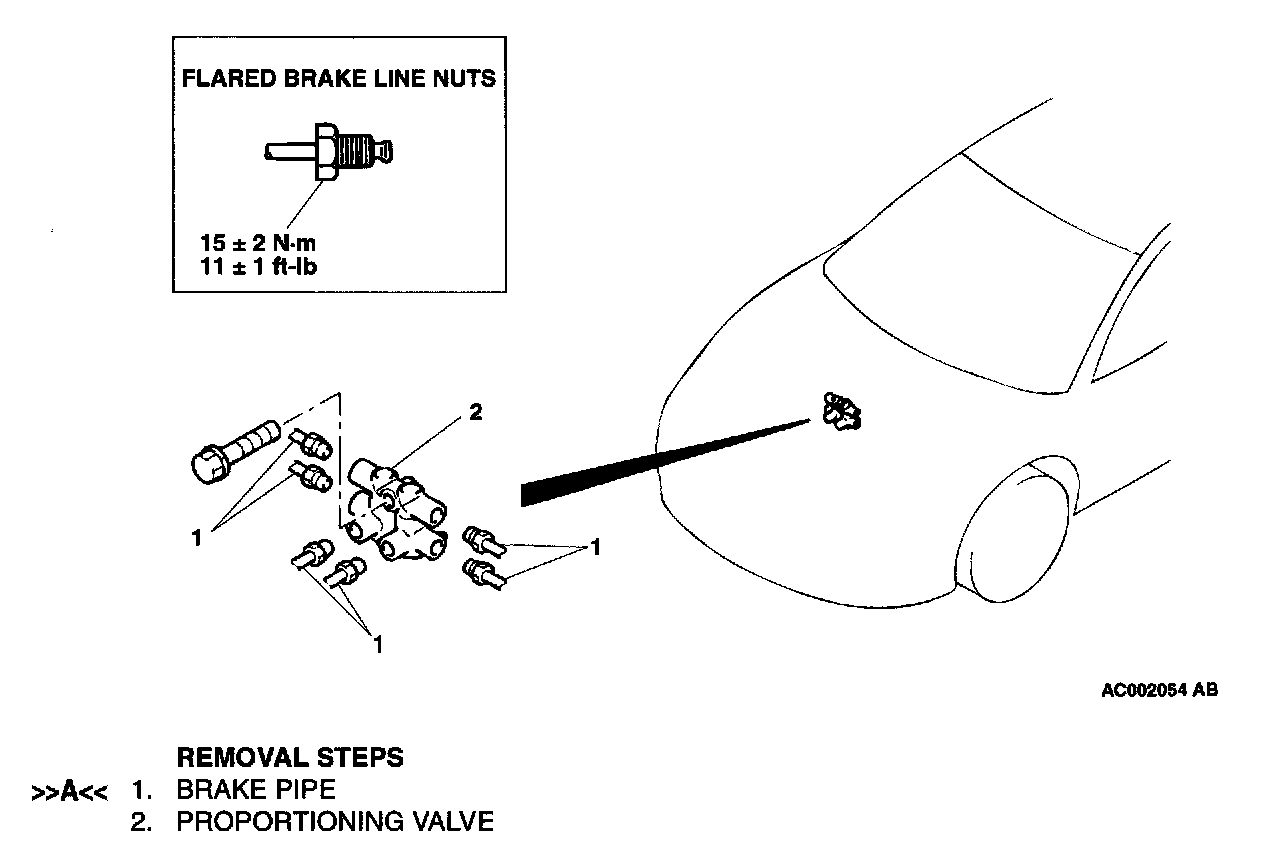

Connect the pipes to the hydraulic unit as shown in the illustration.
1. Proportioning valve - Rear brake (1-1-1)
2. Proportioning valve - Rear brake (RH)
3. Proportioning valve - Front brake (RH)
4. Proportioning valve - Front brake (1-1-1)
5. Proportioning valve - Master cylinder (secondary)
6. Proportioning valve - Master cylinder (primary)
