Sunroof / Moonroof Drain: Service and Repair

<>DRAIN HOSE REMOVAL

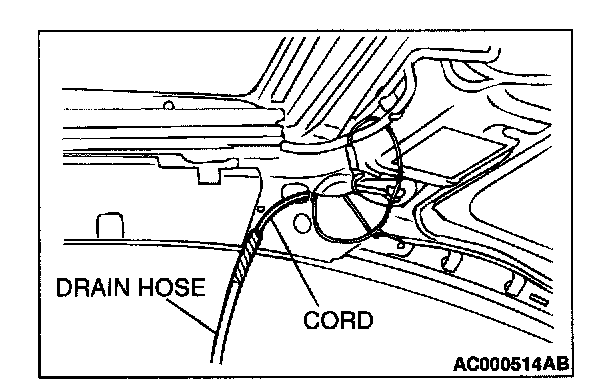

Tie a cord to the end of the drain hose, and wind tape around the tie until it is smooth. Then pull the drain hose out into the wheel housing.

<

1. Tie the cord that was used during removal to the end of the drain hose, and wind tape around it until it is smooth.
2. Pull the cord to pull through the drain hose.

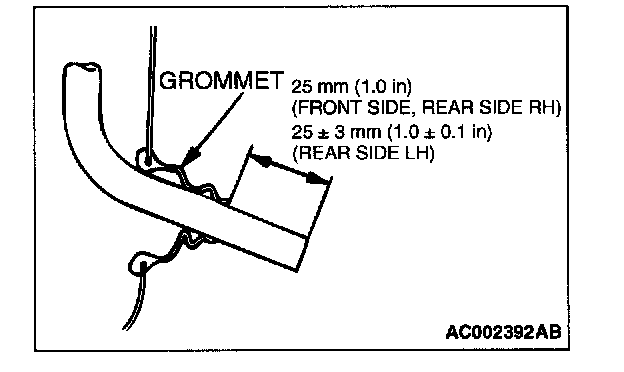

3. Install the grommet, and then position the drain hose so that it protrudes from the grommet.
