Removal and Installation
INSTALLATION SERVICE POINT>>A<

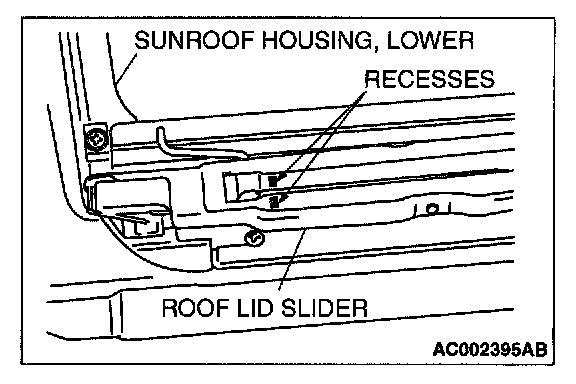

Align the recesses to set the roof lid slider to its fully closed position.
>>B<
CAUTION: Roof lid slider recesses position error must be kept within 2.5 mm (0.01 inch) or less.
When roof lid slider is set to its fully closed position, it must be at the recesses position.
If root lid slider is positioned at the rear of recesses, carry out the following procedure.
1. Remove sunroof motor assembly.
2. Fit sunroof motor firmly.
3. Install sunroof motor assembly
4. Check recesses position again.
