P1795

TECHNICAL DESCRIPTION
- When a malfunction of the throttle position sensor is detected, the Transaxle control CPU inside the powertrain control module (PCM) outputs a malfunction signal to the engine control CPU inside the PCM.

DTC SET CONDITIONS

Check Conditions, Judgment Criteria
- Throttle position sensor failure signal is input to the engine control CPU from the transaxle control CPU.

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Throttle position sensor failed.
- Open or shorted throttle position sensor circuit, or loose connector.
- PCM failed.

DIAGNOSIS

Required Special Tools
MB991502: Scan Tool(MUT-II)




STEP 1. Using scan tool MB991502, read the A/T diagnostic trouble code (DTC).

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK"(OFF) position before connecting or disconnecting scan tool MB991502.

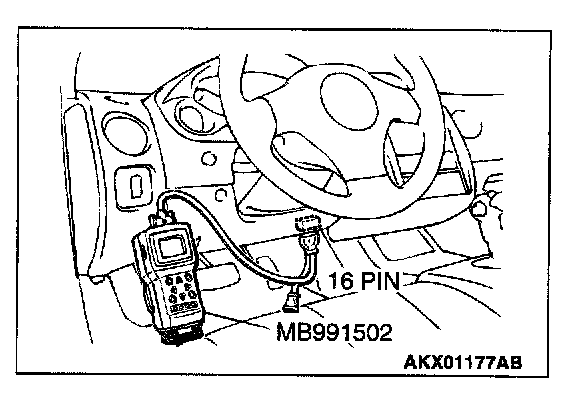

1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Check the A/T-DTC.
4. Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the A/T-DTC is output?

YES: Refer to Automatic Transaxle Diagnosis - Diagnostic Trouble Code Chart.

NO: If DTC P1795 is output again after the MFI-DTC has been erased, replace the PCM. Then check that the DTC P1795 does not reset.
