P0150
Connectors:

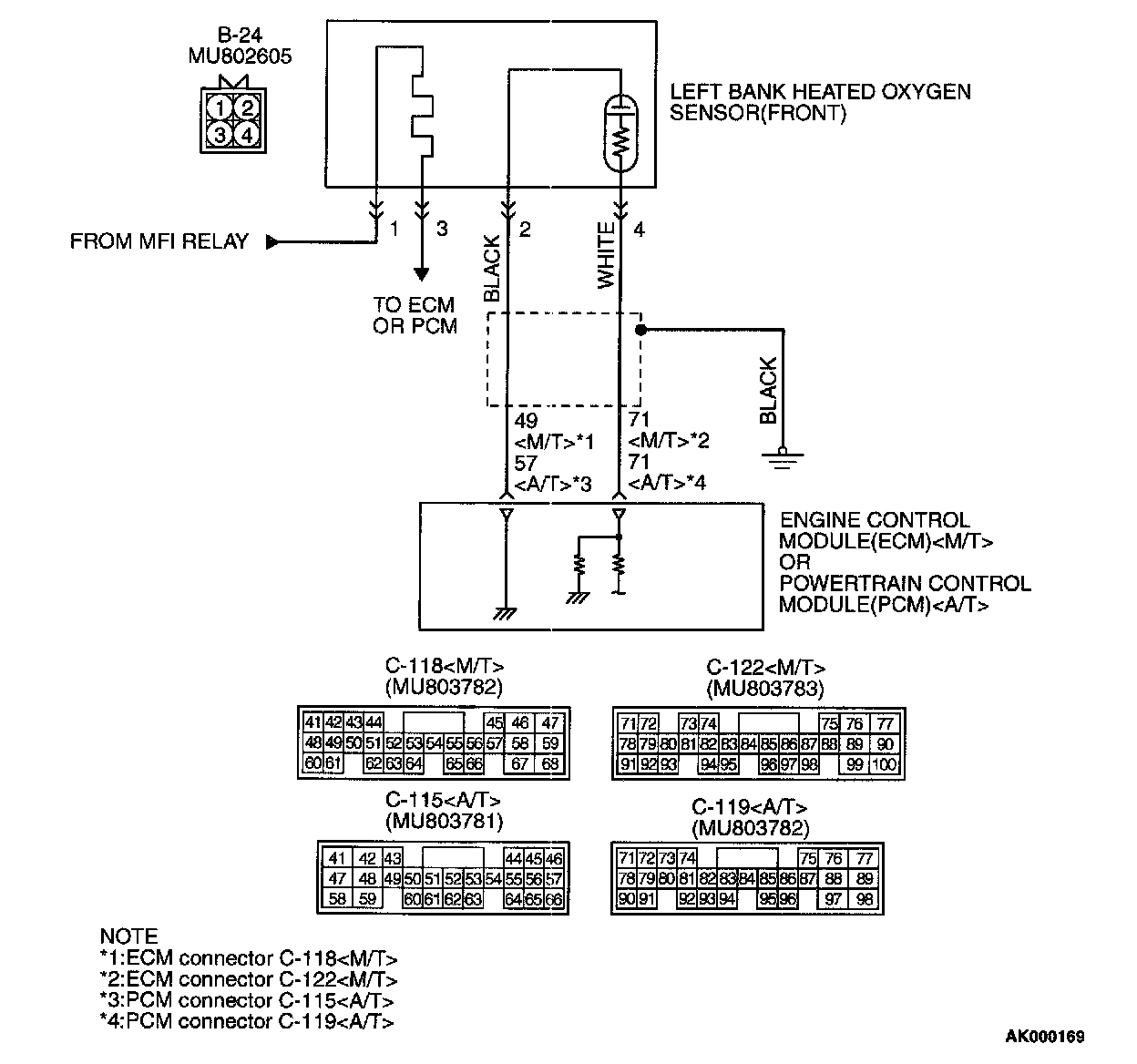

CIRCUIT OPERATION
- A voltage corresponding to the oxygen concentration in the exhaust gas is sent to the ECM (terminal 71)
- Terminal 2 of the left bank heated oxygen sensor (front) is grounded with ECM (terminal 49)
TECHNICAL DESCRIPTION
- The left bank heated oxygen sensor (front) detects the concentration of oxygen in the exhaust gas; it converts that data to voltage, and sends it to the ECM
- When the left bank heated oxygen sensor (front) begins to deteriorate, the heated oxygen sensor signal response deteriorates also.
- The ECM
DTC SET CONDITIONS
Check Conditions
- Left bank heated oxygen sensor (front) signal voltage has continued to be 0.2 volt or lower for three minutes or more after engine starting sequence was completed.
- Engine coolant temperature is higher than 82 °C (180 °F).
- Engine speed is higher than 1,200 r/min.
- Volumetric efficiency is higher than 25 percent.
- Monitoring time: 7 seconds.
Judgment Criteria
- Input voltage supplied to the ECM
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Left bank heated oxygen sensor (front) deteriorated.
- Open circuit in left bank heated oxygen sensor (front) output line.
- Open circuit in left bank heated oxygen sensor (front) ground line.
- ECM failed.
- PCM failed
DIAGNOSIS
Required Special Tools
MB991502: Scan Tool(MUT-II)
MD998464: Test Harness
STEP 1. Using scan tool MB991502, check data list item 11: Heated Oxygen Sensor Bank 2, Sensor 1 (left front).
CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK"(OFF) position before connecting or disconnecting scan tool MB991502.

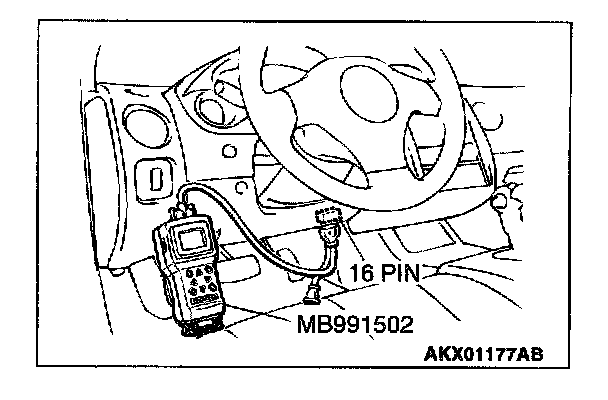

1. Connect scan tool MB991502 to the data link connector.
2. Start the engine and run at idle.
3. Set scan tool MB991502 to the data reading mode for item 11, Heated Oxygen Sensor Bank 2, Sensor 1 (left front).
- Warming up the engine. When the engine is revved, the output voltage should be 0.6 to 1.0 volt.
- Warming up the engine. When the engine is idling, the output voltage should repeat 0.4 volt and 0.6 to 1.0 volt alternately.
4. Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is the sensor operating properly?
YES: It can be assumed that this malfunction is intermittent. Refer to How to Use Troubleshooting/Inspection Service Points.
NO: Go to Step 2.

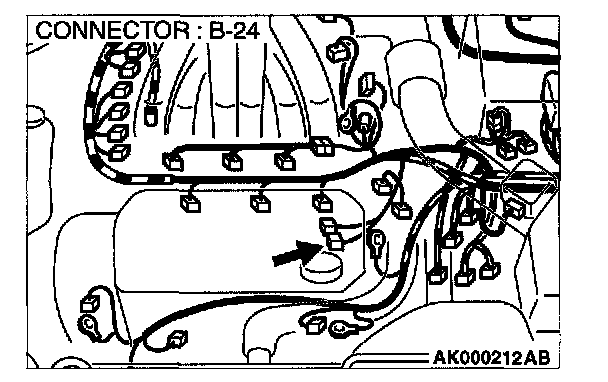

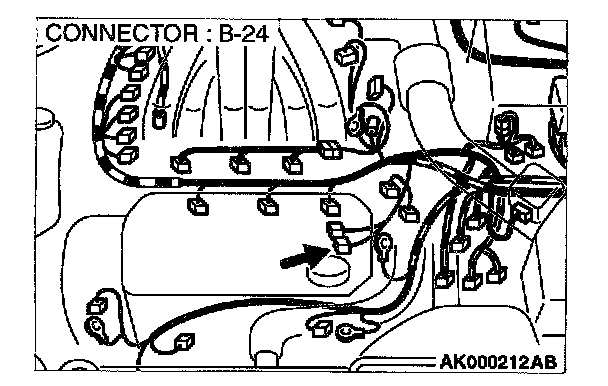

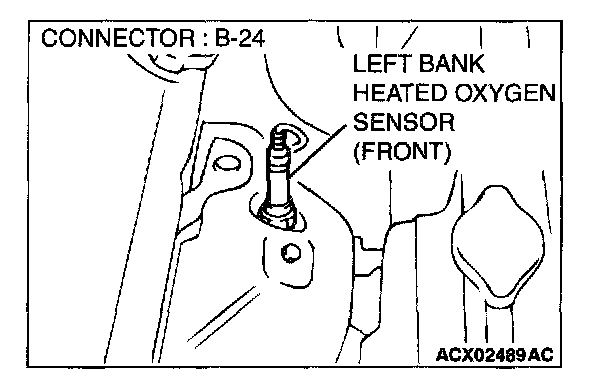

STEP 2. Check the sensor output voltage at left bank heated oxygen sensor (front) connector B-24 by backprobing.
1. Do not disconnect the connector B-24.
2. Start the engine and run at idle.
3. Measure the voltage between terminal 4 and ground by backprobing.
- Warming up the engine. When the engine is 2,500 r/min, the output voltage should repeat 0 to 0.8 volt alternately.
4. Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is the voltage normal?
YES: Go to Step 3.
NO: Go to Step 7.

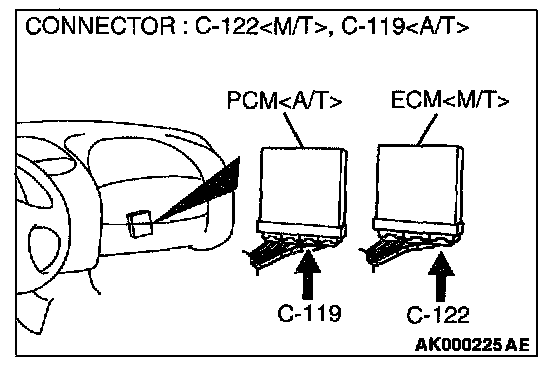

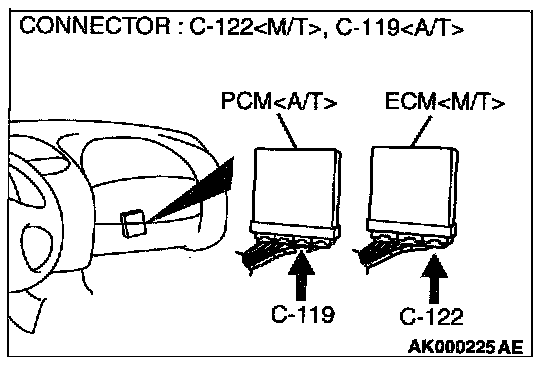

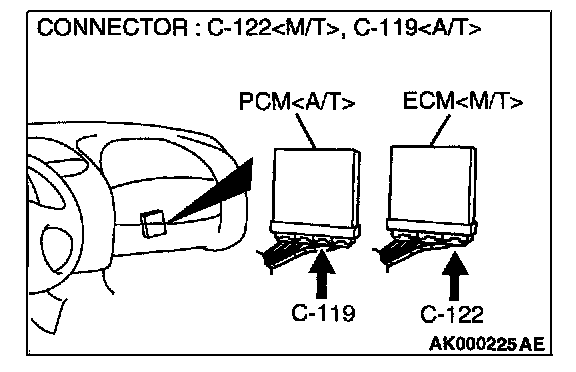

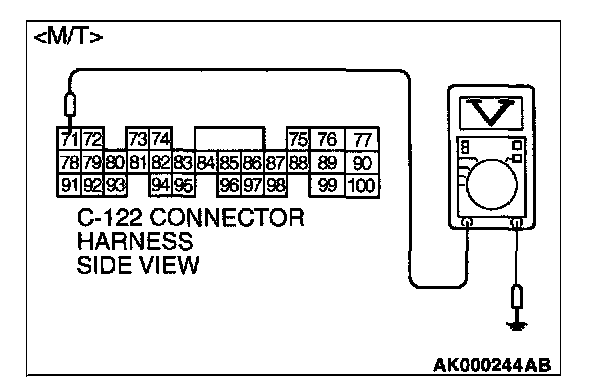

STEP 3. Check the sensor output voltage at ECM connector C-122
1. Do not disconnect the connector C-122
2. Start the engine and run at idle.
3. Measure the voltage between terminal 71 and ground by backprobing.
- Warming up the engine. When the engine is 2,500 r/min, the output voltage should repeat 0 to 0.8 volt alternately.
4. Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is the voltage normal?
YES: Go to Step 4.
NO: Go to Step 6.

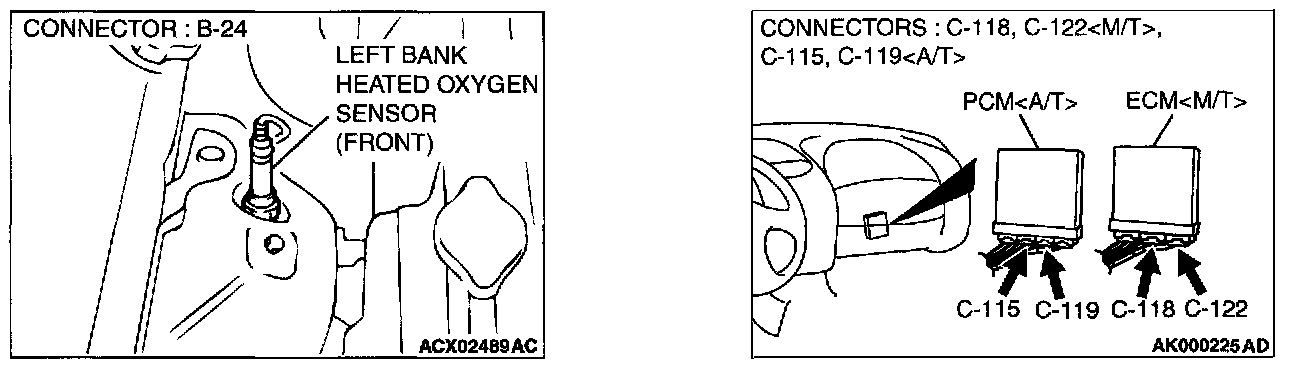

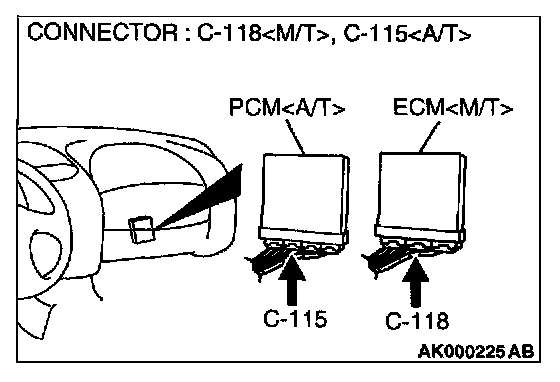

STEP 4. Check connector B-24 at left bank heated oxygen sensor (front) and connector C-122 at ECM
Q: Is the connector in good condition?
YES: Go to Step 5.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then go to Step 15.
STEP 5. Using scan tool MB991502, check data list item 11: Heated Oxygen Sensor Bank 2, Sensor 1 (left front).
CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK"(OFF) position before connecting or disconnecting scan tool MB991502.

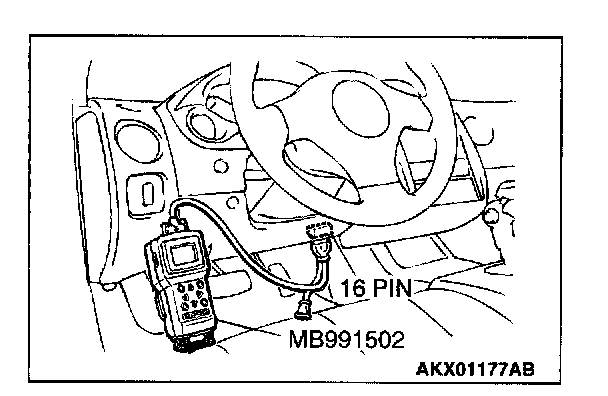

1. Connect scan tool MB991502 to the data link connector.
2. Start the engine and run at idle.
3. Set scan tool MB991502 to the data reading mode for item 11, Healed Oxygen Sensor Bank 2, Sensor 1 (left front).
- Warming up the engine. When the engine is revved, the output voltage should be 0.6 to 1.0 volt.
- Warming up the engine. When the engine is idling, the output voltage should repeat 0.4 volt and 0.6 to 1.0 volt alternately.
4. Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is the sensor operating properly?
YES: It can be assumed that this malfunction is intermittent. Refer to How to Use Troubleshooting/Inspection Service Points.
NO: Replace the ECM or PCM. Then go to Step 15.
STEP 6. Check connector B-24 at left bank heated oxygen sensor (front) and connector C-122 at ECM
Q: Is the connector in good condition?
YES: Repair harness wire between left bank heated oxygen sensor (front) connector B-24 terminal 4 and ECM connector C-122 terminal 71
NO: Repair or replace it. Refer to Harness Connector Inspection. Then go to Step 15.

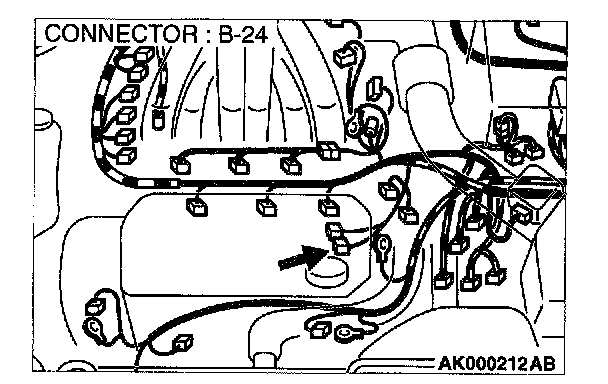

STEP 7. Check connector B-24 at left bank heated oxygen sensor (front) for damage.
Q: Is the connector in good condition?
YES: Go to Step 8.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then go to Step 15.

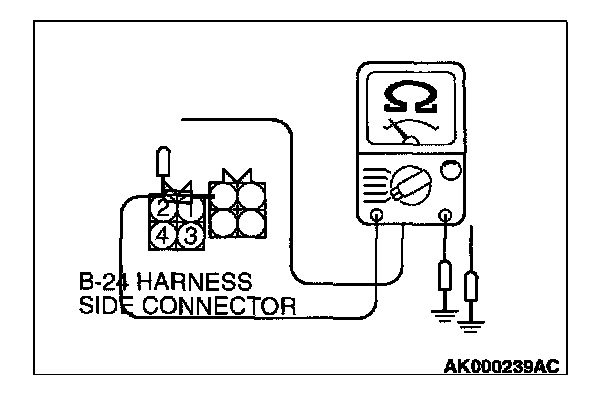

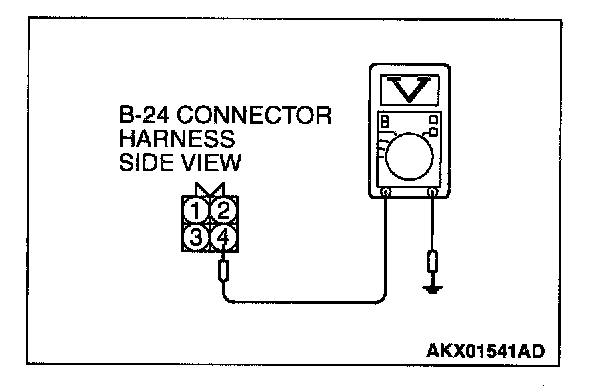

STEP 8. Check the continuity at left bank heated oxygen sensor (front) harness side connector B-24.
1. Disconnect the connector B-24 and measure at the harness side.
2. Check for the continuity between terminal 2 and ground. Should be less than 2 Ohms.
Q: Is the continuity normal?
YES: Go to Step 11.
NO: Go to Step 9.

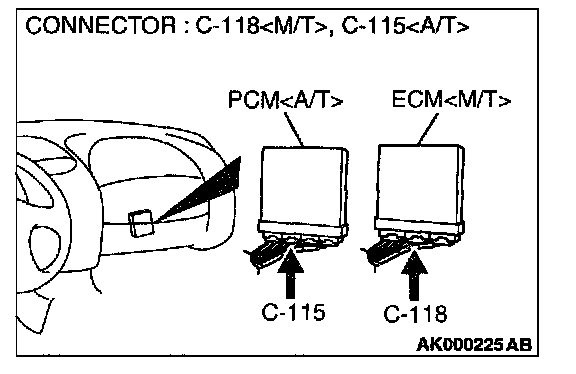

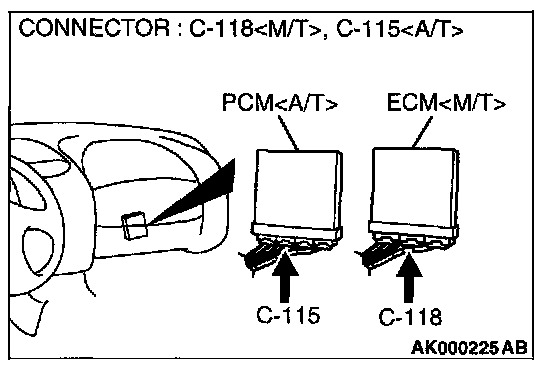

STEP 9. Check connector C-118 at ECM
Q: Is the connector in good condition?
YES: Go to Step 10.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then go to Step 15
STEP 10. Check for open circuit and harness damage between left bank heated oxygen sensor (front) connector B-24 terminal 2 and ECM connector C-118 terminal 49
Q: Is the harness wire in good condition?
YES: Replace the ECM or PCM. Then go to Step 15.
NO: Repair it. Then go to Step 15.

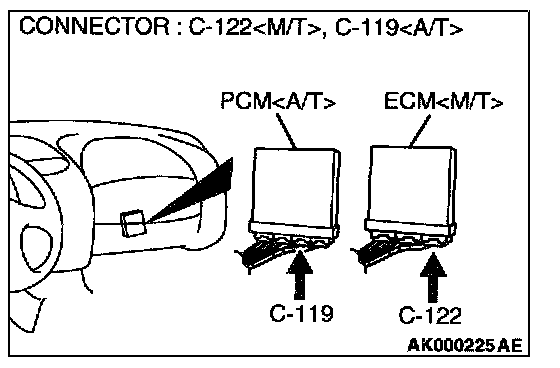

STEP 11. Check connector C-122 at ECM
Q: Is the connector in good condition?
YES: Go to Step 12.
NO: Repair or replace it. Then go to Step 15.
STEP 12. Check for harness damage between left bank heated oxygen sensor (front) connector B-24 terminal 2 and ECM connector C-118 terminal 49
Q: Is the harness wire in good condition?
YES: Go to Step 13.
NO: Repair it. Then go to Step 15.
STEP 13. Check for short circuit to ground and harness damage between left bank heated oxygen sensor (front) connector B-24 terminal 4 and ECM connector C-122 terminal 71
Q: Is the harness wire in good condition?
YES: Go to Step 14.
NO: Repair it. Then go to Step 15.
STEP 14. Check the left bank heated oxygen sensor (front).

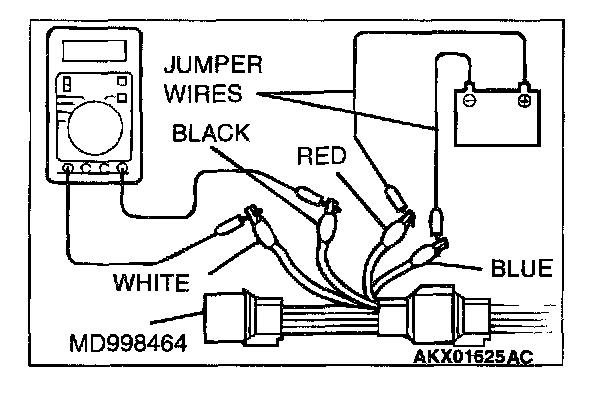

1. Disconnect the left bank heated oxygen sensor (front) connector B-24 and connect test harness special tool, MD998464, to the connector on the left bank heated oxygen sensor (front) side.
2. Warm up the engine until engine coolant 80 °C (176 °F) or higher.
CAUTION: Be very careful when connecting the jumper wires; incorrect connection can damage the left bank heated oxygen sensor (front).
3. Use the jumper wires to connect terminal 1 (red clip) to the positive battery terminal and terminal 3 (blue clip) to the negative battery terminal.
4. Connect a digital volt meter between terminal 2 (black clip) and terminal 4 (white clip).
5. While repeatedly revving the engine, measure the left bank heated oxygen sensor (front) output voltage.
Standard value: 0.6 - 1.0 V
Q: Is the voltage at the standard value?
YES: Replace the ECM or PCM. Then go to Step 15.
NO: Replace the left bank heated oxygen sensor (front). Then go to Step 15.
STEP 15. Test the OBD-II drive cycle.
1. Carry out a test drive with the drive cycle pattern. Refer to Procedure 4 - Heated oxygen Sensor Monitor and Procedure 6 - Other Monitor.
2. Check the diagnostic trouble code(DTC).
Q: Is the DTC P0150 is output?
YES: Retry the troubleshooting.
NO: The inspection is complete.
