Symptom Chart

NOTE: Check that the engine control module (ECM) or powertrain control module (PCM) ground circuit is normal before checking for the cause of the problem.

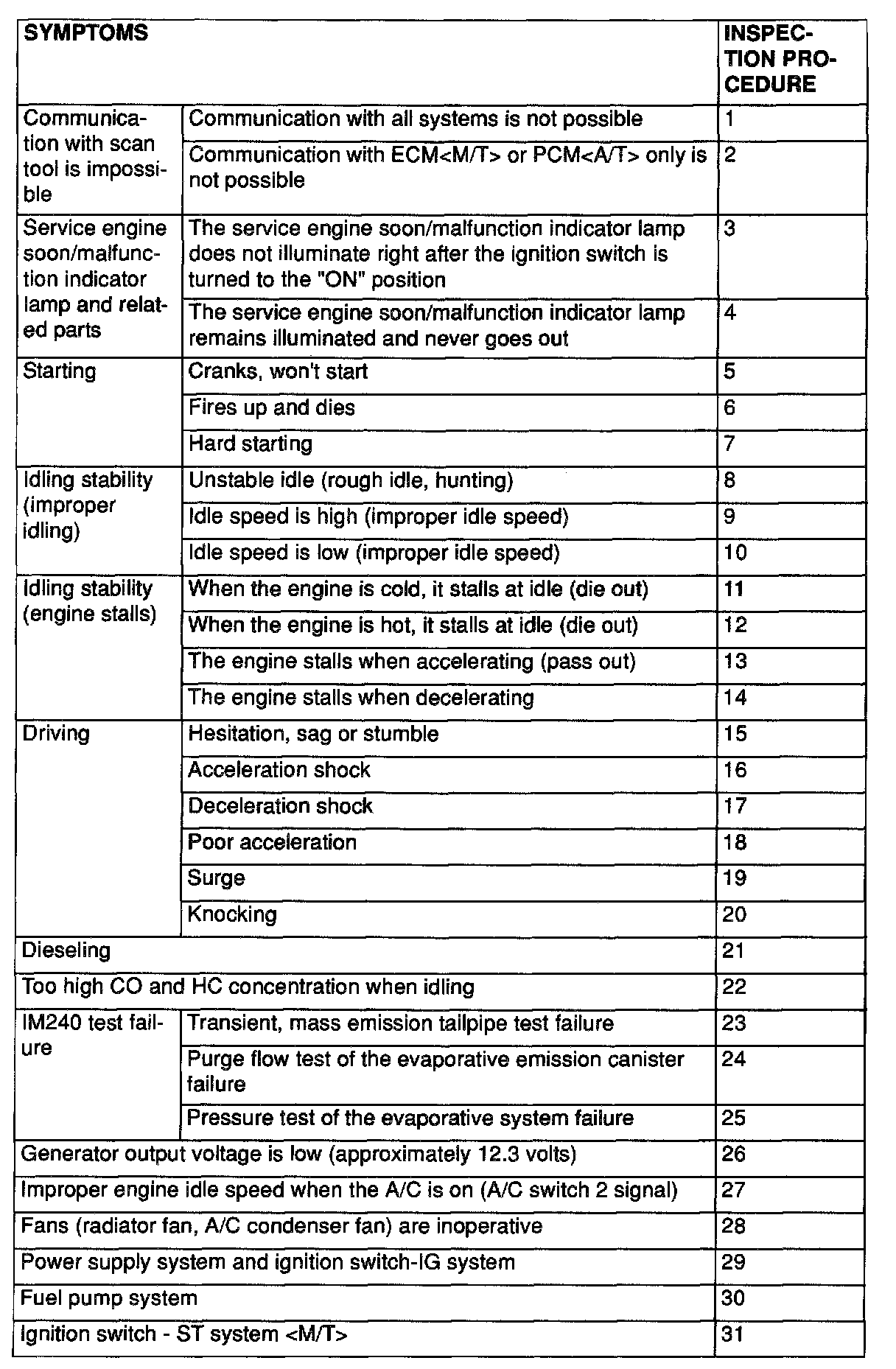

Symptom Chart (Part 1 Of 2):

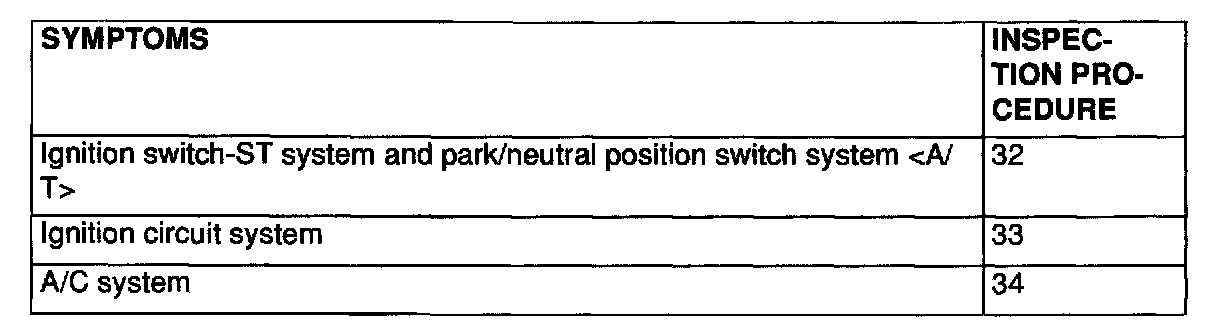

Symptom Chart (Page 2 Of 2):
