Data List Reference Table

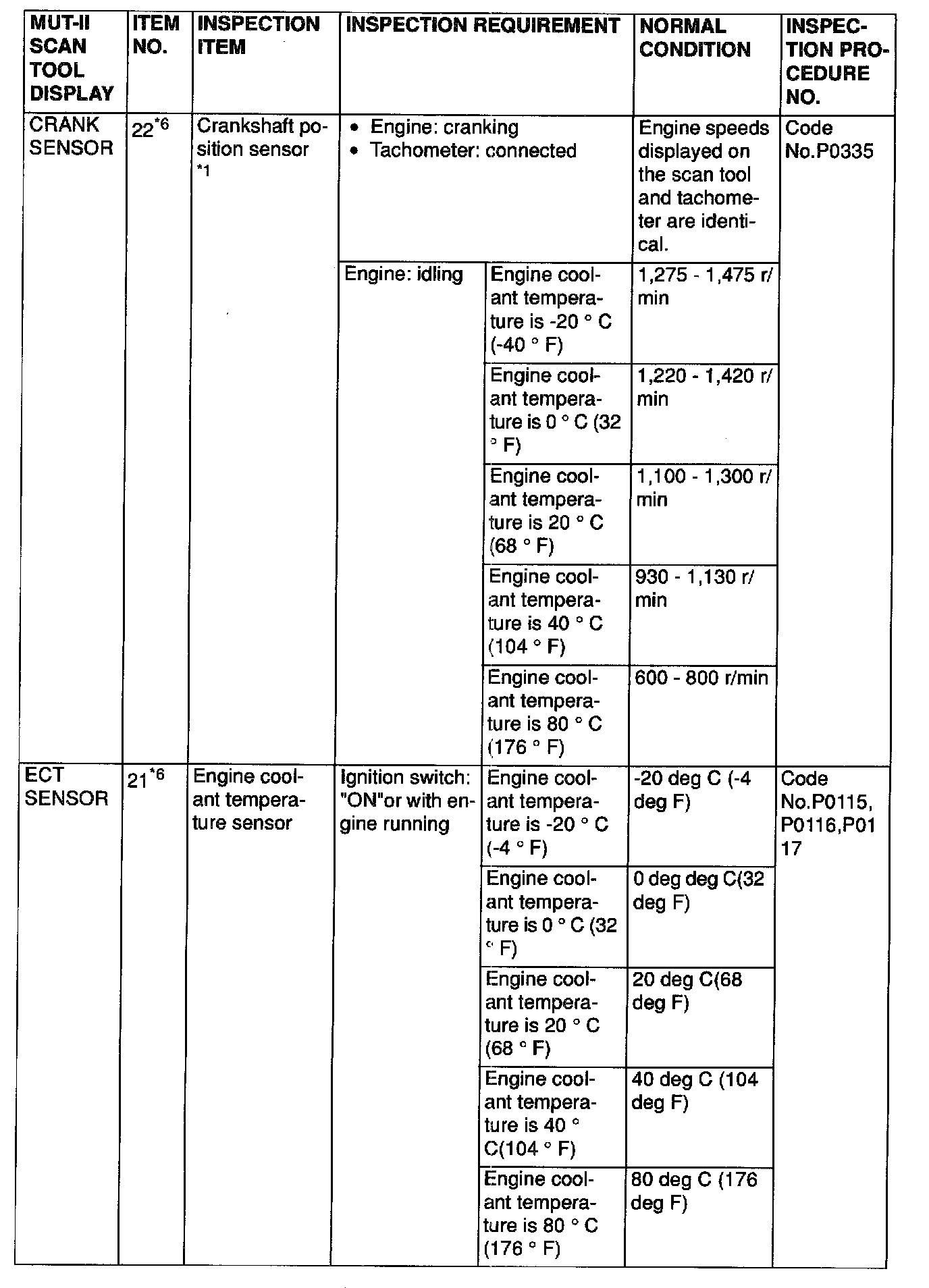

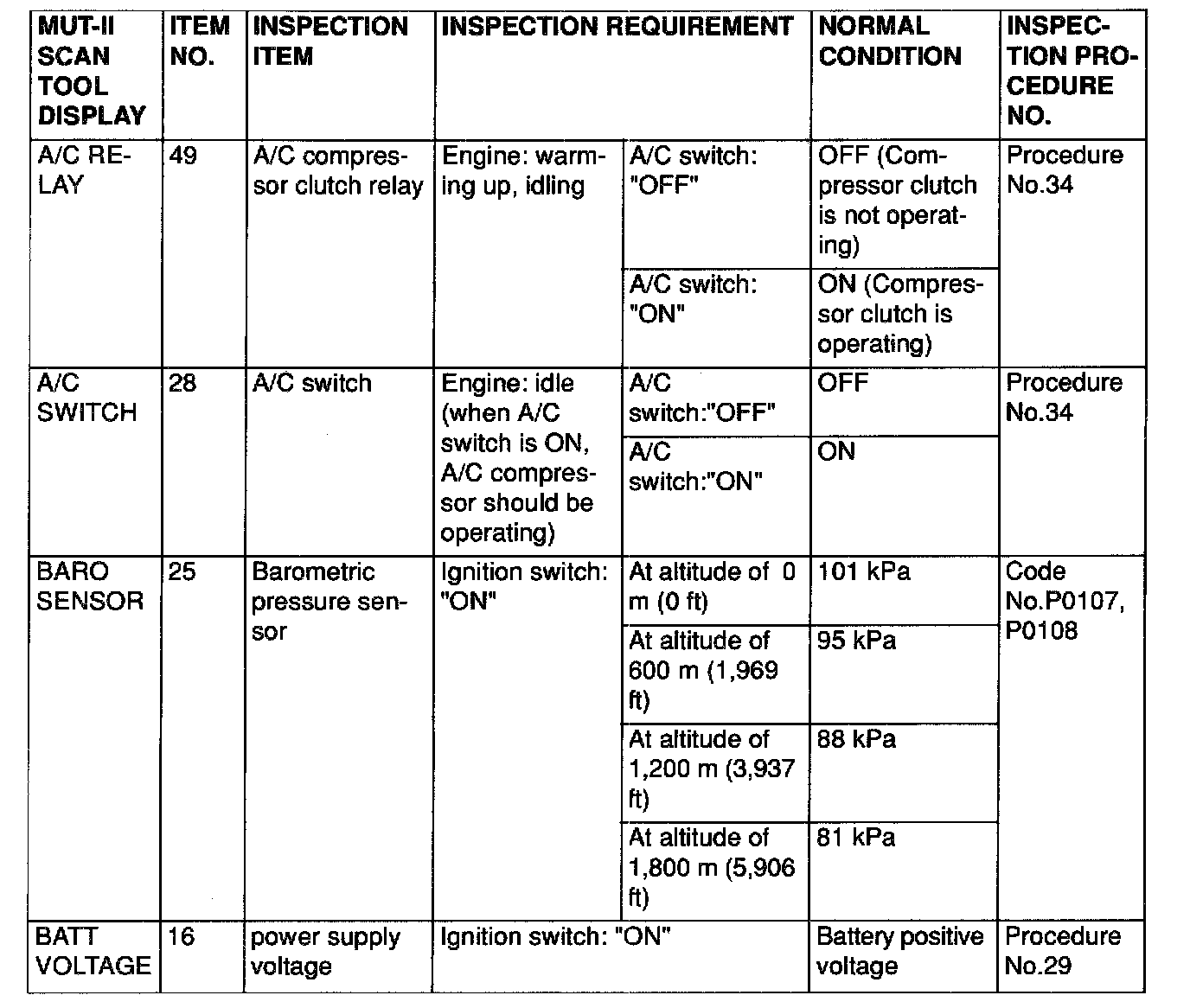

Data List Reference Table ( Part 1 Of 9 ):

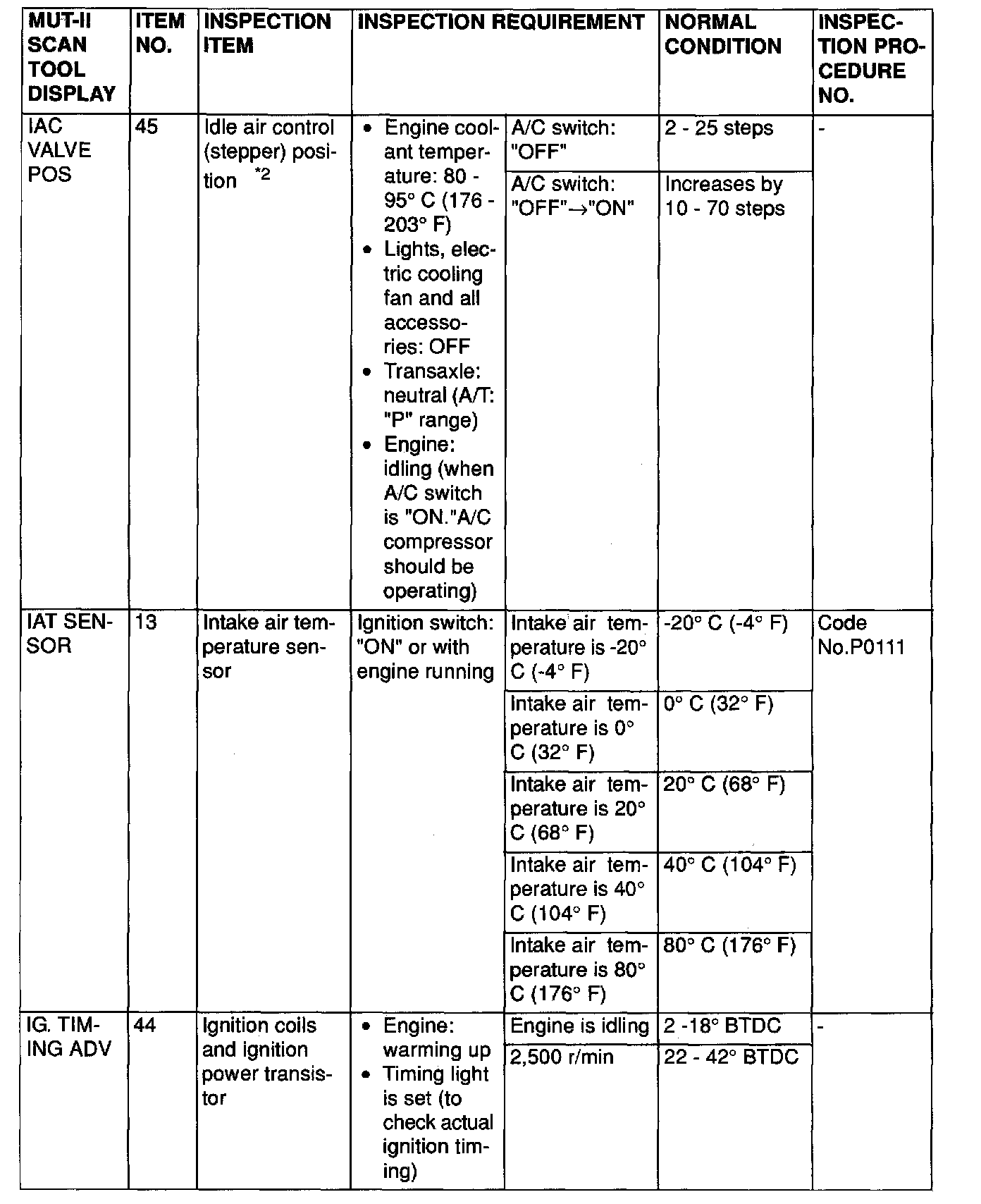

Data List Reference Table ( Part 2 Of 9 ):

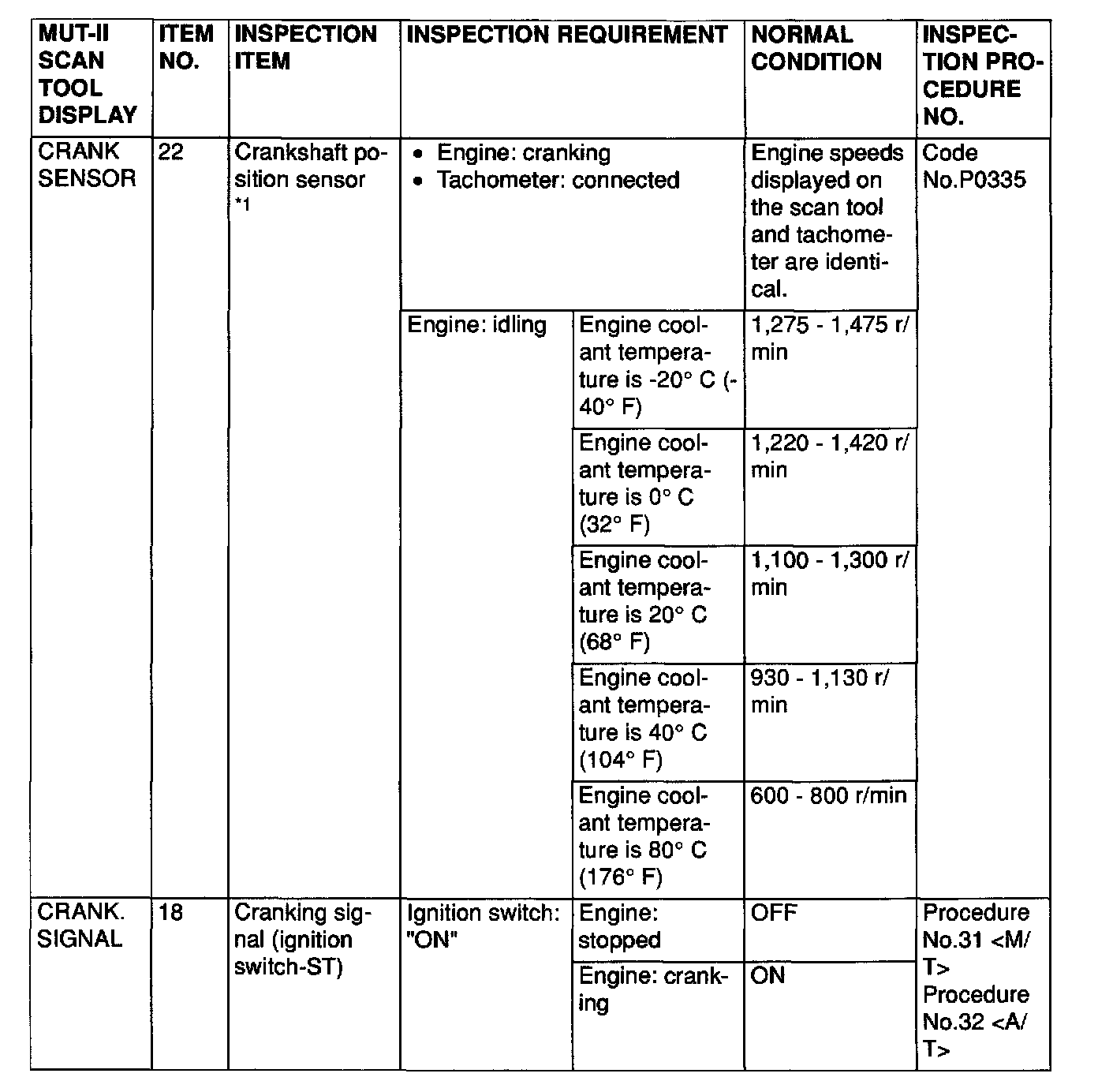

Data List Reference Table ( Part 3 Of 9 ):

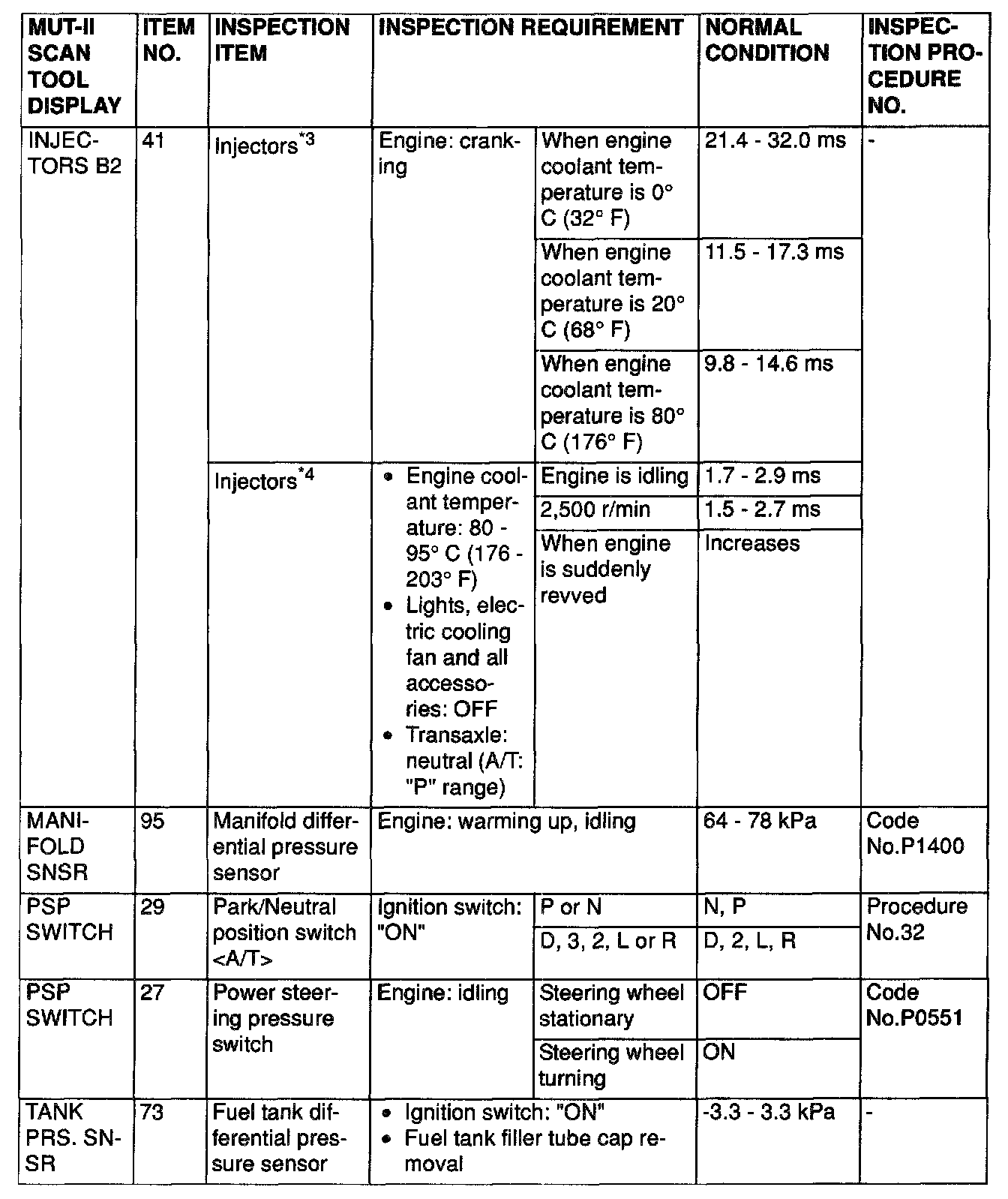

Data List Reference Table ( Part 4 Of 9 ):

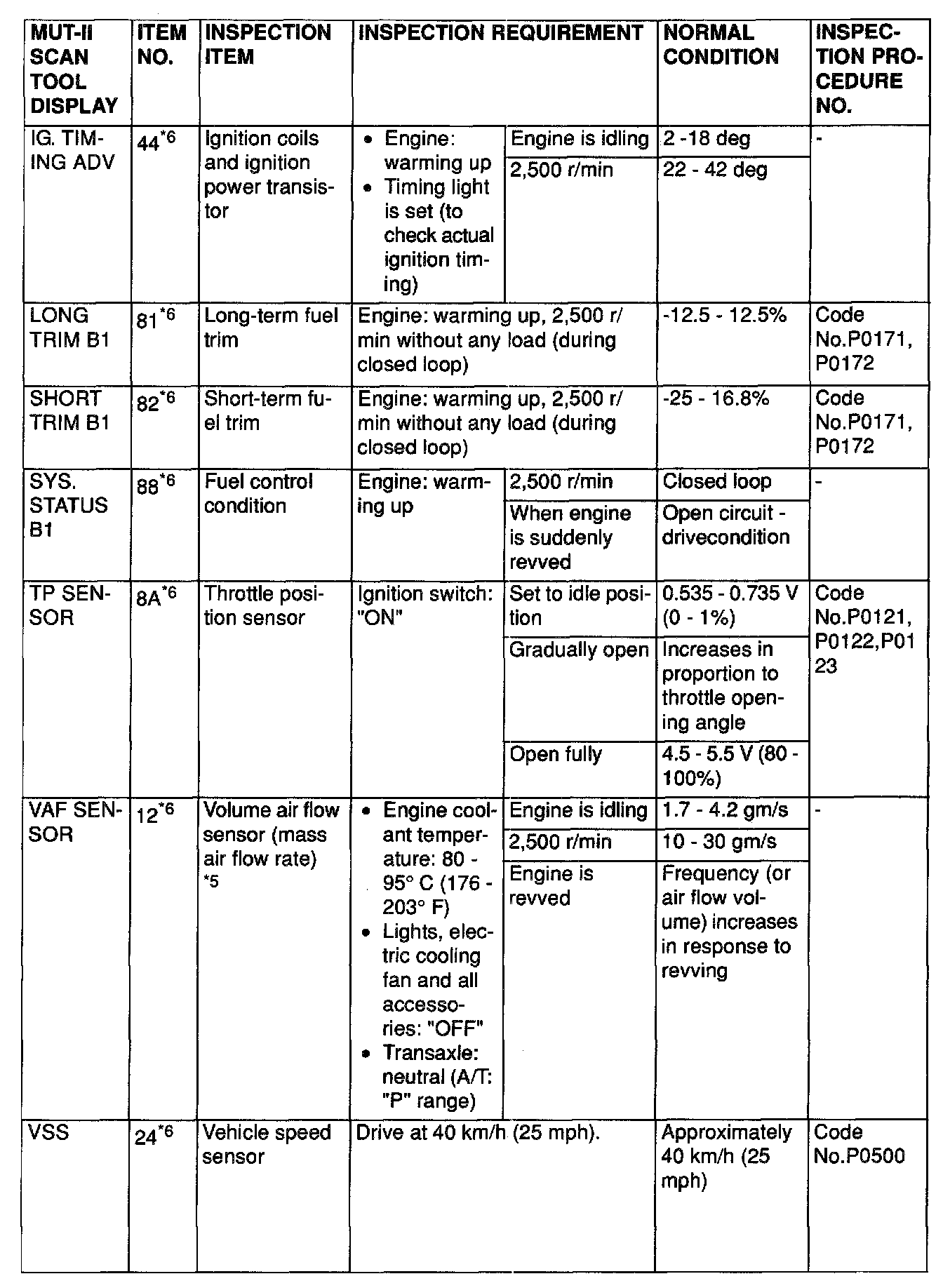

Data List Reference Table ( Part 5 Of 9 ):

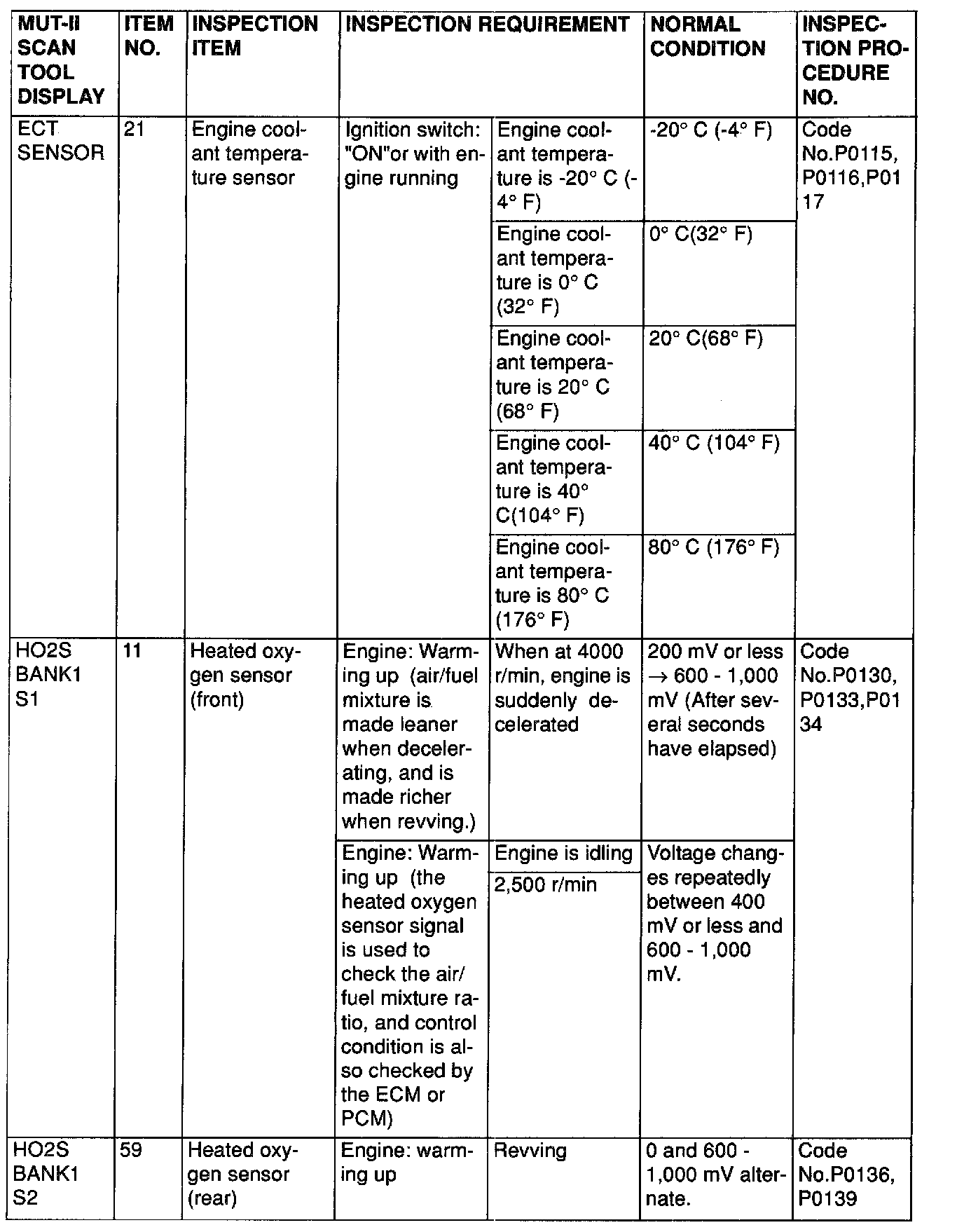

Data List Reference Table ( Part 6 Of 9 ):

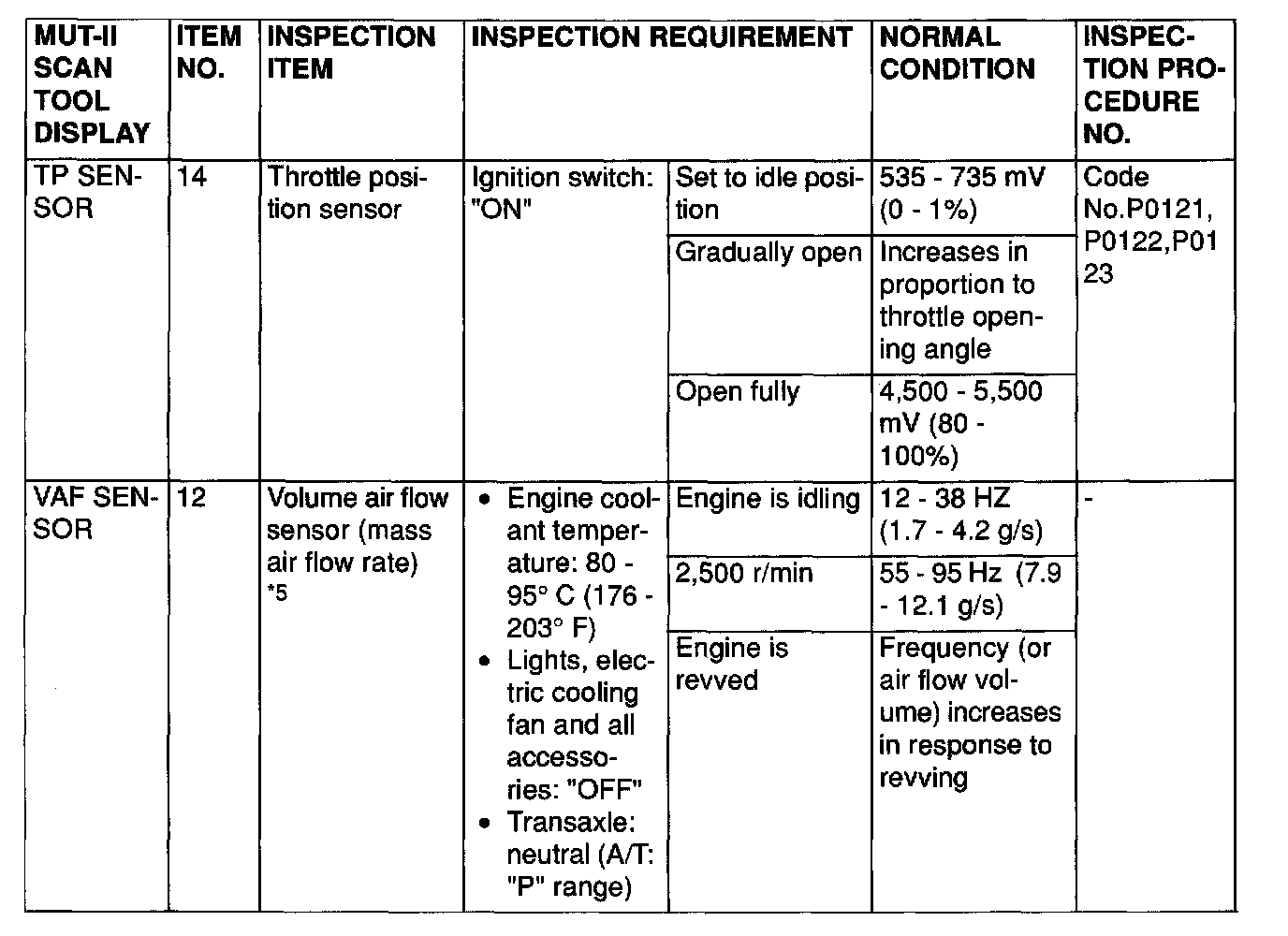

Data List Reference Table ( Part 7 Of 9 ):

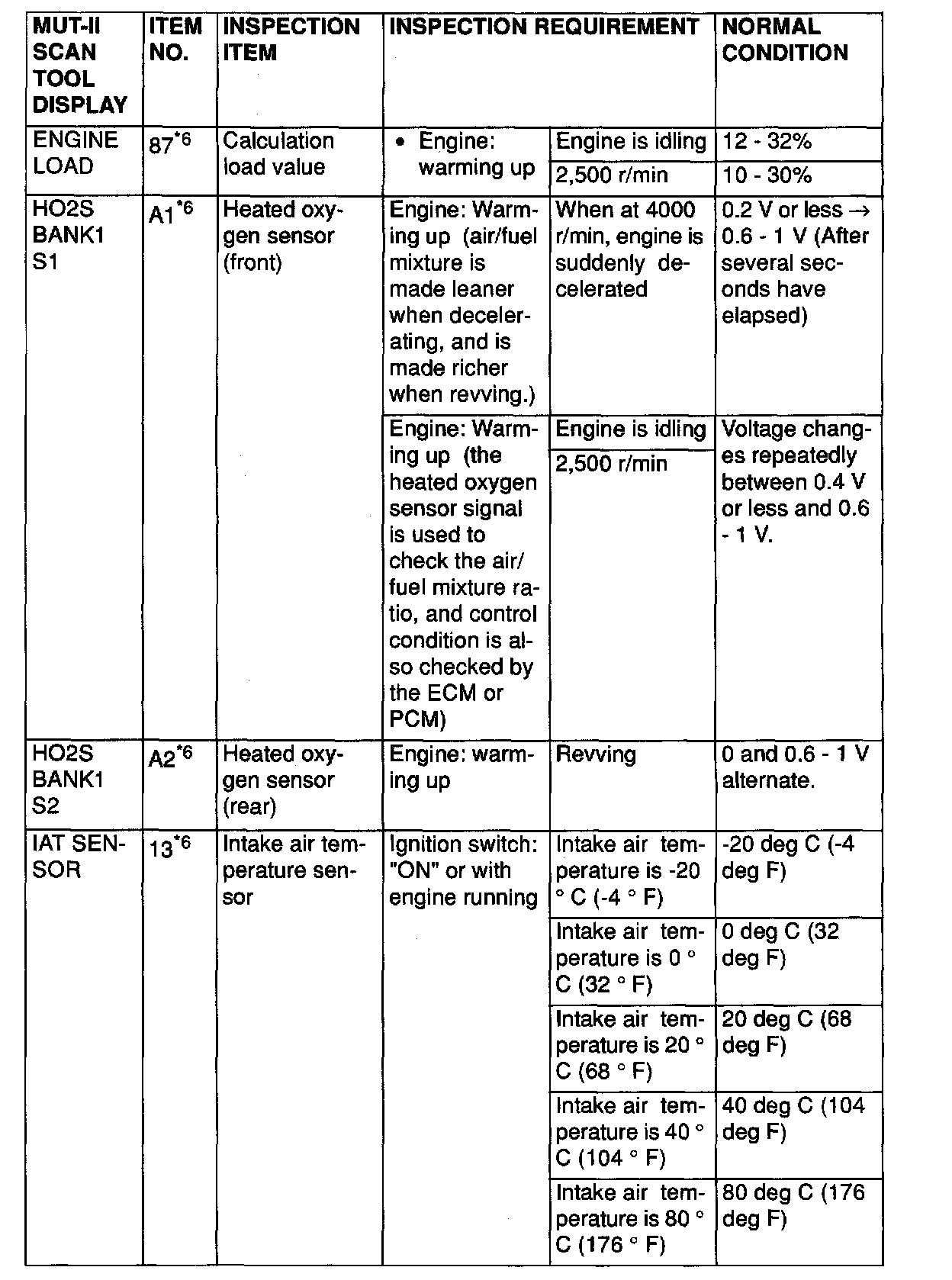

Data List Reference Table ( Part 8 Of 9 ):

Data List Reference Table ( Part 9 Of 9 ):

CAUTION:
- When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

NOTE: *1: If the idle speed is lower than the standard value on a very cold engine (approximately -20 °C (-4 °F) even when the IAC motor is fully opened, the air volume limiter built in the throttle body could be defective.

NOTE: *2: In a new vehicle [driven approximately 500 km (311 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value.

NOTE: *3: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.

NOTE: *4: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10% longer than the standard time.

NOTE: *5: In a new vehicle [driven approximately 500 km (311 mile) or less], the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency.

NOTE: *6: Applicable to General Scan Tool (GST).
