Sebring Coupe L4-2.4L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Immobilizer System
Immobilizer System

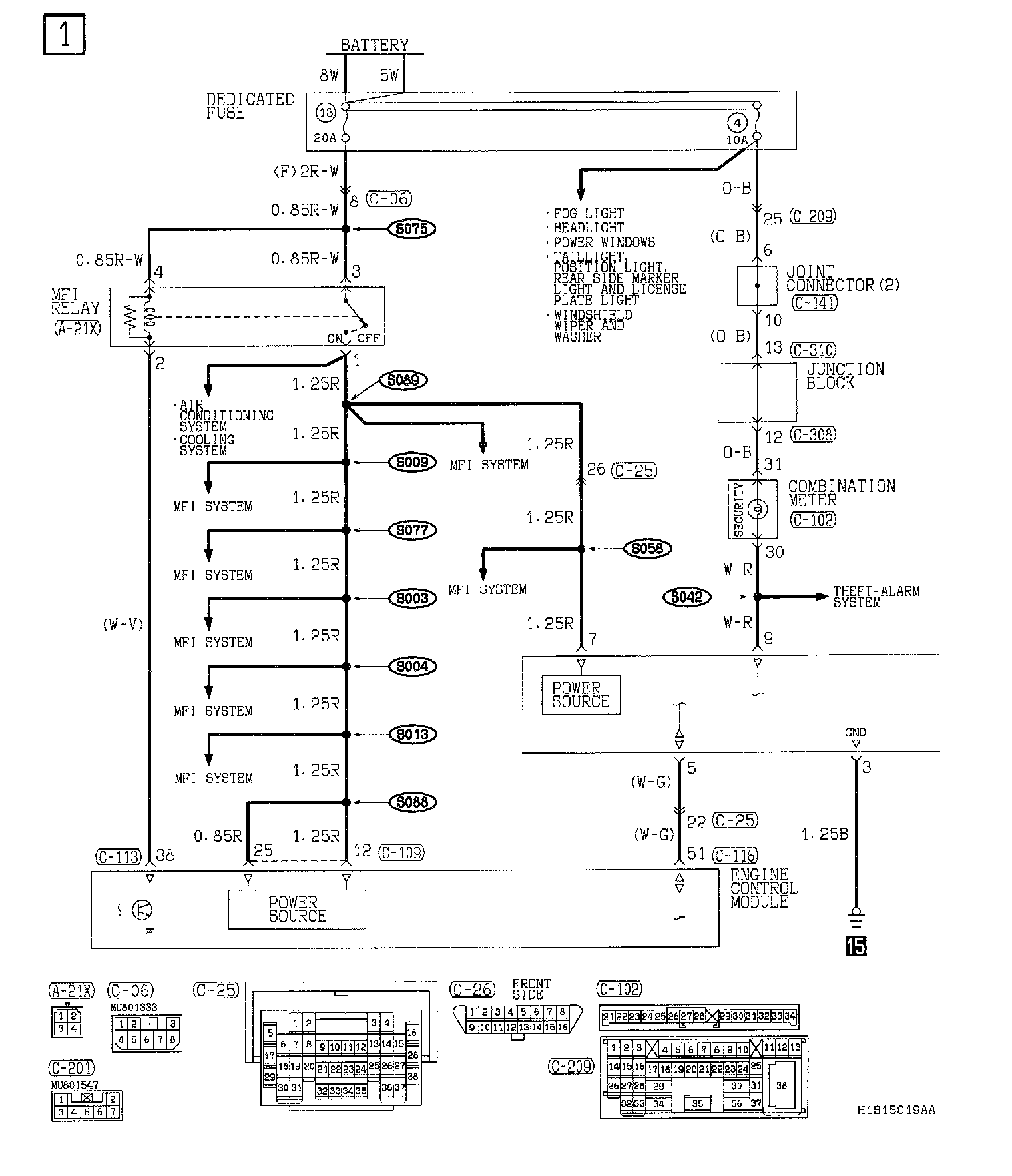

Immobilizer System <2.4L Engine-M/T> Part 1:

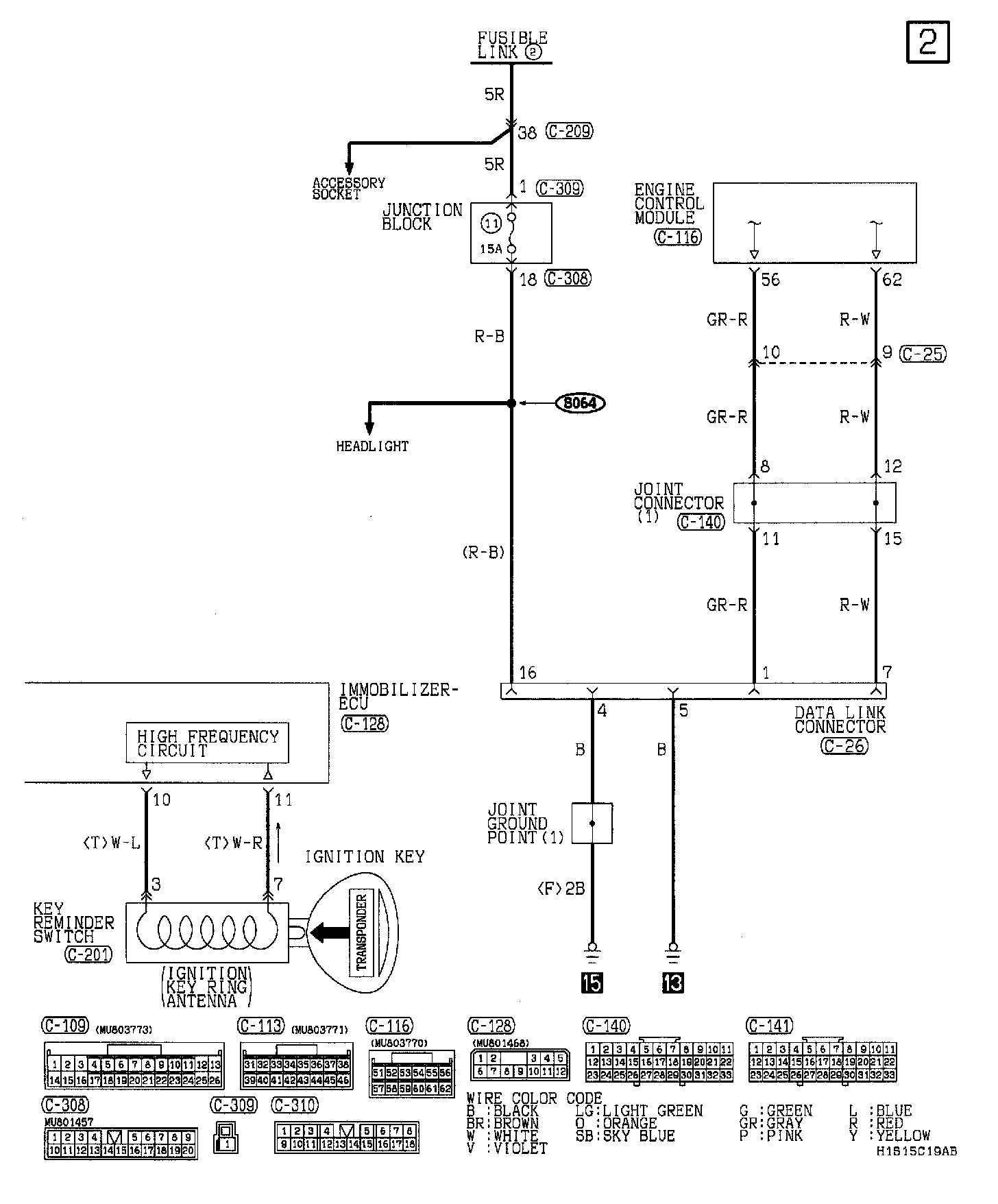

Immobilizer System <2.4L Engine-M/T> Part 2:

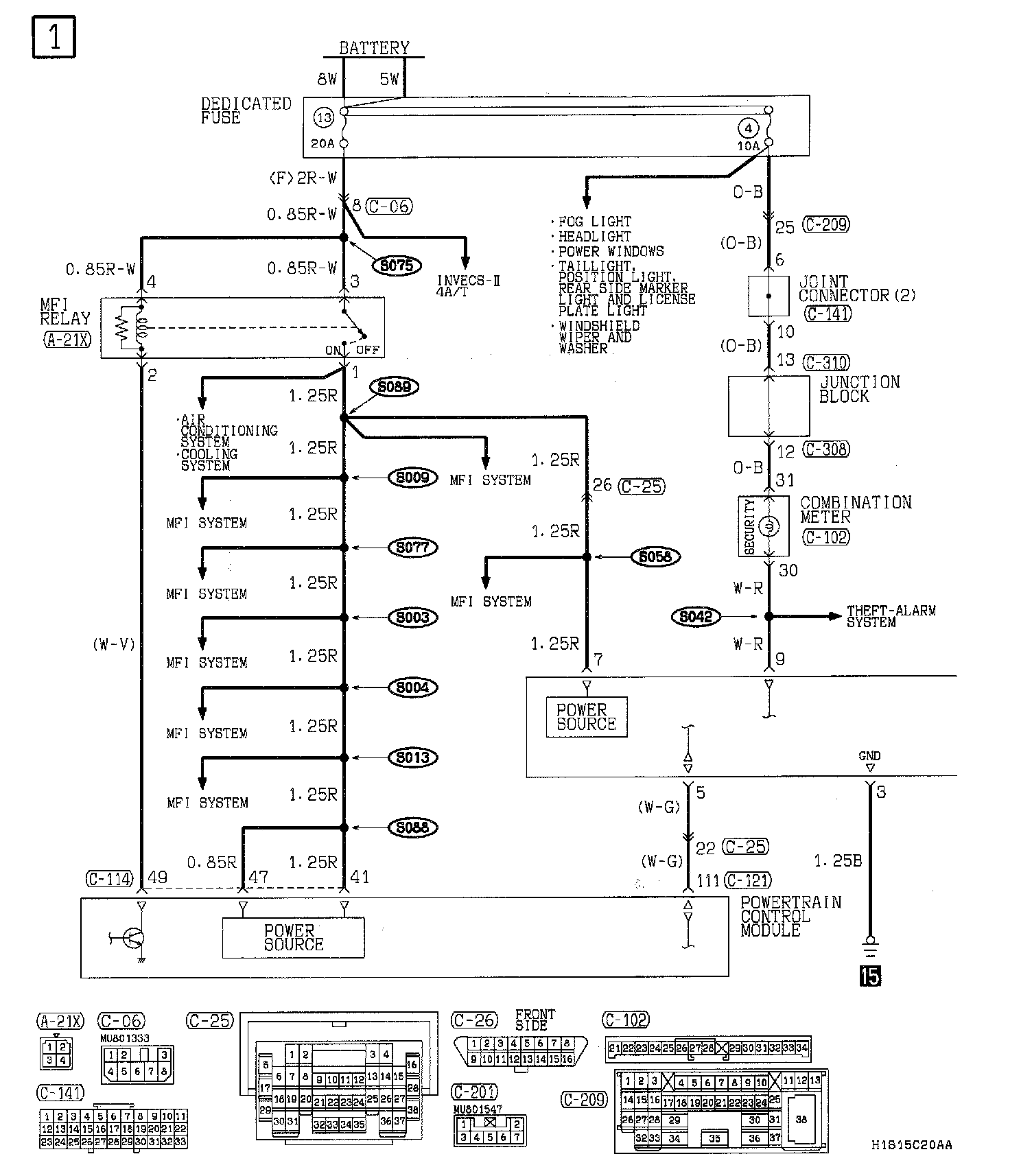

Immobilizer System <2.4L Engine-A/T> Part 1:

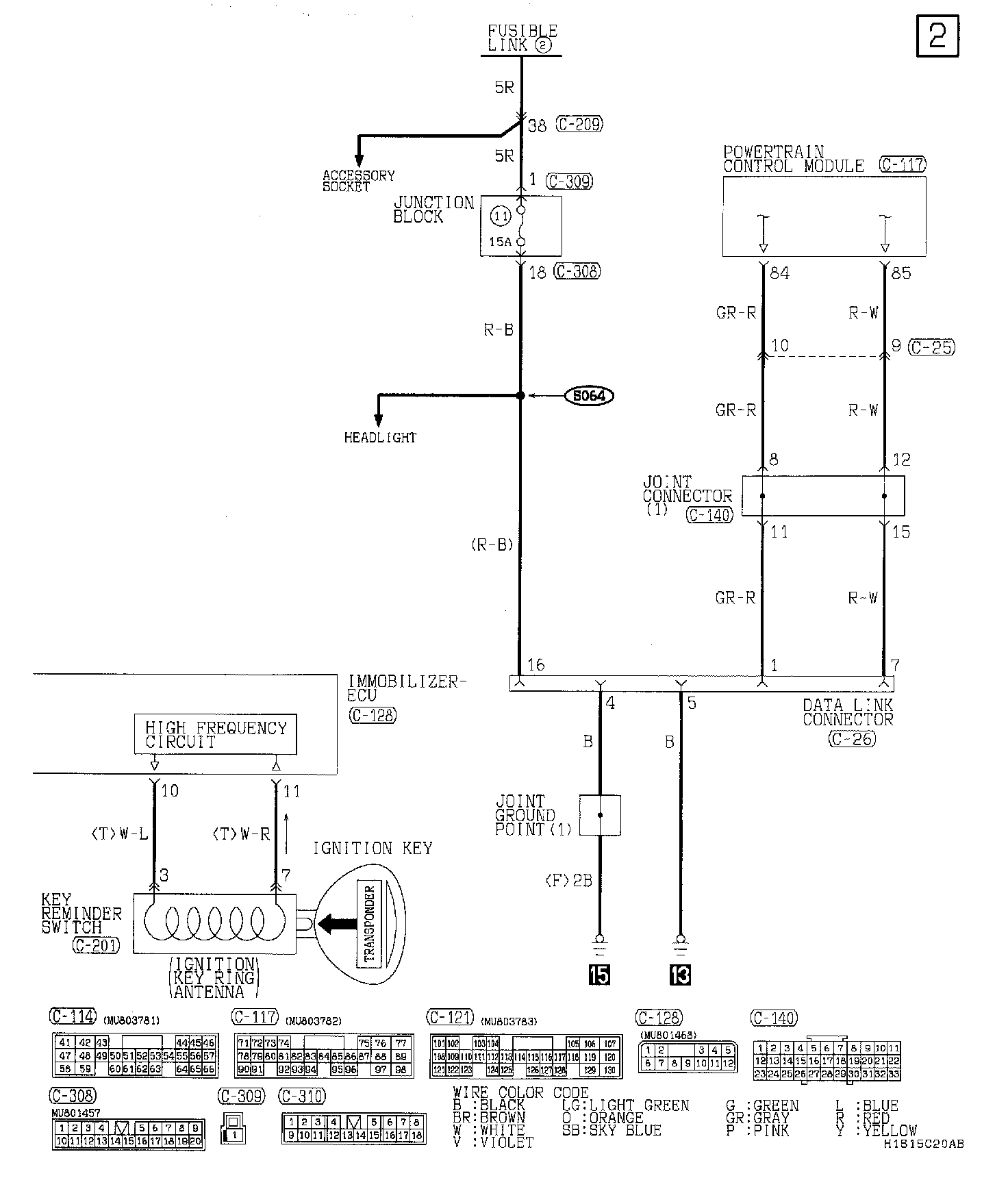

Immobilizer System <2.4L Engine-A/T> Part 2:
