Seals and Gaskets: Service and Repair
REMOVAL1. Remove transaxle from vehicle.

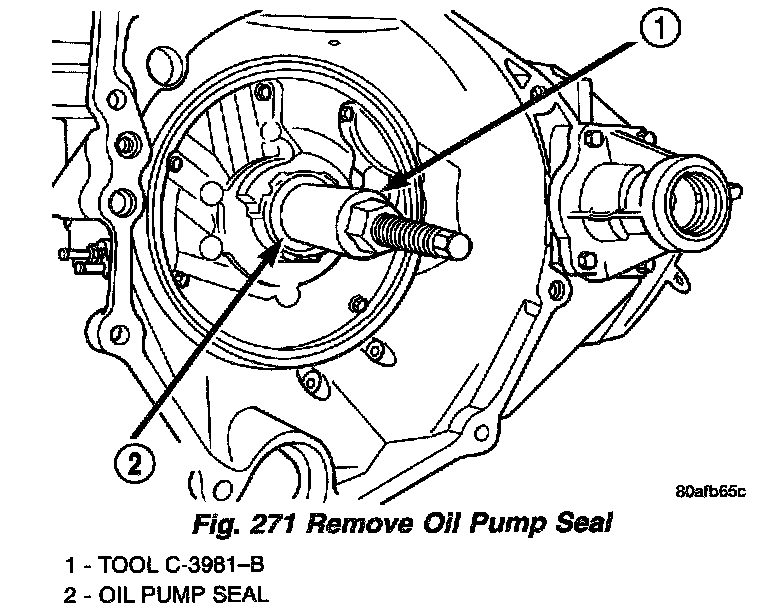

2. Using Tool C-3981-B, remove oil pump seal (Fig. 271).
INSTALLATION

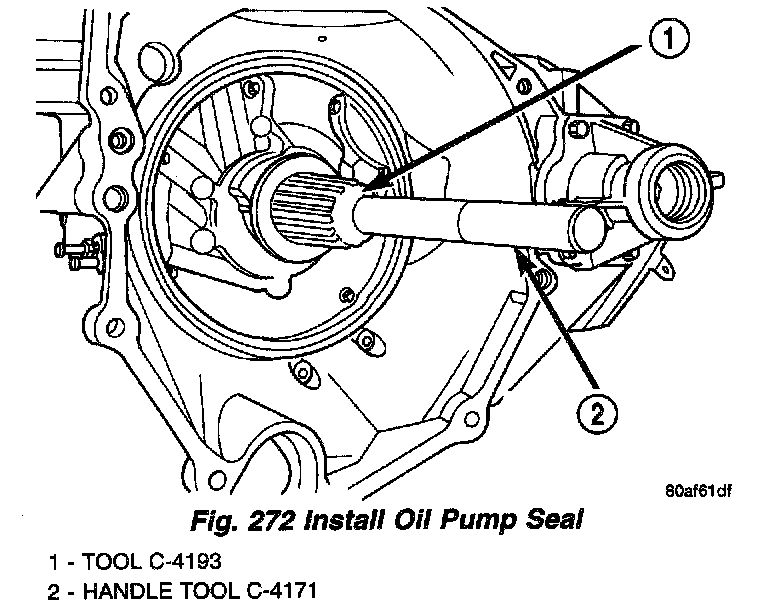

1. Using Tool C-4193, install oil pump seal (Fig. 272).
2. Install transaxle to vehicle.
1. Remove transaxle from vehicle.
2. Using Tool C-3981-B, remove oil pump seal (Fig. 271).
INSTALLATION
1. Using Tool C-4193, install oil pump seal (Fig. 272).
2. Install transaxle to vehicle.
