Disassembly and Assembly

DISASSEMBLY

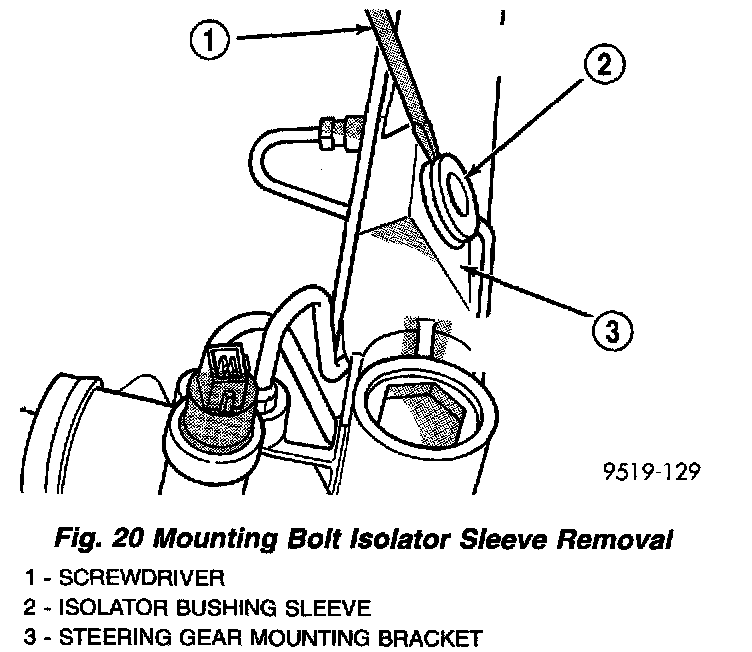

1. Using a screwdriver, pry the sleeve out of the mounting Bolt isolator.





2. Pry the mounting bolt isolator bushing from the steering gear mounting bracket.

ASSEMBLY
1. Lubricate replacement mounting bolt isolator bushing using Mopar, Silicone Spray Lube or an equivalent.

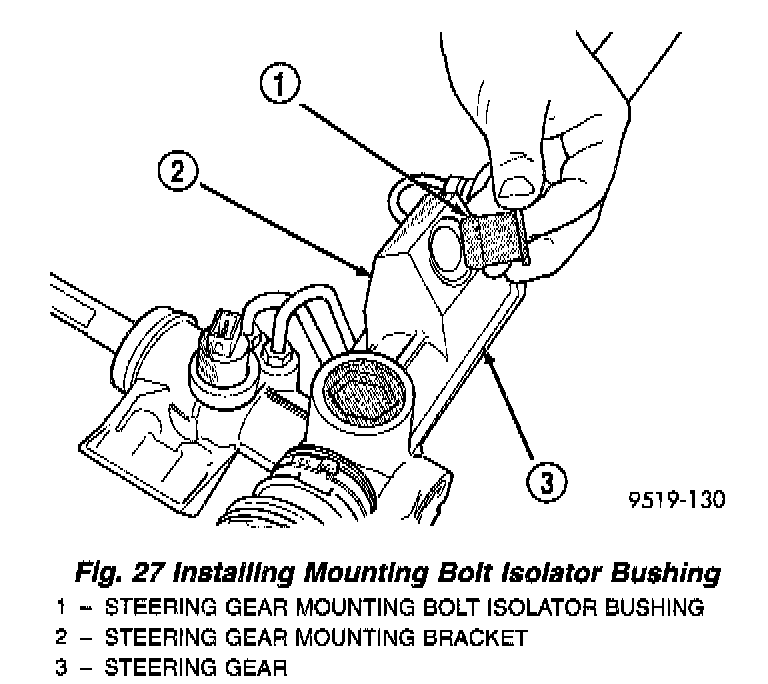

Fig. 27:

2. Install the mounting bolt isolator bushing into the steering gear mounting bracket from the bottom side of the bracket.

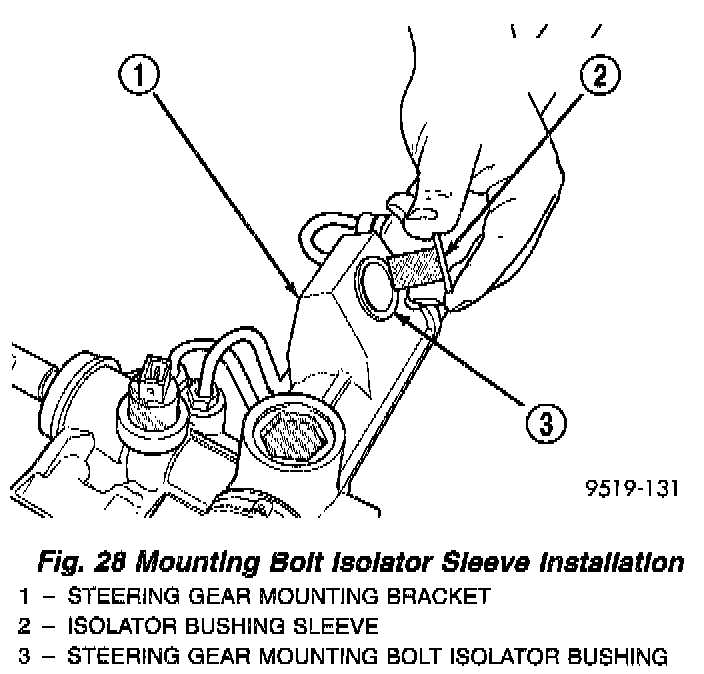

Fig. 28:

3. Install mounting bolt isolator bushing sleeve into isolator bushing by pressing the sleeve into the bushing by hand .
