Seat Belt Tensioner: Locations

Convertible Models:

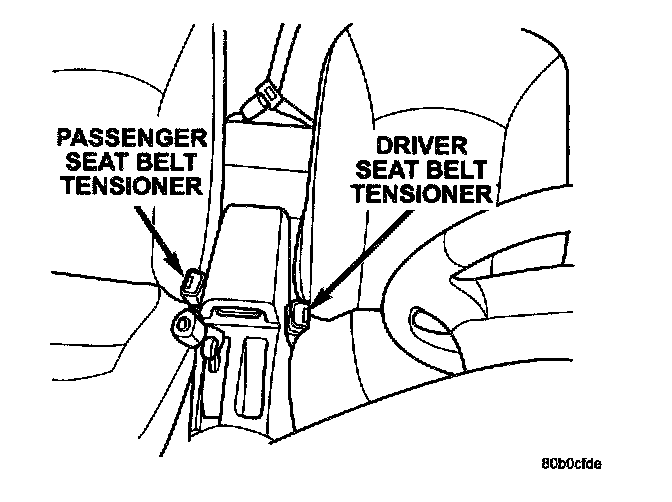

The JR27 convertible driver and front passenger seat belt (buckle) tensioners are mounted to the inboard side of the front seats.
