Seat Belt Buckle - Rear Seat

REMOVAL
1. Remove rear seat cushion.
2. Remove nuts holding seat belt buckle assembly to floor pan.

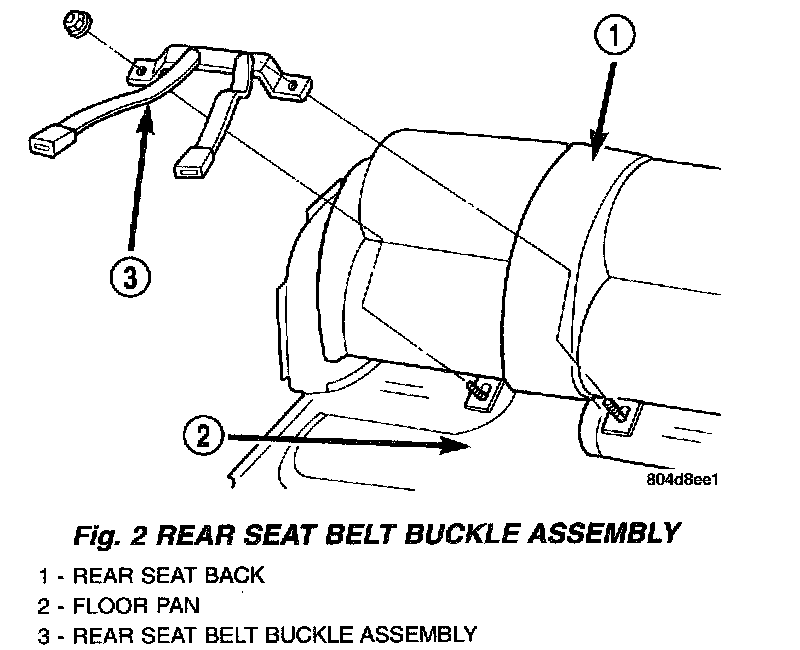

Fig. 2 Rear Seat Belt Buckle Assembly:

3. Remove rear seat belt buckle assembly.

INSTALLATION
1. Position rear seat belt buckle assembly onto studs on floor pan.
2. Install nuts holding rear seat belt buckle assembly to floor pan. Torque rear seat belt buckle assembly nuts to 40 Nm (350 in. lbs.).
3. Install rear seat cushion.
