Variable Induction Control Valve: Description and Operation

MANIFOLD TUNE VALVE

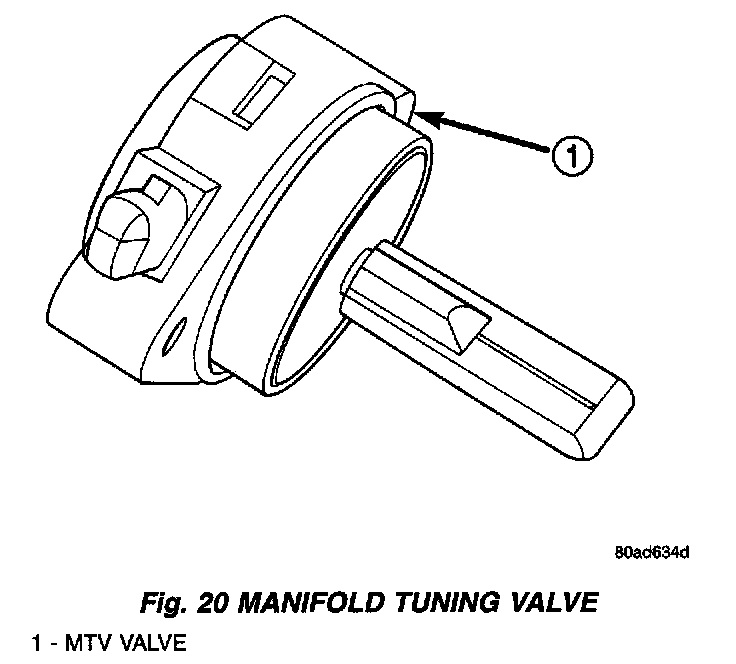

Fig. 20 Manifold Tuning Valve:

The valve opens a crossover passage in that connects both sides of the intake manifold plenum (Fig. 20). It is an electric motor.

The PCM controls the MTV solenoid. The manifold tuning valve optimizes acoustical tuning of the intake system during wide open throttle operation throughout the RPM range to increase torque.
