Vapor Canister Replacement

REMOVAL
1. Disconnect the negative battery cable.

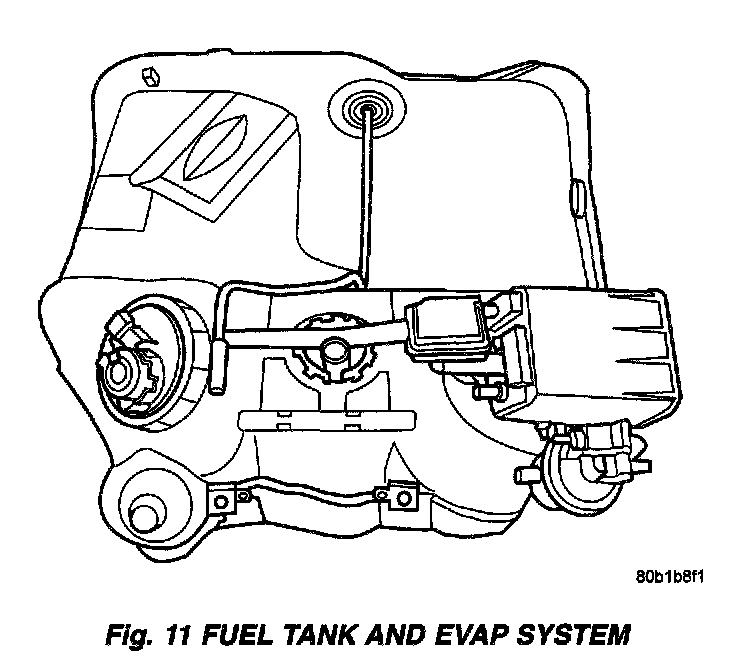

Fig. 11 Fuel Tank And EVAP System:

2. Remove fuel tank, refer to the Fuel Delivery.
3. Remove the LDP Pump from the EVAP canister.
4. Disconnect the hoses from the EVAP canister.

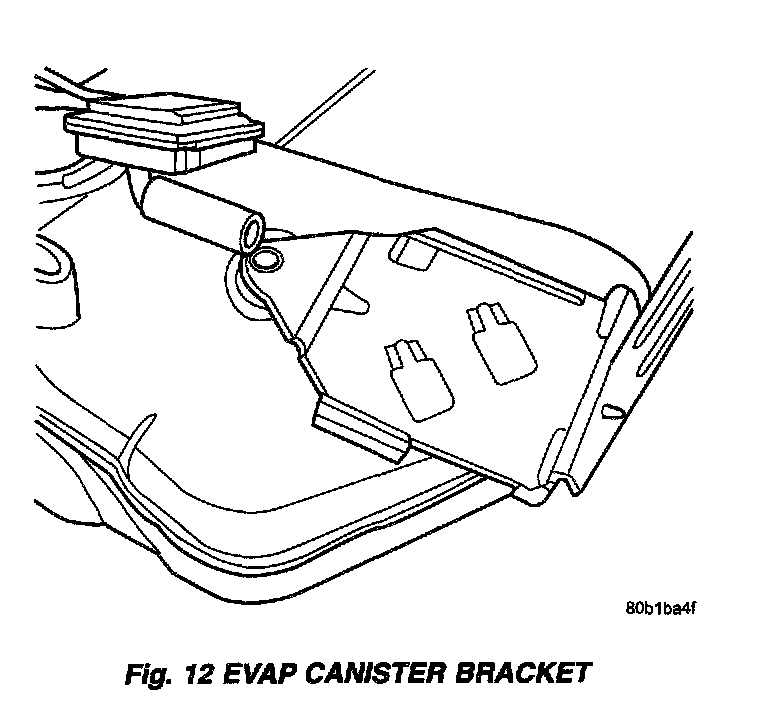

Fig. 12 EVAP Canister Bracket:

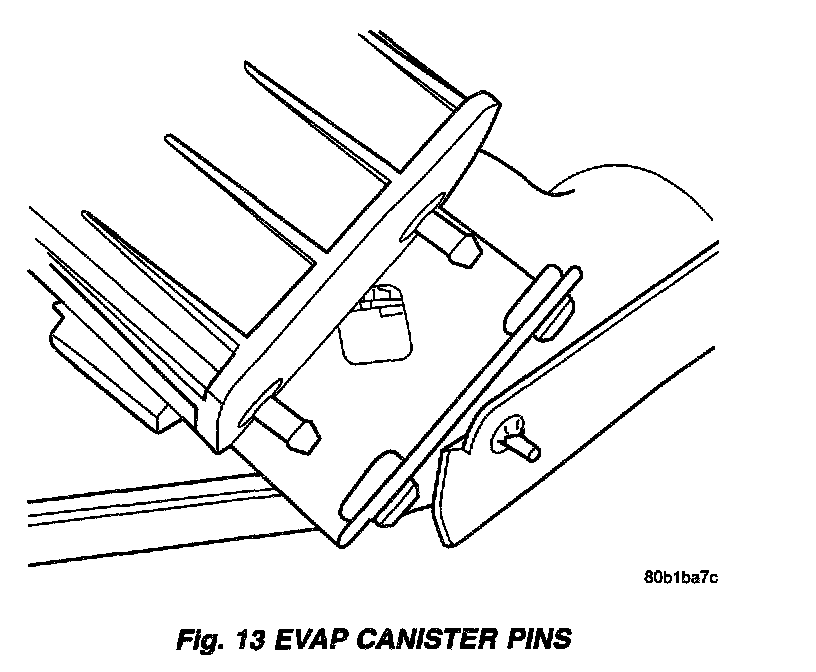

Fig. 13 EVAP Canister Pins:

5. Remove plastic fastener from the bracket of the EVAP canister and
6. Remove EVAP canister from bracket.

INSTALLATION
1. Install LDP to EVAP Canister.
2. Install EVAP canister to Bracket.
3. Install the plastic fastener to EVAP canister bracket.
4. Connect hoses.
5. Install fuel tank refer to the Fuel Delivery.
6. Connect negative battery cable.
