Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Checking IAC Motor

Checking IAC Motor

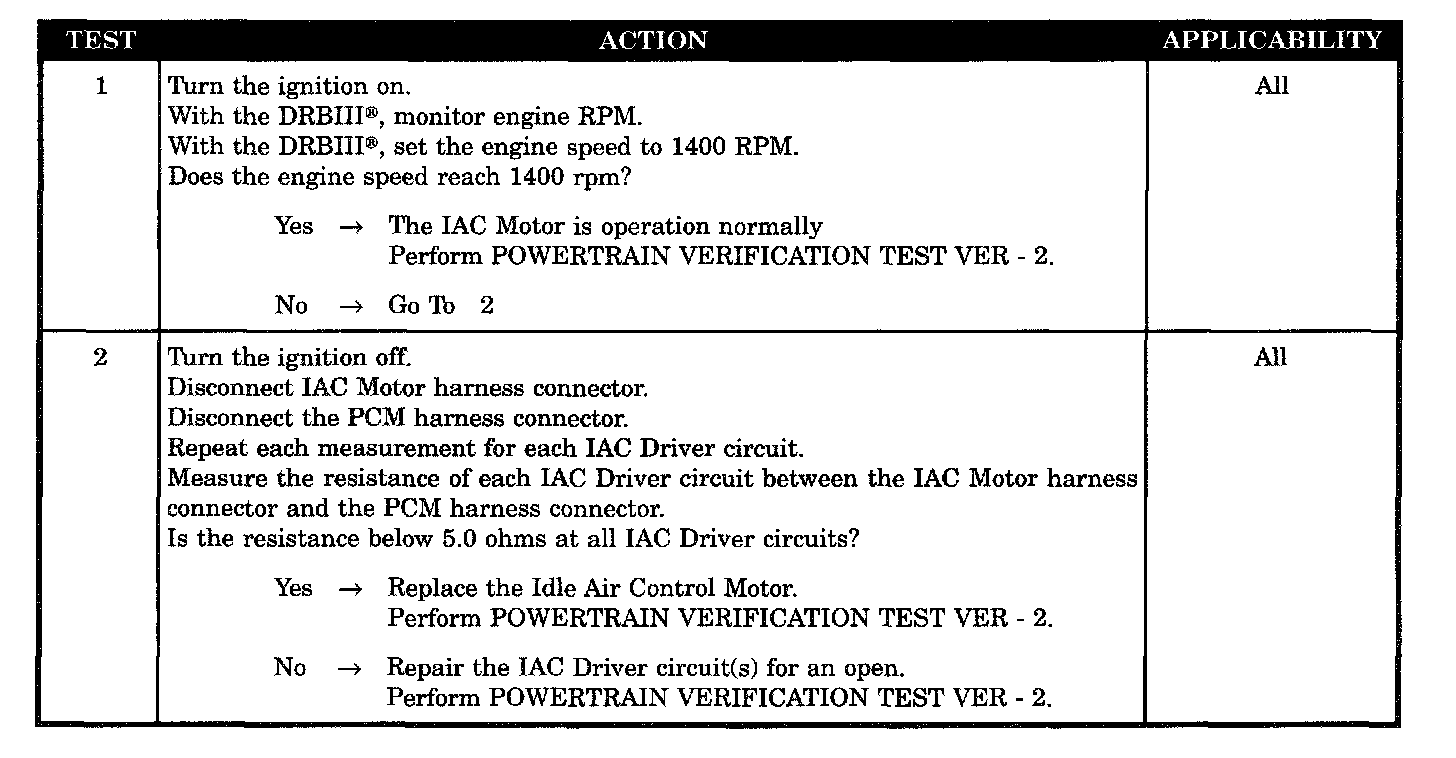

Tests 1 - 2:




SYMPTOM
CHECKING IAC MOTOR

POSSIBLE CAUSES
- IAC motor operation
- IAC driver circuits open
- IAC motor
