FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
2001
>>
Sebring Convertible V6-2.7L VIN U
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
Headlamp: Diagrams
Left Headlamp (Except Built-up Export):

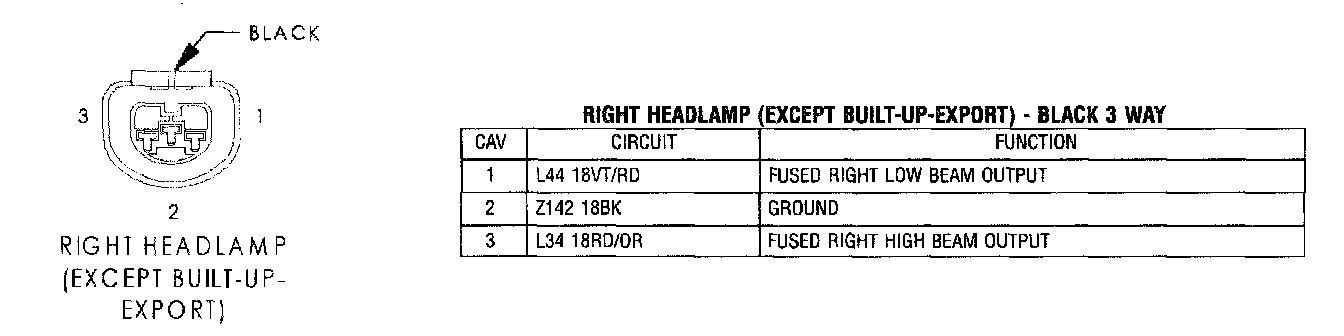

Right Headlamp (Except Built-up Export):
