Sebring Convertible V6-2.7L VIN U
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Connector Views
Connector Views

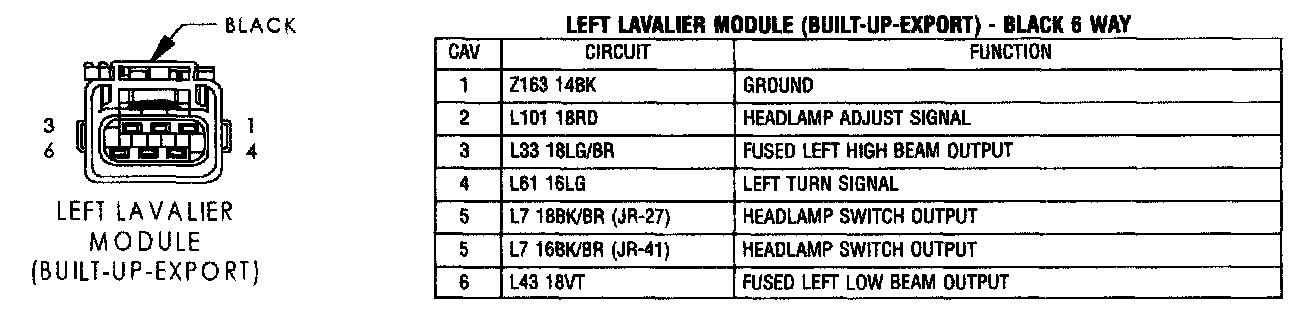

Left Lavalier Module (Built-up Export):

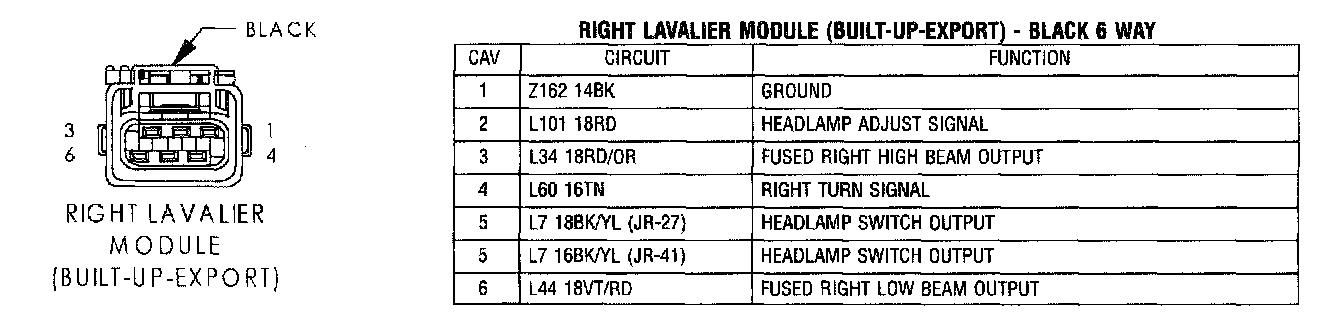

Right Lavalier Module (Built-up Export):
