Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Diagrams

Daytime Running Lamp: Diagrams

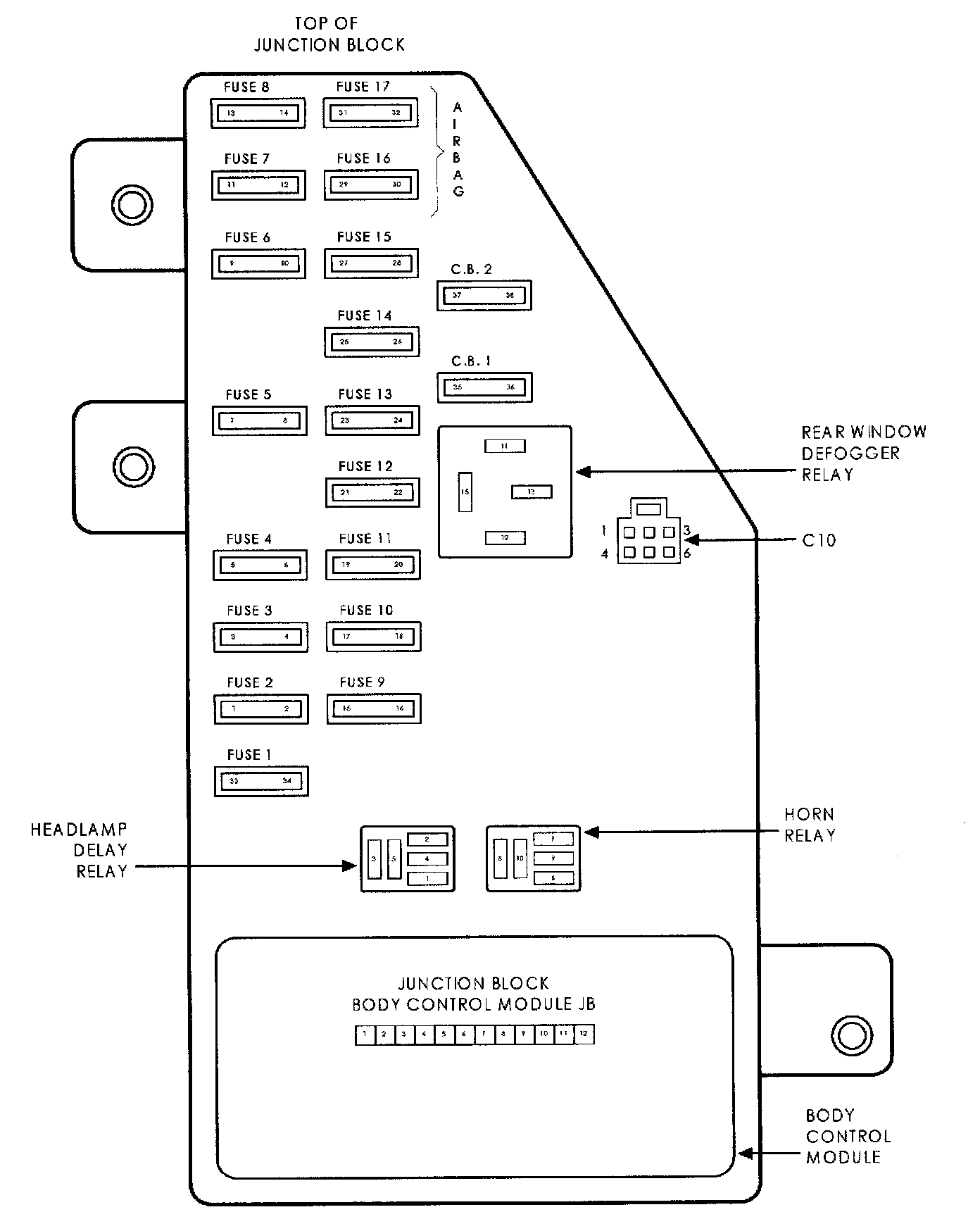

Junction Block:

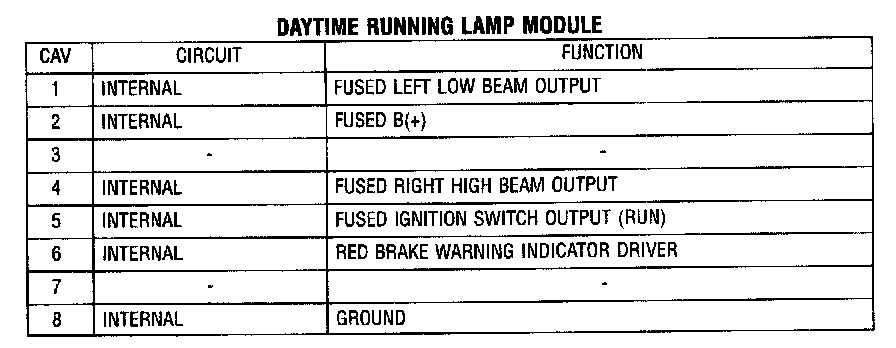

Daytime Running Lamp Module:
