Instrument Cluster Mask/Lens Replacement

MASK/LENS

REMOVAL

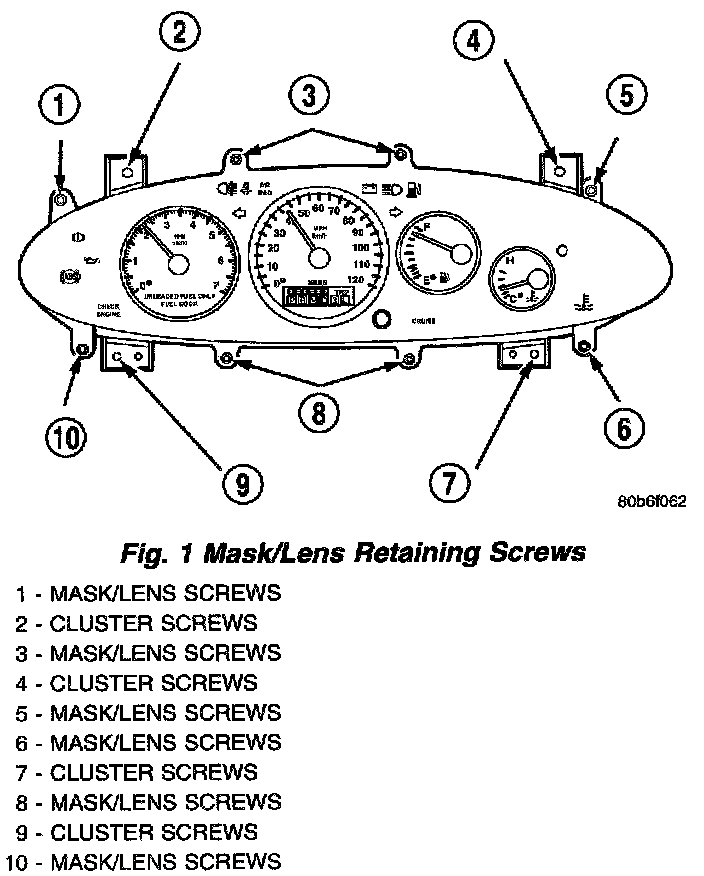

Fig. 1 Mask/Lens Retaining Screws:

1. Remove Cluster Hood.
2. Remove mask/lens retaining screws and remove mask/lens (Fig. 1).

INSTALLATION
1. Position the mask/lens on the cluster,
2. Install the 4 retaining screws.
3. Install the cluster in the instrument panel.
