Instrument Cluster Hood Replacement

CLUSTER HOOD

REMOVAL
1. Remove instrument panel left end cap.
2. Tiit steering column down to its lowest position.

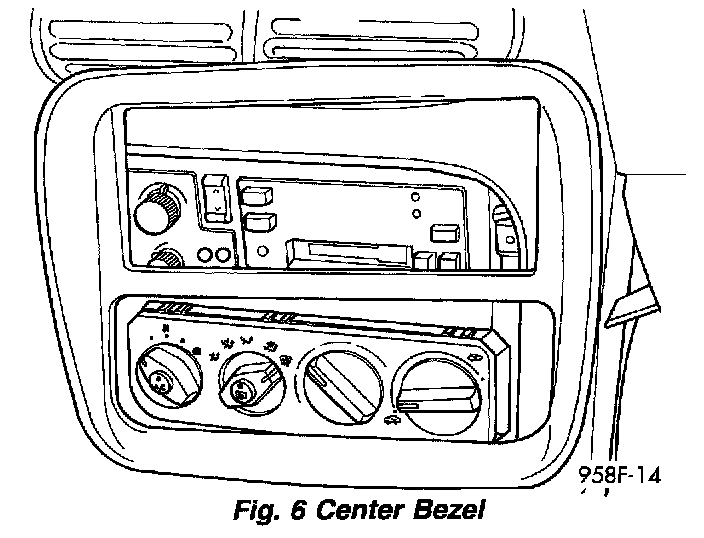

Fig. 6 Center Bezel:

3. Remove instrument panel center bezel by disengaging the four clips (Fig. 6).
4. Remove four attaching screws under the center bezel.
5. Remove screw at left end of panel.
6. Pull hood straight back to disengage the eight clips. If equipped with a Compass/Temperature Mini-Trip Computer pull rearward about 3 inches and stop. Reach through the radio opening in the cluster hood and disconnect the CMTC wire connector.

Fig. 5 Instrument Cluster Hood:

7. Remove instrument cluster hood (Fig. 5).

INSTALLATION
1. Keep the forward edge of the hood down on the instrument panel while sliding the hood forward to engage the retaining clips.
2. Push hood straight forward to engage the eight clips. If equipped with a Compass/Temperature Mini-Trip Computer Reach through the radio opening in the cluster hood and connect the CMTC wire connector.
3. Install screw at left end of panel.
4. Remove instrument cluster hood (Fig. 5).
5. Install four attaching screws under the center bezel.
6. Install instrument panel center bezel by engaging the four clips.
7. Install instrument panel left end cap.
