Solar Sensor: Service and Repair

SUN SENSOR REPLACEMENT

REMOVAL
1. Disconnect negative battery cable.
2. Remove instrument panel top cover. Refer to Instrument Panel for the procedures.

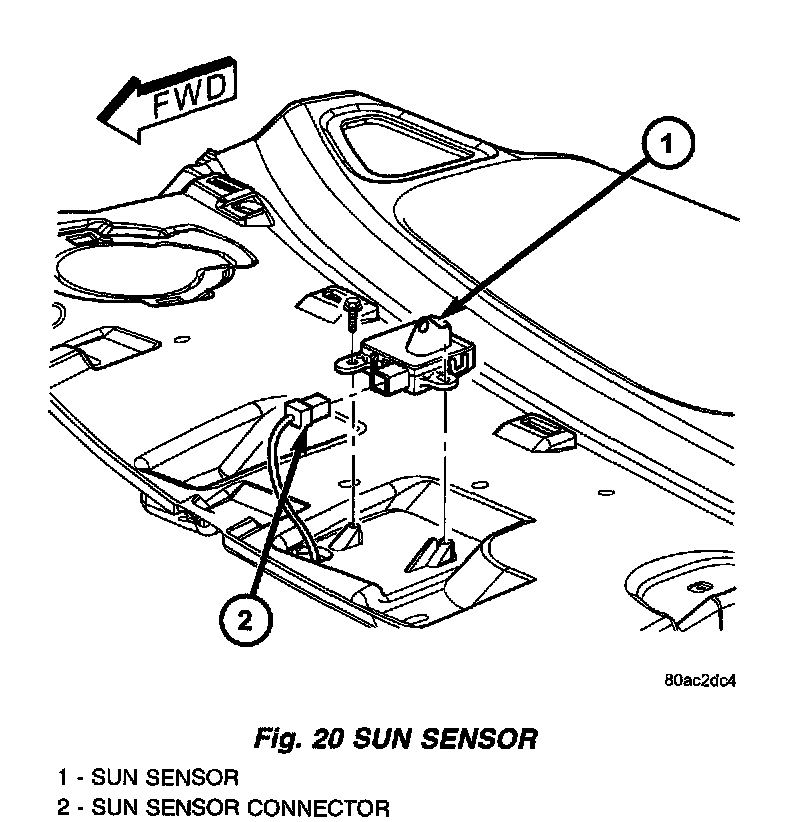

Fig.20 Sun Sensor:

3. Remove two Sun Sensor mounting screws.
4. Lift sensor off the instrument panel and disconnect the wiring.
5. Remove the sensor from the vehicle.

INSTALLATION
1. Connect wiring connector to sensor and position on instrument panel.
2. Install the two sensor fasteners.
3. Install instrument panel top cover. Refer to Instrument Panel System for the procedures.

NOTE: Sun sensor must protrude approximately 1/4 inch above instrument panel top cover to ensure proper operation.

4. Connect negative battery
