Evaporator Temperature Sensor / Switch: Service and Repair

REMOVAL
1. Disconnect negative battery cable.
2. Lower glove compartment door.

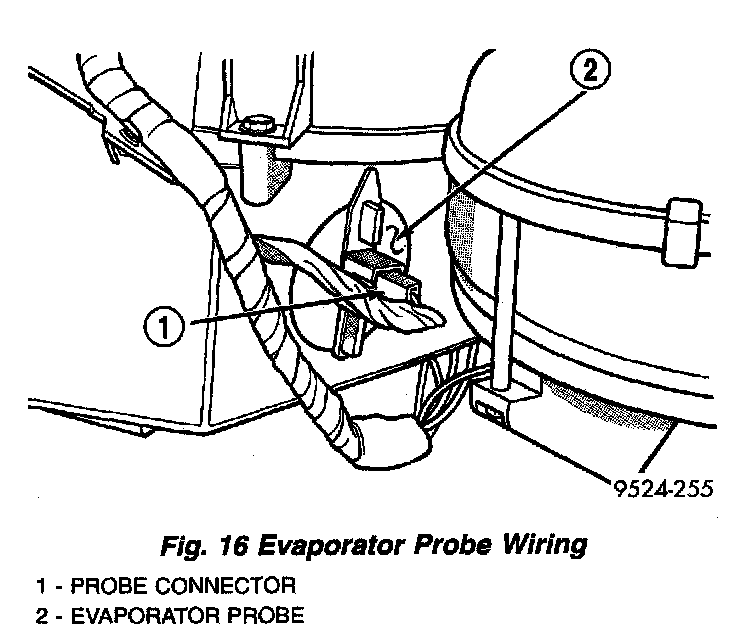

Fig.16 Evaporator Probe Wiring:

3. Reach through glove compartment door opening and disconnect evaporator temperature sensor wiring connector.

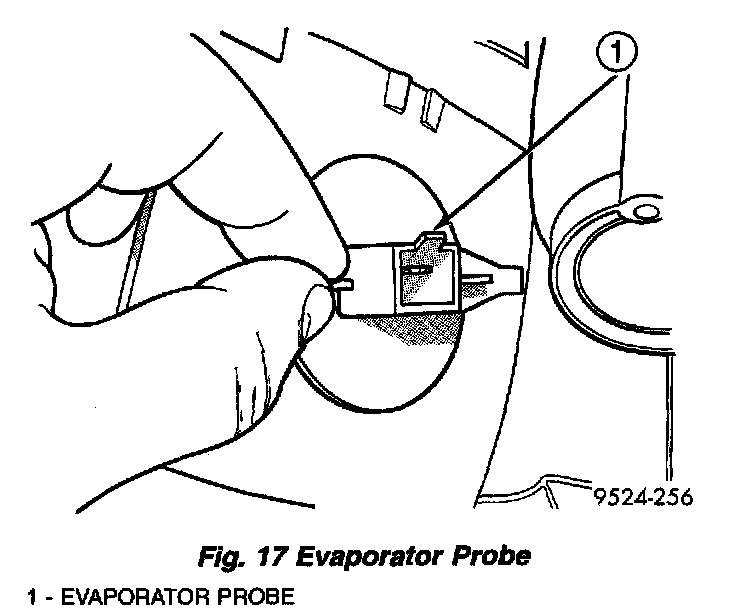

Fig.17 Evaporator Probe:

4. Using a flat blade pry tool, pull back on the locking tab. Twist access plate clockwise one-quarter turn and pushed inside the A/C housing. Then orientated the plate in such a way that it can be removed from the housing.

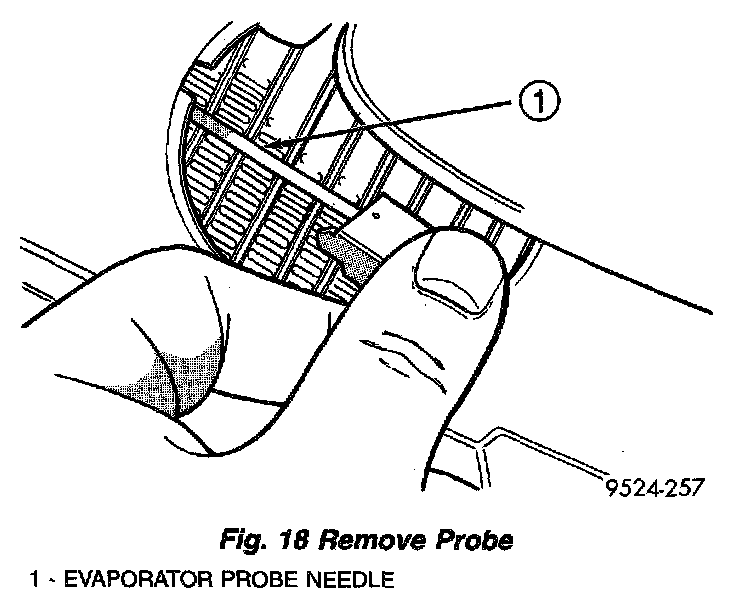

Fig.18 Remove Probe:

5. Pull probe out of evaporator core.

INSTALLATION
1. Install new sensor into the evaporator.

NOTE: The evaporator is manufactured with three holes for probe insertion. Insert the probe in the uppermost hole.

2. Install evaporator probe access panel.
3. Connect probe wiring harness.
4. Install glove compartment door.
5. Connect negative battery cable.
