Control Assembly: Service and Repair

REMOVAL
1. Disconnect negative battery cable.
2. Carefully pull out the control bezel and control from the instrument panel.

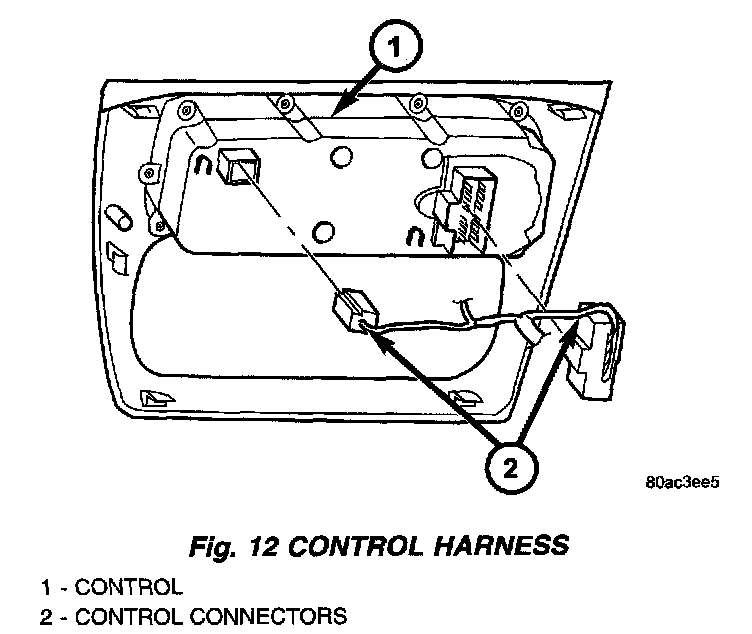

Fig.12 Control Harness:

3. Disconnect the control wiring harness.

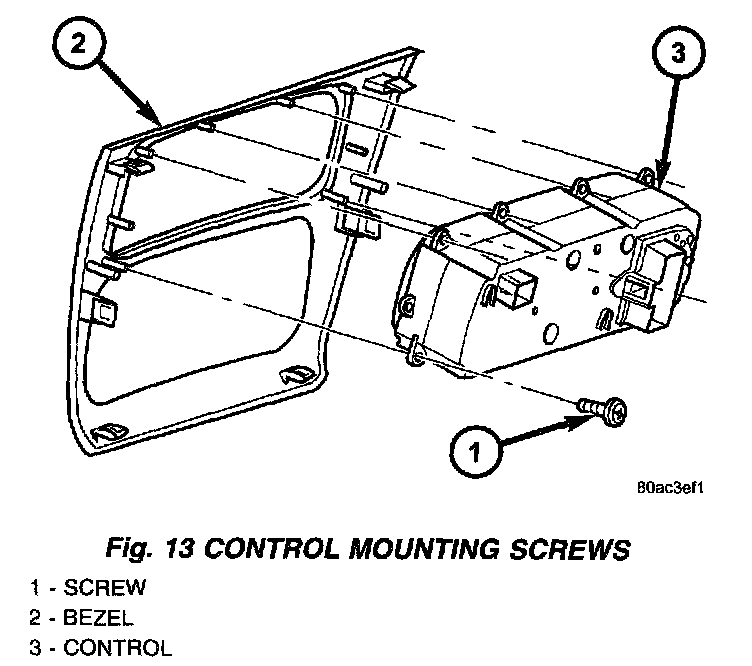

Fig.13 Control Mounting Screws:

4. Remove control mounting screws.

INSTALLATION
1. Install control on bezel and install mounting screws.
2. Connect control harness to control.

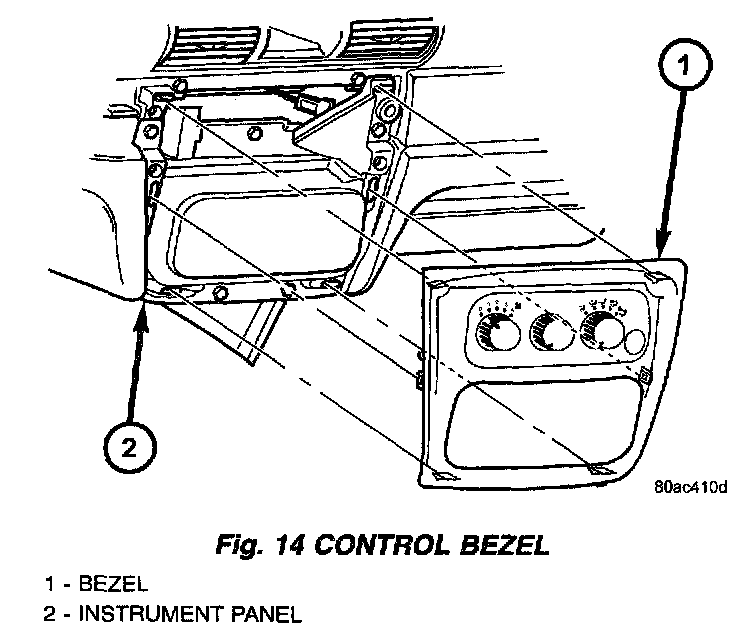

Fig.14 Control Bezel:

3. Align bezel with instrument panel and push bezel and control into place.

CAUTION: Do not push on control knobs, control could be damage.

4. Connect negative battery cable.
