Fresh Air/Recirculation Actuator Replacement

REMOVAL

NOTE: Prior to part replacement, re-calibration the HVAC actuator. Disconnecting negative battery cable for 60 seconds. This will automatically initiate the software calibration procedure.

1. Disconnect negative battery cable.
2. Remove the instrument panel.

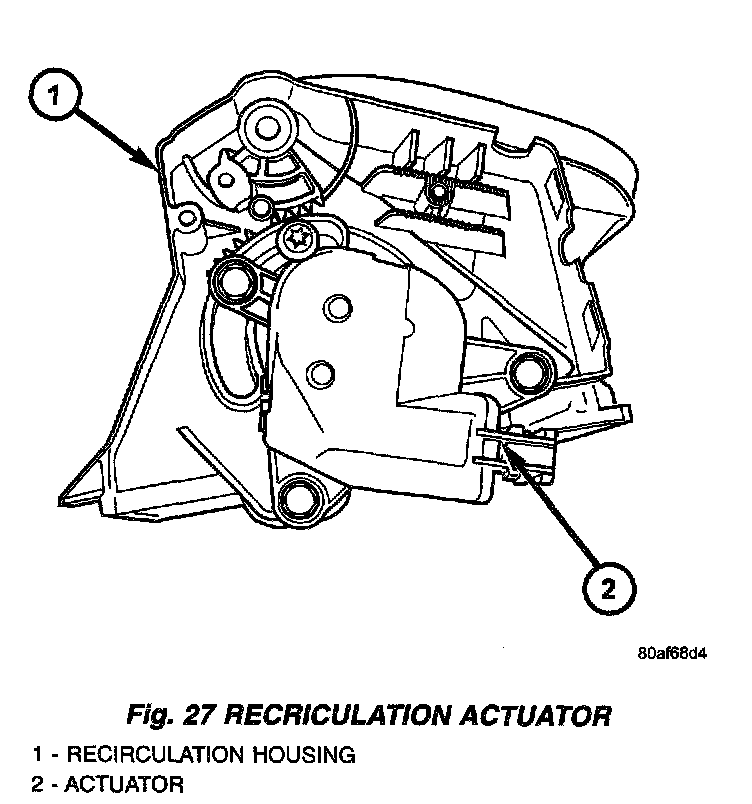

Fig.27 Recirculation Actuator:

3. Remove actuator retaining screws and pull actuator straight off. Note actuator shaft position for installation reference.
4. Disconnect the electrical connection.

INSTALLATION
1. Connect wire harness connector to the recirculation door actuator.

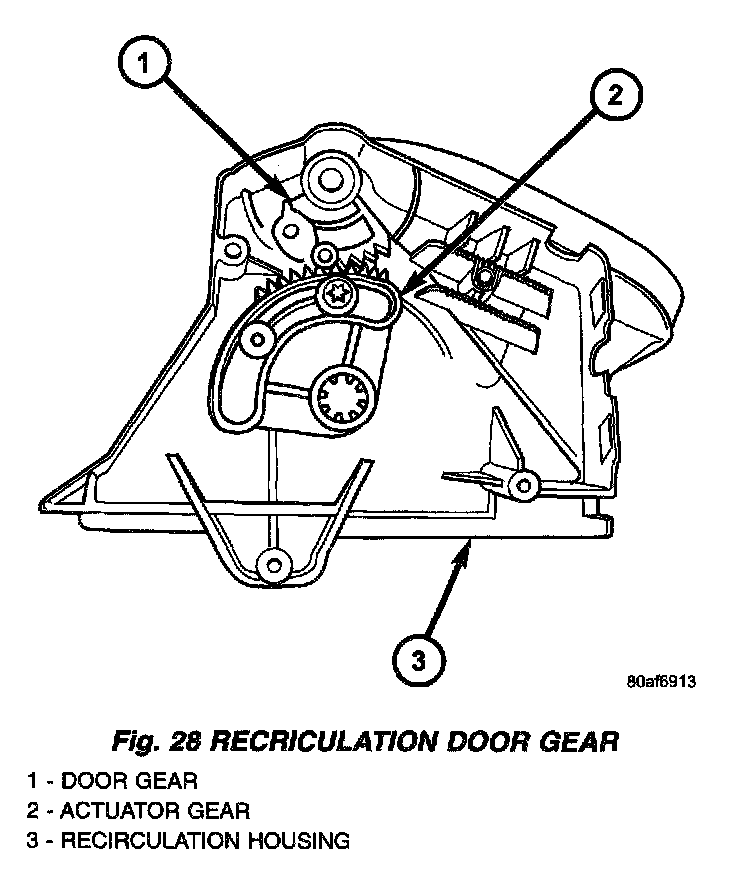

Fig.28 Recirculation Door Gear:

2. Install recirculation door actuator on the housing, making sure shaft spline is positioned properly with the gear.
3. Install and tighten actuator mounting screws.
4. Install the instrument panel.
5. Connect the negative battery cable.
