Engine Diagnosis - Performance

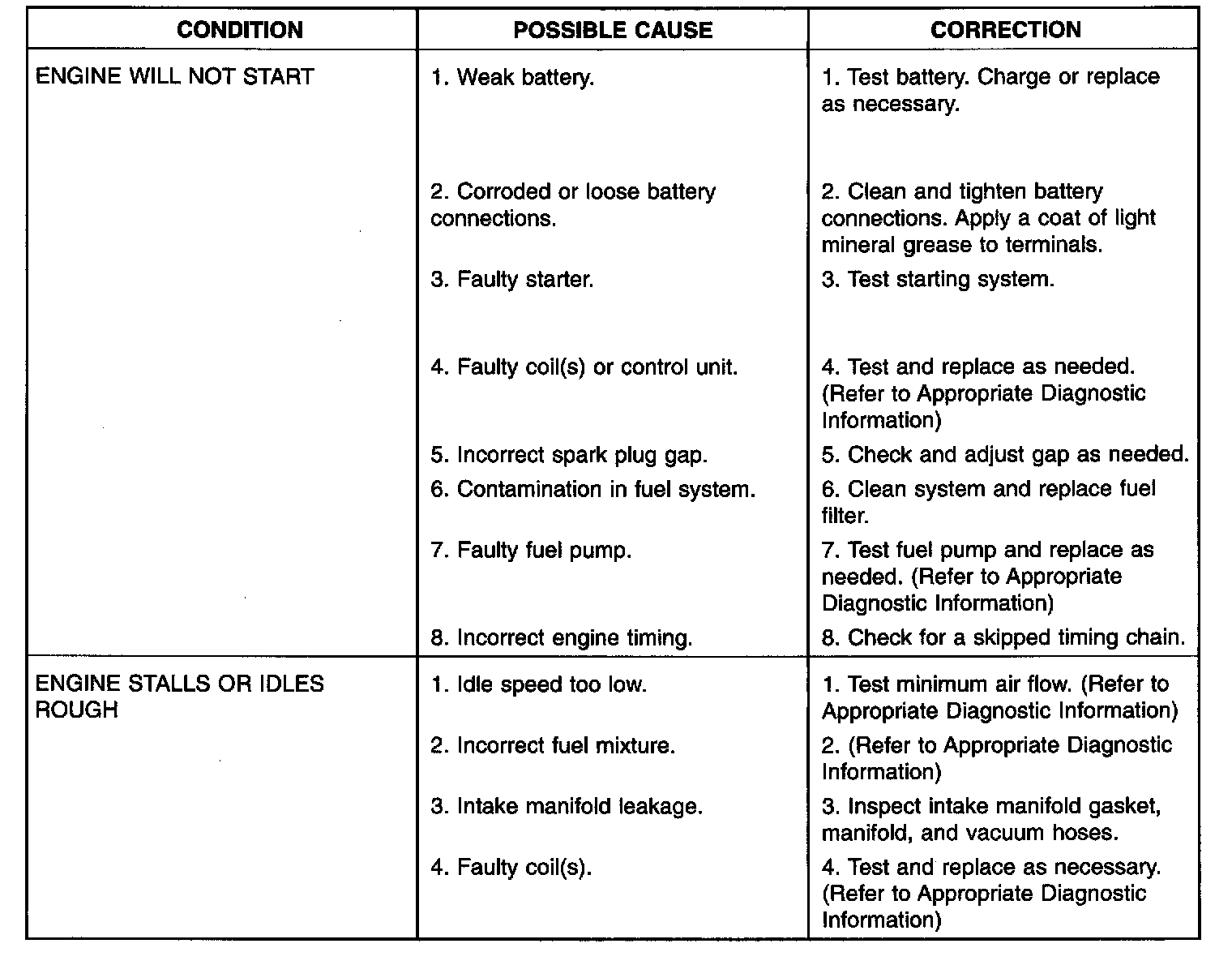

DIAGNOSIS AND TESTING - ENGINE PERFORMANCE Chart 1 of 2

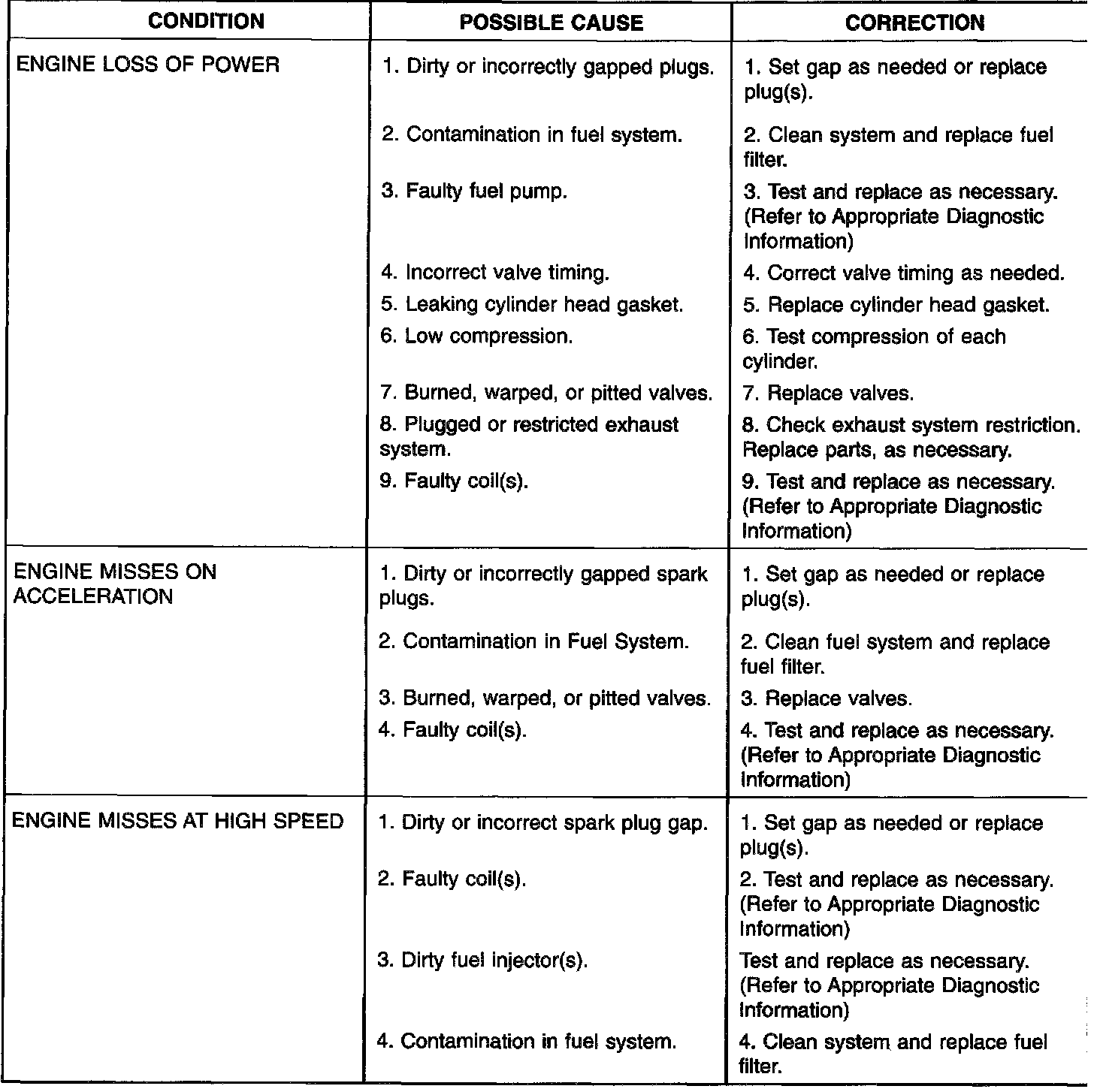

DIAGNOSIS AND TESTING - ENGINE PERFORMANCE Chart 2 of 2
